GYL25R-AWXEBW (2015)

Toyota Lexus Rx Series

Production Oct 2015 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

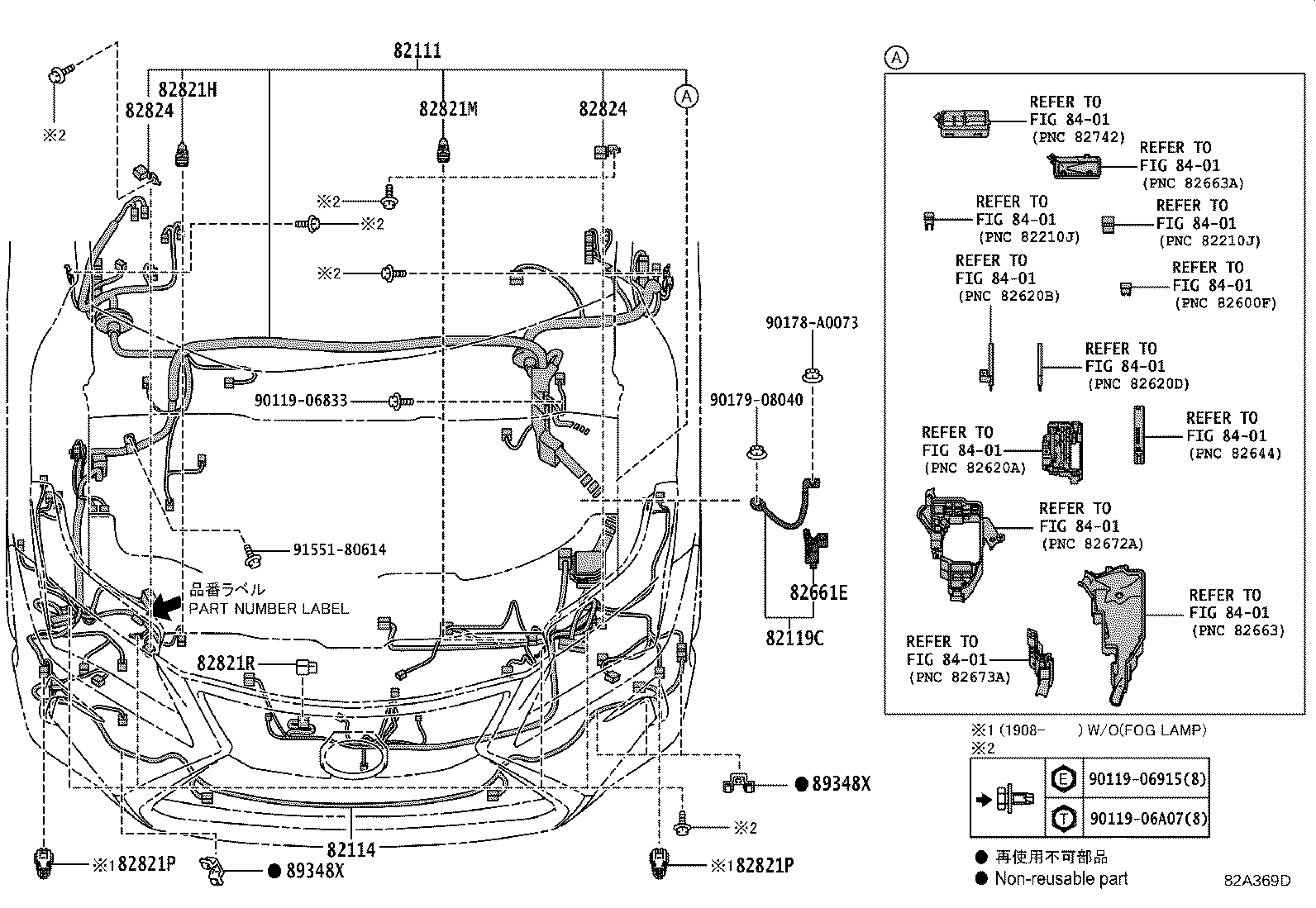

ILLUST NO. 1 OF10(1510- )GYL25..RHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82114 82119C 82661E 82821H 82821M 82821P 82821P 82821R 82824 82824 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 89348X 89348X 9011906833 9011906915 9011906A07 90178A0073 9017908040 9155180614
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-4D200

GYL25..RHD

 1
82111-4D210

GYL25..RHD

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)

 1
82111-4D211

GYL25..RHD

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)

 1
82111-4D201

GYL25..RHD

 1
82111-4D212

GYL25..RHD

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-48060

AGL2#..RHD;GYL25..RHD..ECO

CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)

 1
82114-48060

AGL2#,GGL25,GYL25

CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
82114-48060

AGL2#,GGL25,GYL25

CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)

 1
82119C - WIRE, ENGINE ROOM, NO.5
82119-48030

GYL25

 1
82661E - COVER, RELAY BLOCK, SIDE NO.2
82661-48150

GYL25

 1
82821H - COVER, CONNECTOR
82821-42040

AGL2#,GGL25,GYL25

 1
82821M - COVER, CONNECTOR
82821-30650

AGL2#,GGL25,GYL25

 1
82821R - COVER, CONNECTOR
82821-48310

AGL2#,GGL25,GYL25

 1
82821-48310

AGL2#,GGL25,GYL25

SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST)

 1
82824 - CONNECTOR, WIRING HARNESS
82824-48020

AGL2#,GGL25,GYL25

 2
82824 - CONNECTOR, WIRING HARNESS
82824-48020

AGL2#,GGL25,GYL25

 2
Common parts
90119-06833
90119-06915
90119-06A07
90178-A0073
90179-08040
91551-80614
Linked diagrams
8401

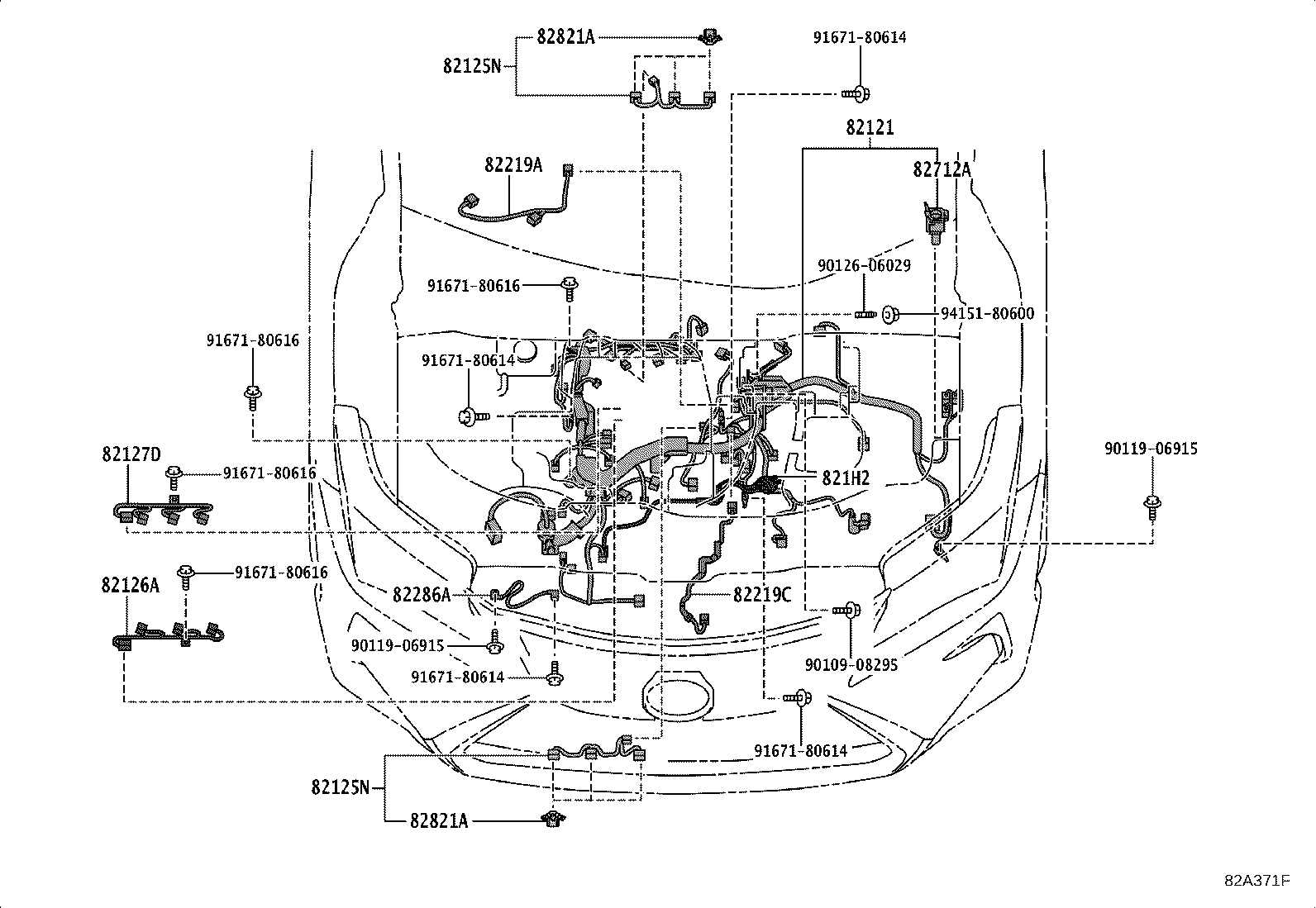

ILLUST NO. 2 OF10(1510- )GYL25

Click highlighted areas on diagram

ENGINE

diagram 82121 82125N 82125N 82126A 82127D 821H2 82219A 82219C 82286A 82712A 82821A 82821A 9010908295 9011906915 9011906915 9012606029 9167180614 9167180614 9167180614 9167180614 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-48600

GYL25

 1
82121-48601

GYL25

 1
82125N - WIRE, ENGINE, NO.5
82125-48060

GGL25,GYL25

 2
82125N - WIRE, ENGINE, NO.5
82125-48060

GGL25,GYL25

 2
82126A - WIRE, ENGINE, NO.6
82126-48020

GYL25

 1
82127D - WIRE, ENGINE, NO.7
82127-48020

GYL25

 1
821H2 - WIRE, HV AIR CONDITIONER
821H2-48010

GYL25

 1
82219A - WIRE, SENSOR
82219-48020

GGL25,GYL25

 1
82219C - WIRE, SENSOR
82219-48030

GGL25,GYL25

 1
82286A - WIRE, EARTH, NO.2
82286-48060

GYL25

 1
82712A - SUPPORT, WIRING HARNESS
82712-48120

AGL2#,GYL25

 1
82821A - COVER, CONNECTOR
82821-48240

GGL25,GYL25

 6
82821A - COVER, CONNECTOR
82821-48240

GGL25,GYL25

 6
Common parts
90109-08295
90119-06915
90126-06029
91671-80614
91671-80616

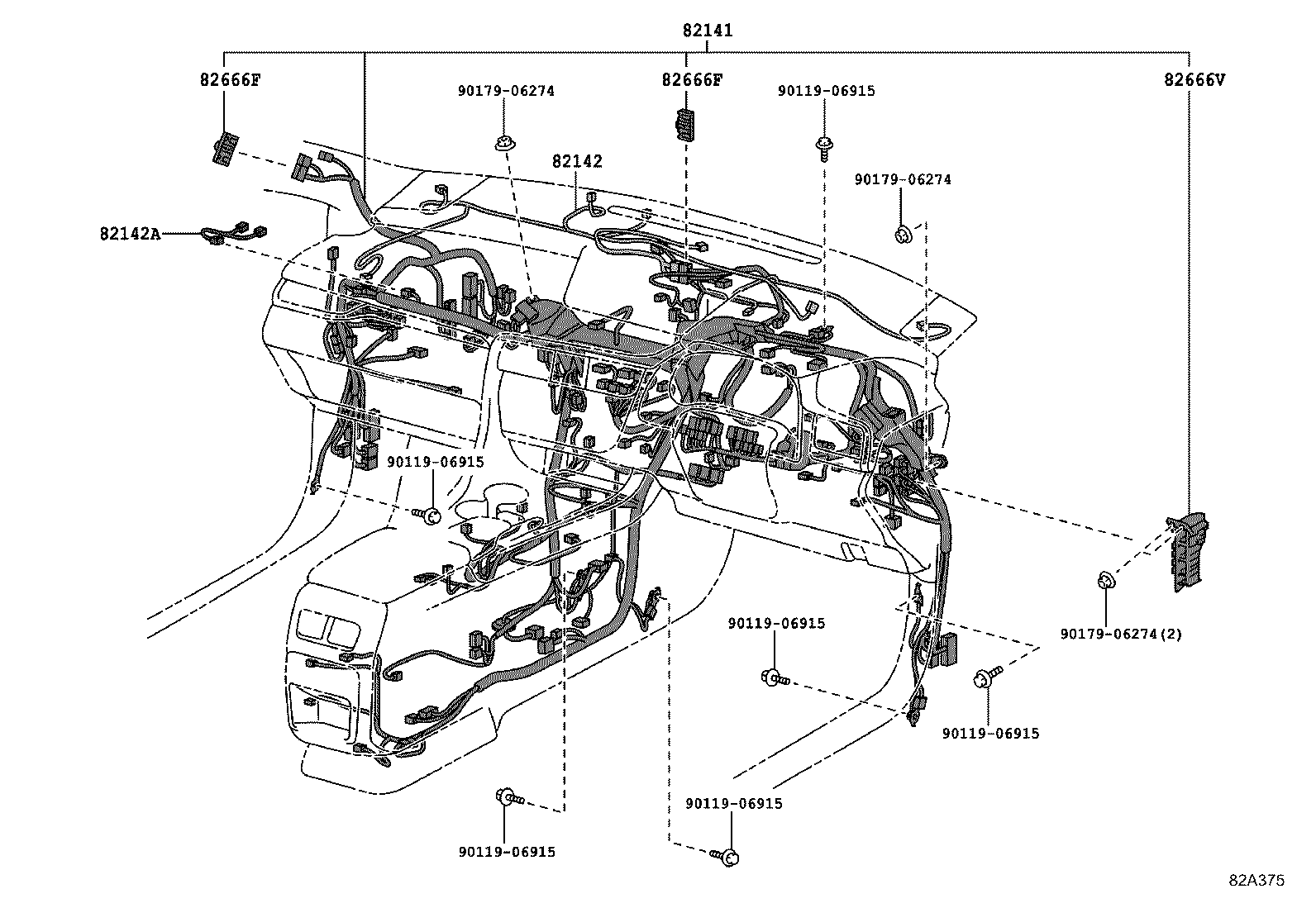

ILLUST NO. 3 OF10(1510- )GYL25..RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82142A 82666F 82666F 82666V 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 9017906274 9017906274 9017906274
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-4DG80

GYL25..RHD

AUDIO-*EMV&DVD

 1
82141-4DG60

GYL25..RHD

 1
82141-4DG61

GYL25..RHD

 1
82141-4DG81

GYL25..RHD

AUDIO-*EMV&DVD

 1
82141-4DP70

GYL25..RHD

 1
82141-4DP80

GYL25..RHD

AUDIO-*EMV&DVD

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-48K10

AGL2#,GYL25..RHD

SPEAKER-12SPEAKER

 1
82142-48J90

AGL2#,GYL25..RHD

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-48051

AGL2#,GYL25..RHD

 1
82666F - HOLDER, CONNECTOR NO.7
82666-60220

AGL2#,GGL25,GYL25

 2
82666F - HOLDER, CONNECTOR NO.7
82666-60220

AGL2#,GGL25,GYL25

 2
82666V - HOLDER, CONNECTOR NO.15
82666-48400

AGL2#,GGL25,GYL25

 1
Common parts
90119-06915
90179-06274

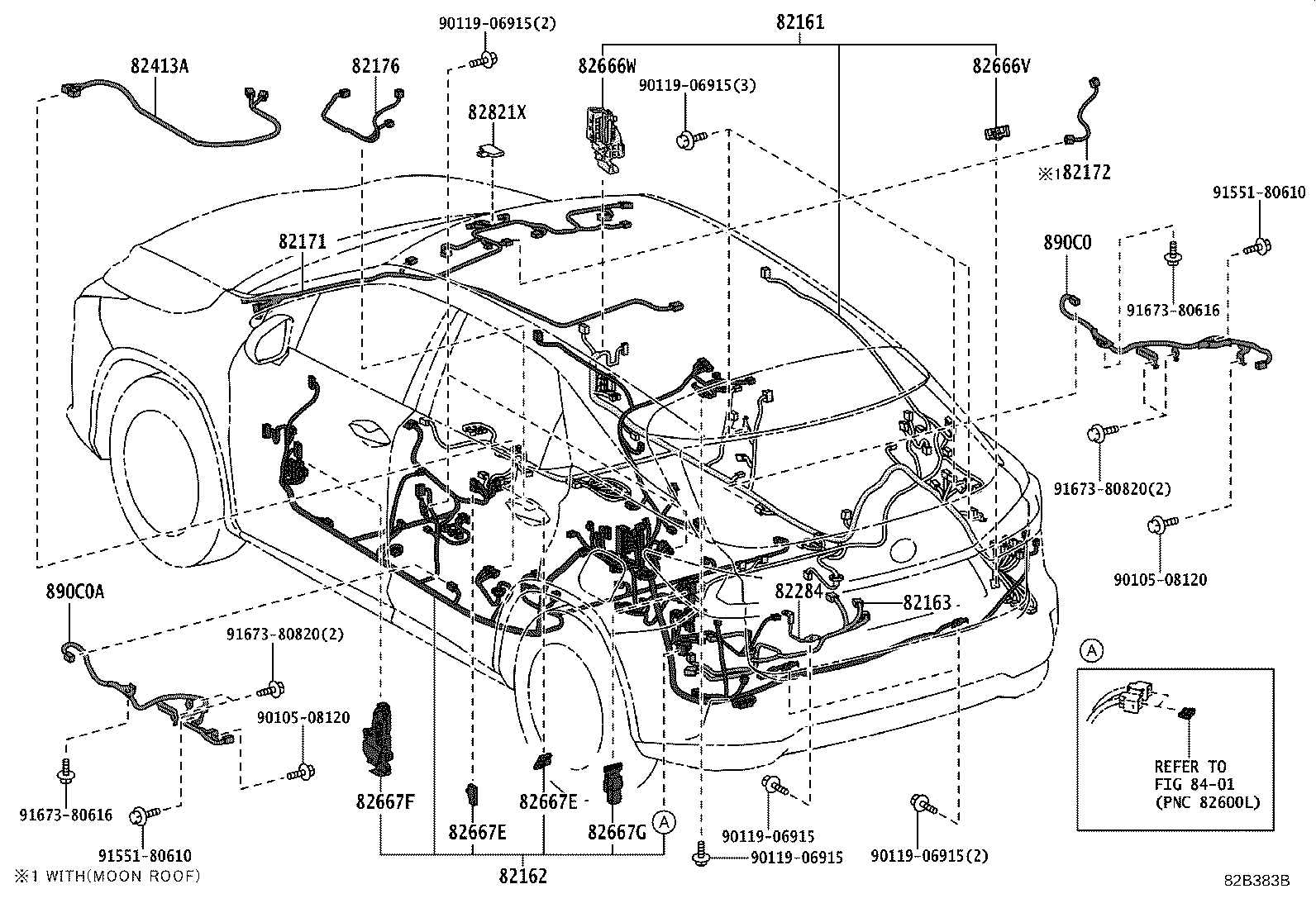

ILLUST NO. 5 OF10(1510- )GYL25

Click highlighted areas on diagram

FLOOR & ROOF

diagram 82161 82162 82163 82171 82172 82176 82284 82413A 82666V 82666W 82667E 82667E 82667F 82667G 82821X 8401 890C0 890C0A 9010508120 9010508120 9011906915 9011906915 9011906915 9011906915 9011906915 9155180610 9155180610 9167380616 9167380616 9167380820 9167380820
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-48Y80

GYL25..RHD

 1
82161-48Y81

GYL25..RHD

 1
82162 - WIRE, FLOOR, NO.2
82162-48Q61

GYL25..RHD

 1
82162-48Q60

GYL25..RHD

 1
82163 - WIRE, FLOOR, NO.3
82163-48170

GYL25

 1
82171 - WIRE, ROOF, NO.1
82171-48J00

AGL2#,GYL25..RHD

MOON ROOF-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR)

 1
82171-48G70

AGL2#,GYL25..RHD

INTERMITTENT WIPER-WITH(RAIN SENSOR)

 1
82171-48G90

AGL2#,GYL25..RHD

MOON ROOF-WITH

 1
82171-48G60

AGL2#,GYL25..RHD

 1
82171-48J10

AGL2#,GYL25..RHD

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&MOON ROOF-WITH&INTERMITTENT WIPER-WITH(RAINSENSOR)

 1
82171-48G80

AGL2#,GYL25..RHD

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&INTERMITTENT WIPER-WITH(RAIN SENSOR)

 1
82171-48J11

AGL2#,GYL25..RHD

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&MOON ROOF-WITH&INTERMITTENT WIPER-WITH(RAINSENSOR)

 1
82171-48G81

AGL2#,GYL25..RHD

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&INTERMITTENT WIPER-WITH(RAIN SENSOR)

 1
82171-48J11

AGL2#,GYL25..RHD

MOON ROOF-WITH

 1
82171-48G81

AGL2#,GYL25..RHD

 1
82171-48G82

AGL2#,GYL25..RHD

 1
82171-48J12

AGL2#,GYL25..RHD

MOON ROOF-WITH

 1
82176 - WIRE, REAR CONSOLE BOX
82176-48100

AGL2#,GGL25,GYL25

 1
82284 - WIRE, EARTH
82284-48060

GYL25

 1
82413A - WIRE, FUEL TANK
82413-48070

GYL25

 1
82666V - HOLDER, CONNECTOR NO.15
82666-48400

AGL2#,GGL25,GYL25

 1
82666W - HOLDER, CONNECTOR NO.16
82666-48410

AGL2#,GGL25,GYL25

 1
82666-48450

AGL2#,GGL25,GYL25

 1
82667E - HOLDER, CONNECTOR, NO.20
82666-48370

AGL2#,GGL25,GYL25

 2
82667E - HOLDER, CONNECTOR, NO.20
82666-48370

AGL2#,GGL25,GYL25

 2
82667F - HOLDER, CONNECTOR, NO.21
82666-48420

AGL2#,GGL25,GYL25

 1
82667G - HOLDER, CONNECTOR, NO.22
82666-48430

AGL2#,GGL25,GYL25

 1
890C0 - WIRE ASSY, PARKING BRAKE, NO.1
890C0-48010

AGL2#,GGL25,GYL25

 1
890C0A - WIRE ASSY, PARKING BRAKE, NO.2
890C0-48030

GYL25

 1
Common parts
90105-08120
90119-06915
91551-80610
91673-80616
91673-80820
Linked diagrams
8401

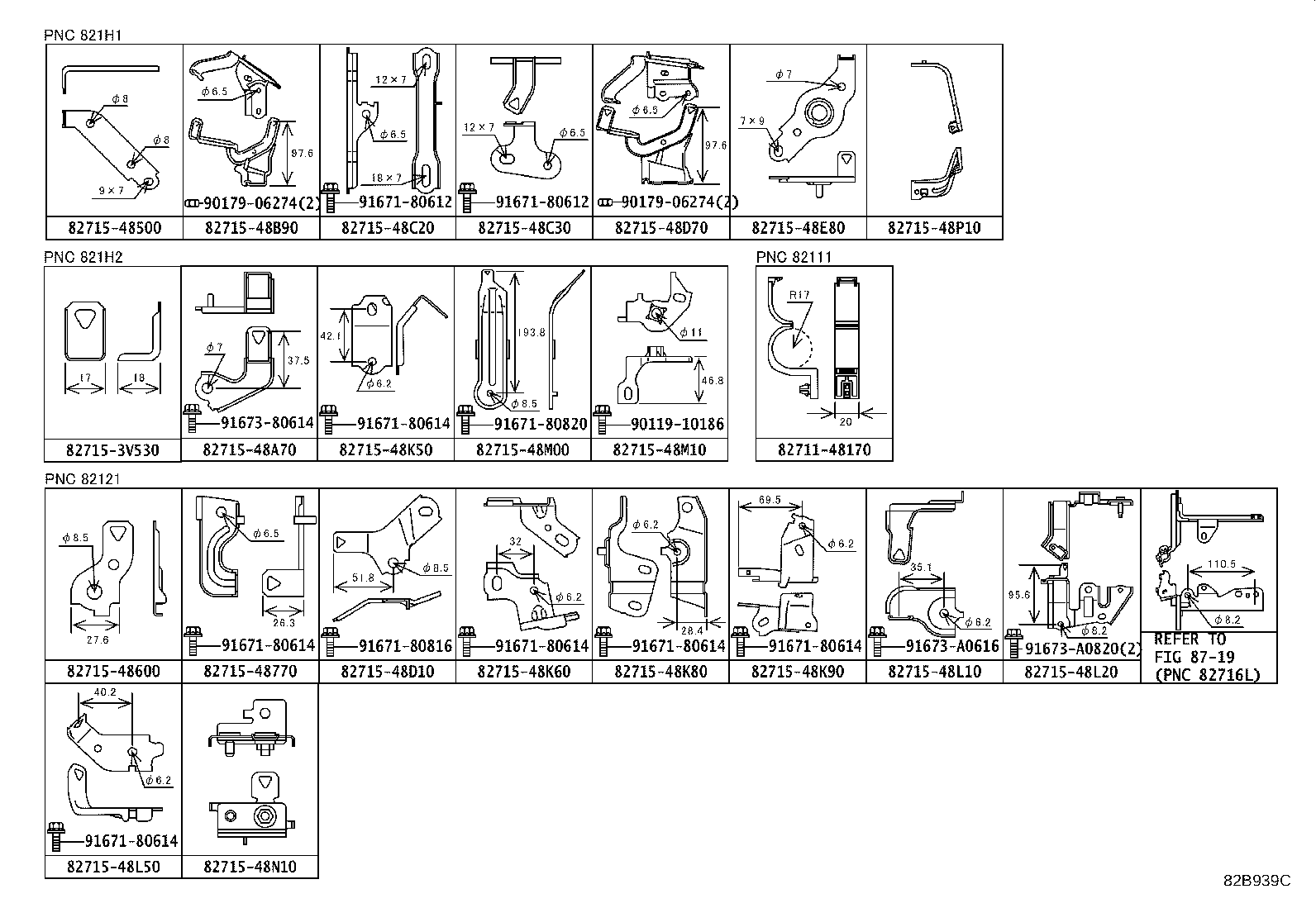

ILLUST NO. 8 OF10(1510- )GYL25

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271148170 827153V530 8271548500 8271548600 8271548770 8271548A70 8271548B90 8271548C20 8271548C30 8271548D10 8271548D70 8271548E80 8271548K50 8271548K60 8271548K80 8271548K90 8271548L10 8271548L20 8271548L50 8271548M00 8271548M10 8271548N10 8271548P10 8719 9011910186 9017906274 9017906274 9167180612 9167180612 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180816 9167180820 9167380614 91673A0616 91673A0820
Part # Description Qty Price
Common parts
82711-48170
82715-3V530
82715-48500
82715-48600
82715-48770
82715-48A70
82715-48B90
82715-48C20
82715-48C30
82715-48D10
82715-48D70
82715-48E80
82715-48K50
82715-48K60
82715-48K80
82715-48K90
82715-48L10
82715-48L20
82715-48L50
82715-48M00
82715-48M10
82715-48N10
82715-48P10
90119-10186
90179-06274
91671-80612
91671-80614
91671-80816
91671-80820
91673-80614
91673-A0616
91673-A0820
Linked diagrams
8719

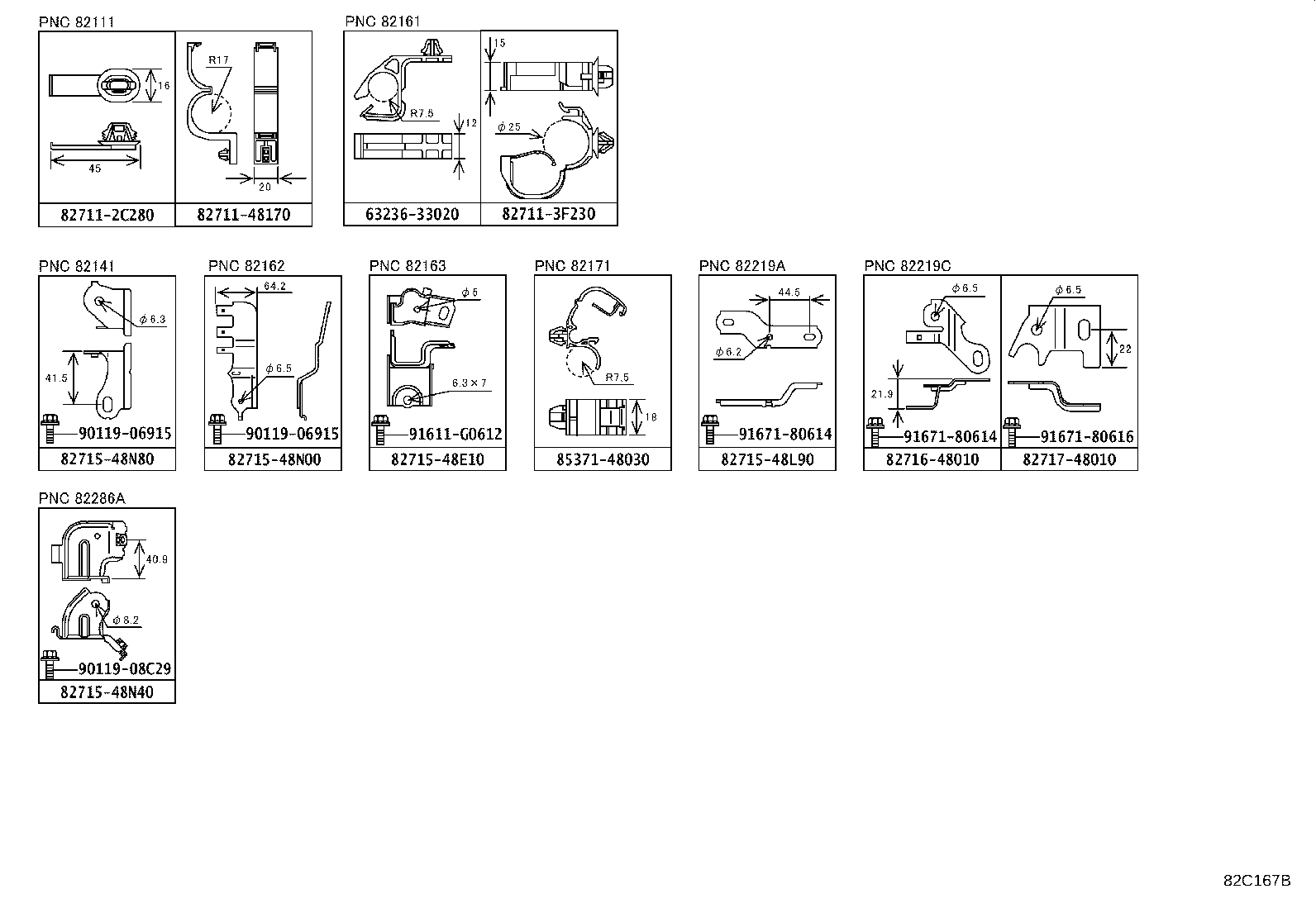

ILLUST NO. 8 OF10(1510- )GYL25

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 6323633020 827112C280 827113F230 8271148170 8271548E10 8271548L90 8271548N00 8271548N40 8271548N80 8271648010 8271748010 8537148030 9011906915 9011906915 9011908C29 91611G0612 9167180614 9167180614 9167180616
Part # Description Qty Price
Common parts
63236-33020
82711-2C280
82711-3F230
82711-48170
82715-48E10
82715-48L90
82715-48N00
82715-48N40
82715-48N80
82716-48010
82717-48010
85371-48030
90119-06915
90119-08C29
91611-G0612
91671-80614
91671-80616

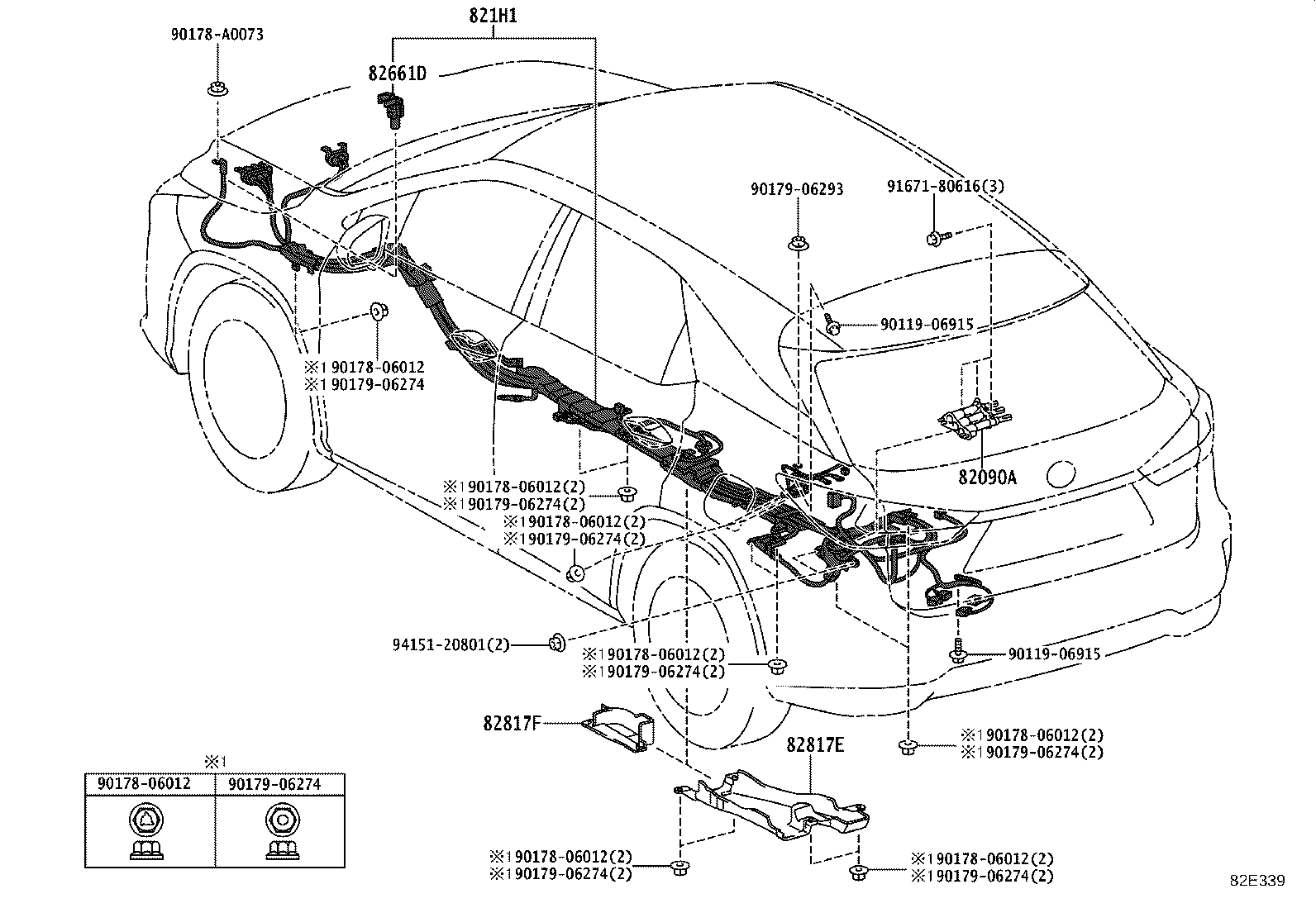

ILLUST NO. 6 OF10(1510- )GYL25

Click highlighted areas on diagram

HIGH VOLTAGE CABLE

diagram 82090A 821H1 82661D 82817E 82817F 9011906915 9011906915 9017806012 9017806012 9017806012 9017806012 9017806012 9017806012 9017806012 9017806012 90178A0073 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906293 9167180616 9415120801
Part # Description Qty Price
82090A - WIRE ASSY, EXTENSION
82090-48010

GYL25

 1
82090-48011

GYL25

 1
821H1 - WIRE, FLOOR UNDER
821H1-48010

GYL25

 1
821H1-48011

GYL25

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-48160

GYL25

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-48R40

GYL25

 1
82817-0E340

GYL25

 1
Common parts
90119-06915
90178-06012
90178-A0073
90179-06274
90179-06293
91671-80616
94151-20801
