GYL25R-AWXEBW (2015)
Toyota Lexus Rx Series

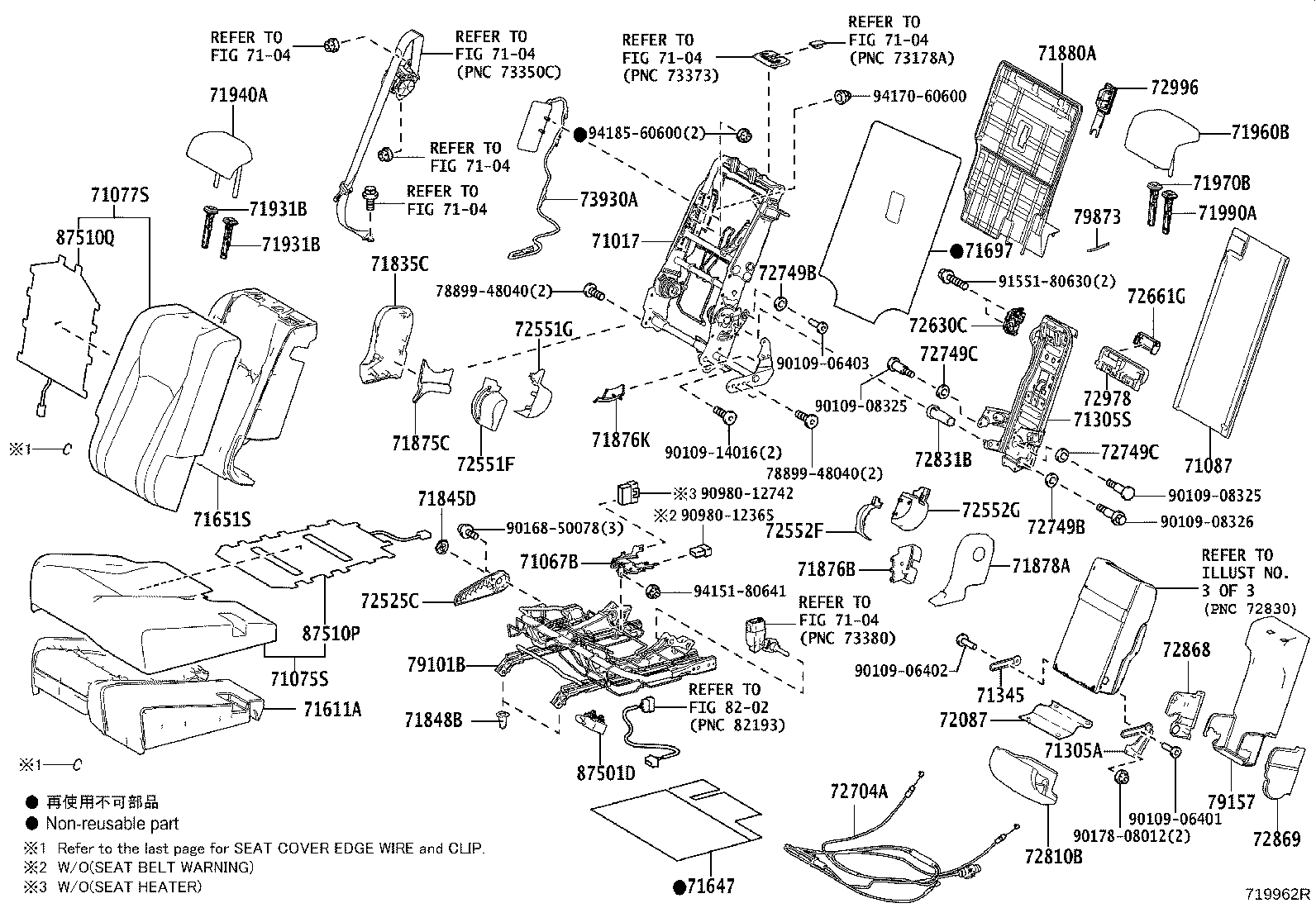

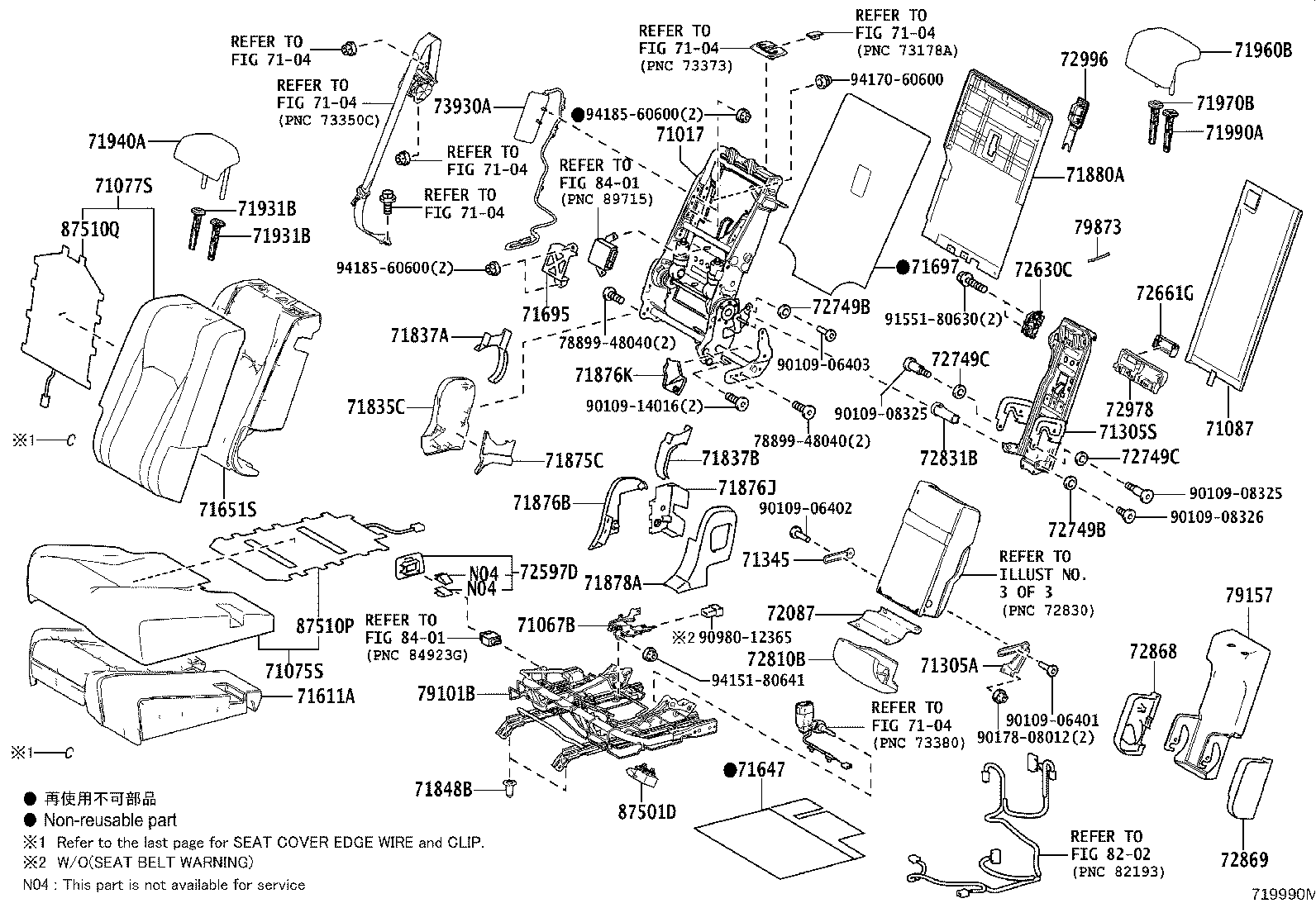

ILLUST NO. 1 OF 3(1509-1908)
W(MANUAL SEAT) RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-48230 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71067B - PLATE SUB-ASSY, REAR SEAT LEG, RH | ||||
| 71067-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-48620C4 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71075-48620A4 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71075-48630C4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71075-48630A5 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71075-48630E4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71075-48630F4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-48A10A6 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71077-48A10C6 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71077-48A20C6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71077-48A20A6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71077-48A20E6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71077-48A20F6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-48100C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71087-48100E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-48130 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-48310 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-48020 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-48240 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71835C - MOULDING, REAR SEAT BACK, RH | ||||
| 71835-48030E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 71835-48030C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71835-48030A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71845D - CAP, REAR SEAT COVER, RH | ||||
| 71845-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71845-48040E1 |
AGL2#,GGL25,GYL25 NOBLE BROWN,TRIM04,5#,6# |
1 | ||
| 71845-48040C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-76010 |
AGL2#,GGL25,GYL25 |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48110E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 71875-48110C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71875-48110A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-48100C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71876-48100A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71876-48100E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-48150E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71876-48150A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71876-48150C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-48110C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71878-48110E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71878-48110A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-48290C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71880-48290E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48A00A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
2 | ||
| 71940-48A00C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
2 | ||
| 71940-48A10A0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
2 | ||
| 71940-48A10C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
2 | ||
| 71940-48A10E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
2 | ||
| 71940-48A10F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-48540C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71960-48540A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71960-48550A0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71960-48550C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71960-48550E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71960-48550F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71970B - SUPPORT ASSY, REAR SEAT HEADREST, RH | ||||
| 71970-48120C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71970-48120A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71970-48120E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5# |
1 | ||
| 71970-48120C1 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71990A - SUPPORT ASSY, REAR SEAT HEADREST, LH | ||||
| 71990-48010C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71990-48010A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71990-48010E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5# |
1 | ||
| 71990-48010C1 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 72087 - COVER, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72087-48230 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-48040C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72525-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 72525-48040E1 |
AGL2#,GGL25,GYL25 NOBLE BROWN,TRIM04,5#,6# |
1 | ||
| 72551F - COVER, RECLINING LINK, RH NO.1 | ||||
| 72551-48070 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72551G - COVER, RECLINING LINK, RH NO.2 | ||||
| 72551-48080 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72552F - COVER, RECLINING LINK, LH NO.1 | ||||
| 72552-48070 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72552G - COVER, RECLINING LINK, LH NO.2 | ||||
| 72552-48080 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72661G - LEVER, REAR SEAT BACK LOCK | ||||
| 72661-48040C0 |
AGL20;GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72661-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 72661-48040E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-48140 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72749B - SPACER, REAR SEAT RECLINING, NO.1 | ||||
| 72749-42010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72749B - SPACER, REAR SEAT RECLINING, NO.1 | ||||
| 72749-42010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72749C - SPACER, REAR SEAT RECLINING, NO.2 | ||||
| 72749-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72749C - SPACER, REAR SEAT RECLINING, NO.2 | ||||
| 72749-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72810B - ARMREST ASSY, NO.1 SEAT | ||||
| 72810-48310C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 72810-48310A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 72810-48320C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 72810-48320E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 72810-48320F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 72810-48320A1 |
GYL25..ECO SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-48040C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72868-48040A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 72868-48040E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-48020A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 72869-48020E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 72869-48020C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72978 - COVER, NO.2 CENTER SEAT BACK | ||||
| 72978-48040C0 |
AGL20;GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72978-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 72978-48040E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-78020E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5# |
1 | ||
| 72996-78020C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 73930A - AIR BAG ASSY, REAR SEAT, RH | ||||
| 73930-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-48090 |
GYL25 |
1 | ||
| 79157 - COVER, NO.1 SEAT BACK | ||||
| 79157-48080A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 79157-48080E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 79157-48080C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 79873 - WIRE, FOLD SEAT BACK | ||||
| 79873-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 78899-48040 | ||||
| 90109-06401 | ||||
| 90109-06402 | ||||
| 90109-06403 | ||||
| 90109-08325 | ||||
| 90109-08326 | ||||
| 90109-14016 | ||||
| 90168-50078 | ||||
| 90178-08012 | ||||
| 90980-12365 | ||||
| 90980-12742 | ||||
| 91551-80630 | ||||
| 94151-80641 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(1509-1908)
W(POWER SEAT) LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-48170 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71068C - PLATE SUB-ASSY, REAR SEAT LEG, LH | ||||
| 71068-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-48560A5 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71076-48550C2 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71076-48550A3 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71076-48560C4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71076-48560F4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71076-48560E4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-48810C6 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71078-48810A6 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71078-48820A6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71078-48820C6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71078-48820E6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71078-48820F6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-48260 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71647G - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-48210 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71697C - PROTECTOR, REAR SEAT BACK EDGE LH | ||||
| 71697-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71836C - MOULDING, REAR SEAT BACK, LH | ||||
| 71836-48030C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71836-48030E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 71836-48030A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-76010 |
AGL2#,GGL25,GYL25 |
2 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48120E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71875-48120C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71875-48120A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-48080A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71879-48080E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71879-48080C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-48260E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 71890-48260C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48A00A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
2 | ||
| 71940-48A00C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
2 | ||
| 71940-48A10A0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
2 | ||
| 71940-48A10C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
2 | ||
| 71940-48A10E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
2 | ||
| 71940-48A10F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
2 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-78020C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72996-78020E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73940A - AIR BAG ASSY, REAR SEAT, LH | ||||
| 73940-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-48100 |
GYL25 |
1 | ||
| Common parts | ||||
| 78899-48040 | ||||
| 90980-12365 | ||||
| 94151-80641 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1509-1908)
W(MANUAL SEAT) LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-48170 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71068C - PLATE SUB-ASSY, REAR SEAT LEG, LH | ||||
| 71068-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-48560A5 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71076-48550C2 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71076-48550A3 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71076-48560C4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71076-48560F4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71076-48560E4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-48810C6 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71078-48810A6 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71078-48820A6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71078-48820C6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71078-48820E6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71078-48820F6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-48260 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71647G - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-48210 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71697C - PROTECTOR, REAR SEAT BACK EDGE LH | ||||
| 71697-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71836C - MOULDING, REAR SEAT BACK, LH | ||||
| 71836-48030C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71836-48030E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 71836-48030A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71846E - CAP, REAR SEAT COVER, LH | ||||
| 71845-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71845-48040E1 |
AGL2#,GGL25,GYL25 NOBLE BROWN,TRIM04,5#,6# |
1 | ||
| 71845-48040C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-76010 |
AGL2#,GGL25,GYL25 |
2 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48120E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71875-48120C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71875-48120A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-48130E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 71876-48130C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71876-48130A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-48080A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71879-48080E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71879-48080C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-48260E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 71890-48260C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48A00A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
2 | ||
| 71940-48A00C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
2 | ||
| 71940-48A10A0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
2 | ||
| 71940-48A10C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
2 | ||
| 71940-48A10E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
2 | ||
| 71940-48A10F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
2 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 72526-48040E1 |
AGL2#,GGL25,GYL25 NOBLE BROWN,TRIM04,5#,6# |
1 | ||
| 72526-48040C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72551H - COVER, RECLINING LINK, RH NO.3 | ||||
| 72551-48070 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72551J - COVER, RECLINING LINK, RH NO.4 | ||||
| 72551-48080 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72552H - COVER, RECLINING LINK, LH NO.3 | ||||
| 72552-48070 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72552J - COVER, RECLINING LINK, LH NO.4 | ||||
| 72552-48080 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-48150 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-78020C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72996-78020E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73940A - AIR BAG ASSY, REAR SEAT, LH | ||||
| 73940-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-48100 |
GYL25 |
1 | ||
| Common parts | ||||
| 78899-48040 | ||||
| 90168-50078 | ||||
| 90980-12365 | ||||
| 90980-12742 | ||||
| 94151-80641 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 3(1509-1908)
W(POWER SEAT) RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-48230 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71067B - PLATE SUB-ASSY, REAR SEAT LEG, RH | ||||
| 71067-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-48620C4 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71075-48620A4 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71075-48630C4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71075-48630A5 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71075-48630E4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71075-48630F4 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-48A10A6 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71077-48A10C6 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71077-48A20C6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71077-48A20A6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71077-48A20E6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71077-48A20F6 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-48100C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71087-48100E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-48130 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-48310 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-48020 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-48240 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 71835C - MOULDING, REAR SEAT BACK, RH | ||||
| 71835-48030E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 71835-48030C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71835-48030A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-76010 |
AGL2#,GGL25,GYL25 |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48110E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 71875-48110C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71875-48110A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-48100C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71876-48100A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71876-48100E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-48150E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71876-48150A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71876-48150C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-48110C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71878-48110E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 71878-48110A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-48290C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 71880-48290E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47020C0 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A4 |
AGL2#,GGL25,GYL25 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47020A4 |
AGL2#,GGL25,GYL25 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-47020L1 |
AGL2#,GGL25,GYL25 W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71930-47020C4 |
AGL2#,GGL25,GYL25 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020L1 |
AGL2#,GGL25,GYL25 W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5#,6# |
2 | ||
| 71931-47020C4 |
AGL2#,GGL25,GYL25 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48A00A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
2 | ||
| 71940-48A00C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
2 | ||
| 71940-48A10A0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
2 | ||
| 71940-48A10C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
2 | ||
| 71940-48A10E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
2 | ||
| 71940-48A10F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-48540C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71960-48540A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71960-48550A0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 71960-48550C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 71960-48550E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 71960-48550F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 71970B - SUPPORT ASSY, REAR SEAT HEADREST, RH | ||||
| 71970-48120C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71970-48120A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71970-48120E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5# |
1 | ||
| 71970-48120C1 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71990A - SUPPORT ASSY, REAR SEAT HEADREST, LH | ||||
| 71990-48010C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 71990-48010A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 71990-48010E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM5# |
1 | ||
| 71990-48010C1 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 72087 - COVER, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72087-48230 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72661G - LEVER, REAR SEAT BACK LOCK | ||||
| 72661-48040C0 |
AGL20;GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72661-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 72661-48040E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 72749B - SPACER, REAR SEAT RECLINING, NO.1 | ||||
| 72749-42010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72749B - SPACER, REAR SEAT RECLINING, NO.1 | ||||
| 72749-42010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72749C - SPACER, REAR SEAT RECLINING, NO.2 | ||||
| 72749-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72749C - SPACER, REAR SEAT RECLINING, NO.2 | ||||
| 72749-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72810B - ARMREST ASSY, NO.1 SEAT | ||||
| 72810-48310C0 |
AGL2#,GGL25,GYL25 BLACK,TRIM2# |
1 | ||
| 72810-48310A0 |
AGL2#,GGL25,GYL25 IVORY,TRIM0# |
1 | ||
| 72810-48320C0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),BLACK,TRIM2# |
1 | ||
| 72810-48320E0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),NOBLE BROWN,TRIM4# |
1 | ||
| 72810-48320F0 |
AGL2#,GGL25,GYL25 SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),TOPAZ BROWN,TRIM5# |
1 | ||
| 72810-48320A1 |
GYL25..ECO SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-48010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-48040C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72868-48040A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 72868-48040E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-48020A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 72869-48020E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 72869-48020C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72978 - COVER, NO.2 CENTER SEAT BACK | ||||
| 72978-48040C0 |
AGL20;GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 72978-48040A0 |
GYL25..ECO IVORY,TRIM04 |
1 | ||
| 72978-48040E0 |
GYL25..ECO NOBLE BROWN,TRIM04,5# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-78020E0 |
GYL25..ECO NOBLE BROWN,TRIM0#,5# |
1 | ||
| 72996-78020C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 73930A - AIR BAG ASSY, REAR SEAT, RH | ||||
| 73930-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-48090 |
GYL25 |
1 | ||
| 79157 - COVER, NO.1 SEAT BACK | ||||
| 79157-48080A0 |
GYL25..ECO IVORY,TRIM0# |
1 | ||
| 79157-48080E0 |
GYL25..ECO NOBLE BROWN,TRIM5# |
1 | ||
| 79157-48080C0 |
GYL25..ECO BLACK,TRIM2#,4# |
1 | ||
| 79873 - WIRE, FOLD SEAT BACK | ||||
| 79873-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 78899-48040 | ||||
| 90109-06401 | ||||
| 90109-06402 | ||||
| 90109-06403 | ||||
| 90109-08325 | ||||
| 90109-08326 | ||||
| 90109-14016 | ||||
| 90178-08012 | ||||
| 90980-12365 | ||||
| 91551-80630 | ||||
| 94151-80641 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
