GYL25L-AWXGBW (2019)

Toyota Lexus Rx Series

Production Aug 2019 - Sep 9999
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2GRFXS

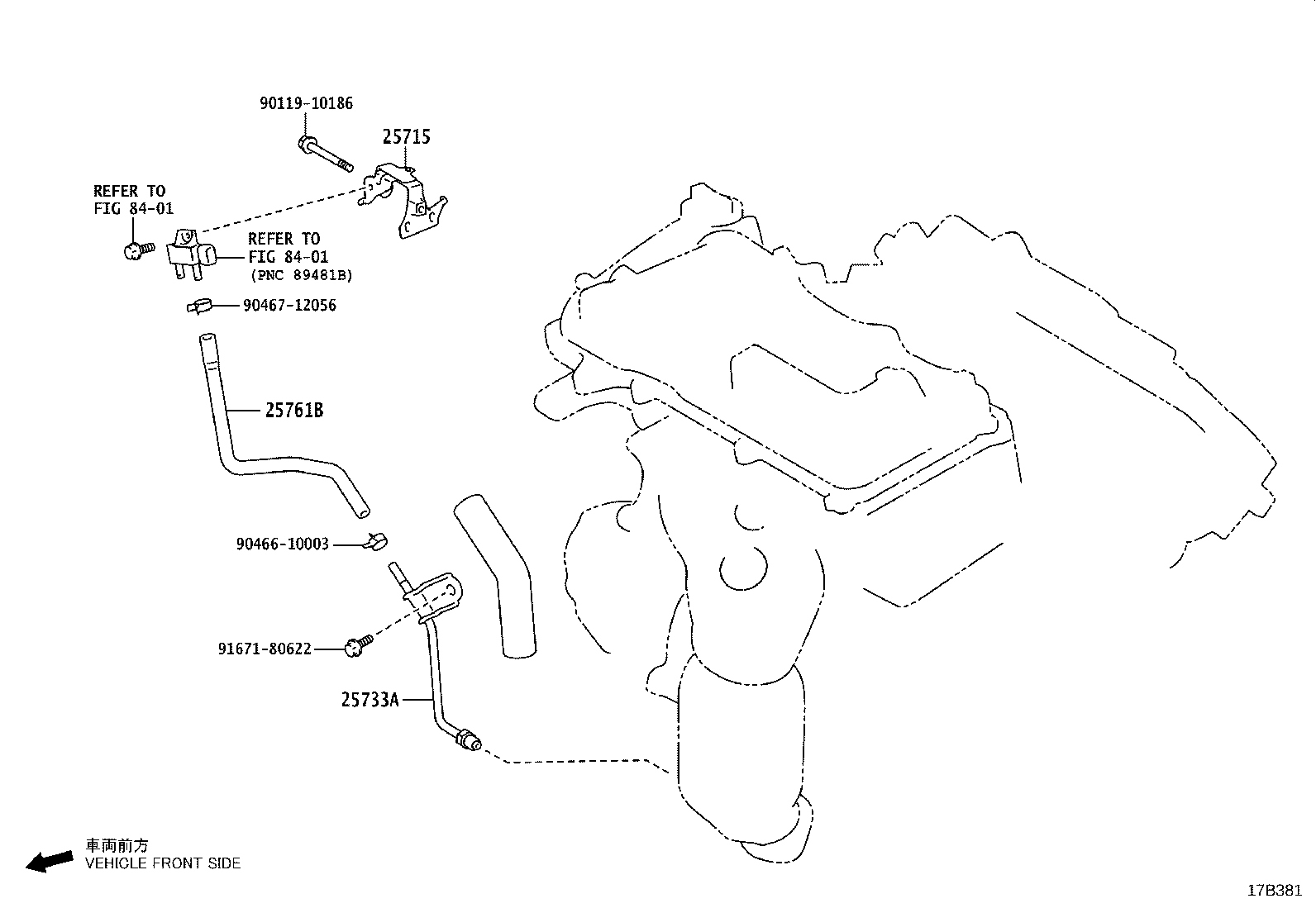

Click highlighted areas on diagram

W(GPF)

diagram 25715 25733A 25761B 8401 8401 9011910186 9046610003 9046712056 9167180622
Part # Description Qty Price
25715 - BRACKET, EMISSION CONTROL VALVE
25715-31030

2GRFXS..GYL25..LHD

EXHAUST EMISSION CONTROL-EURO 6 WITHOUT(ON BOARD DIAGNOSIS)

 1
25715-31030

2GRFXS..GYL25

 1
25715-31030

2GRFXS..GYL25..LHD

EXHAUST EMISSION CONTROL-EURO 6

 1
25733A - PIPE, VACUUM, NO.1
25733-31020

2GRFXS..GYL25..LHD

EXHAUST EMISSION CONTROL-EURO 6 WITHOUT(ON BOARD DIAGNOSIS)

 1
25733-31020

2GRFXS..GYL25

 1
25733-31020

2GRFXS..GYL25..LHD

EXHAUST EMISSION CONTROL-EURO 6

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-31020

2GRFXS..GYL25

 1
25761-31020

2GRFXS..GYL25..LHD

EXHAUST EMISSION CONTROL-EURO 6 WITHOUT(ON BOARD DIAGNOSIS)

 1
25761-31020

2GRFXS..GYL25..LHD

EXHAUST EMISSION CONTROL-EURO 6

 1
Common parts
90119-10186
90466-10003
90467-12056
91671-80622
Linked diagrams
8401
