GGL25L-AWZGBW (2019)
Toyota Lexus Rx Series

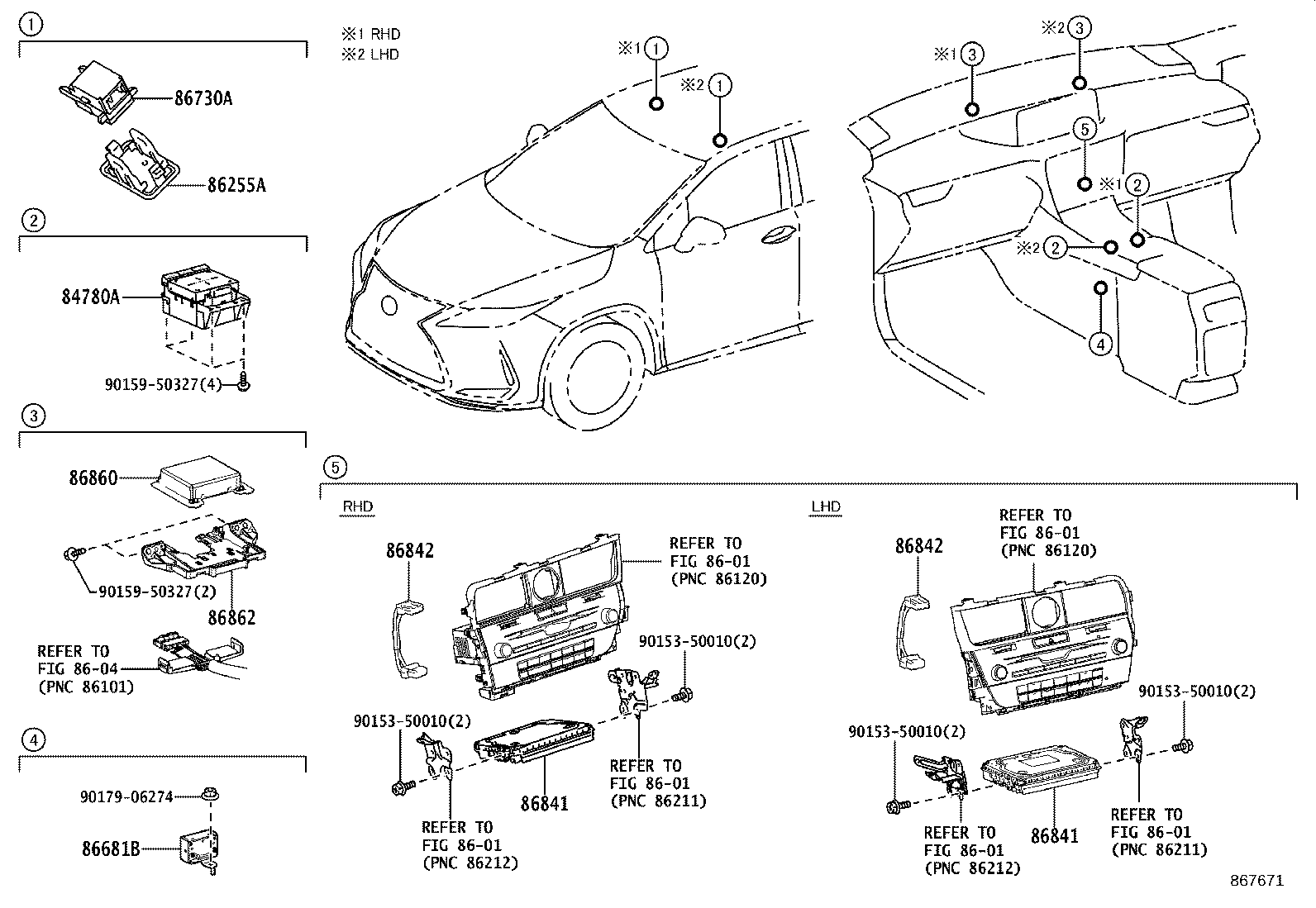

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84780A - CONTROLLER ASSY, REMOTE OPERATION | ||||
| 84780-48250 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 84780-48240 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86255A - CASE, MICROPHONE, NO.1 | ||||
| 86255-78010A0 |
AGL2#,GGL25,GYL25 ECRU,TRIM0#,5#,6# |
1 | ||
| 86255-78010B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM1#,20,21,22,23,24,4#,8# |
1 | ||
| 86255-78010C1 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM25,26,27,28,3# |
1 | ||
| 86681B - DIVIDER, ANTENNA | ||||
| 86681-48080 |
GGL25 |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-45030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 86730-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-0W230 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86840-0W050 |
AGL2#,GGL25,GYL25..LHD AUDIO-L1.5/CD |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-0W230 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86840-0W050 |
AGL2#,GGL25,GYL25..LHD AUDIO-L1.5/CD |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-78151 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86842-78160 |
AGL2#,GGL25,GYL25..LHD AUDIO-L1.5/CD |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-78151 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86842-78160 |
AGL2#,GGL25,GYL25..LHD AUDIO-L1.5/CD |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-78010 |
GGL25 AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86860-78010 |
GGL25 ADRIA(SLOVENIA) SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86860-78010 |
GGL25 MONGOLIA SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86860-78010 |
GGL25 SERBIA SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86860-78010 |
GGL25 UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86860-78010 |
GGL25 GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-42010 |
GGL25 ADRIA(SLOVENIA) SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86862-42010 |
GGL25 UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86862-42010 |
GGL25 AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86862-42010 |
GGL25 SERBIA SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86862-42010 |
GGL25 MONGOLIA SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86862-42010 |
GGL25 GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8604 | ||||

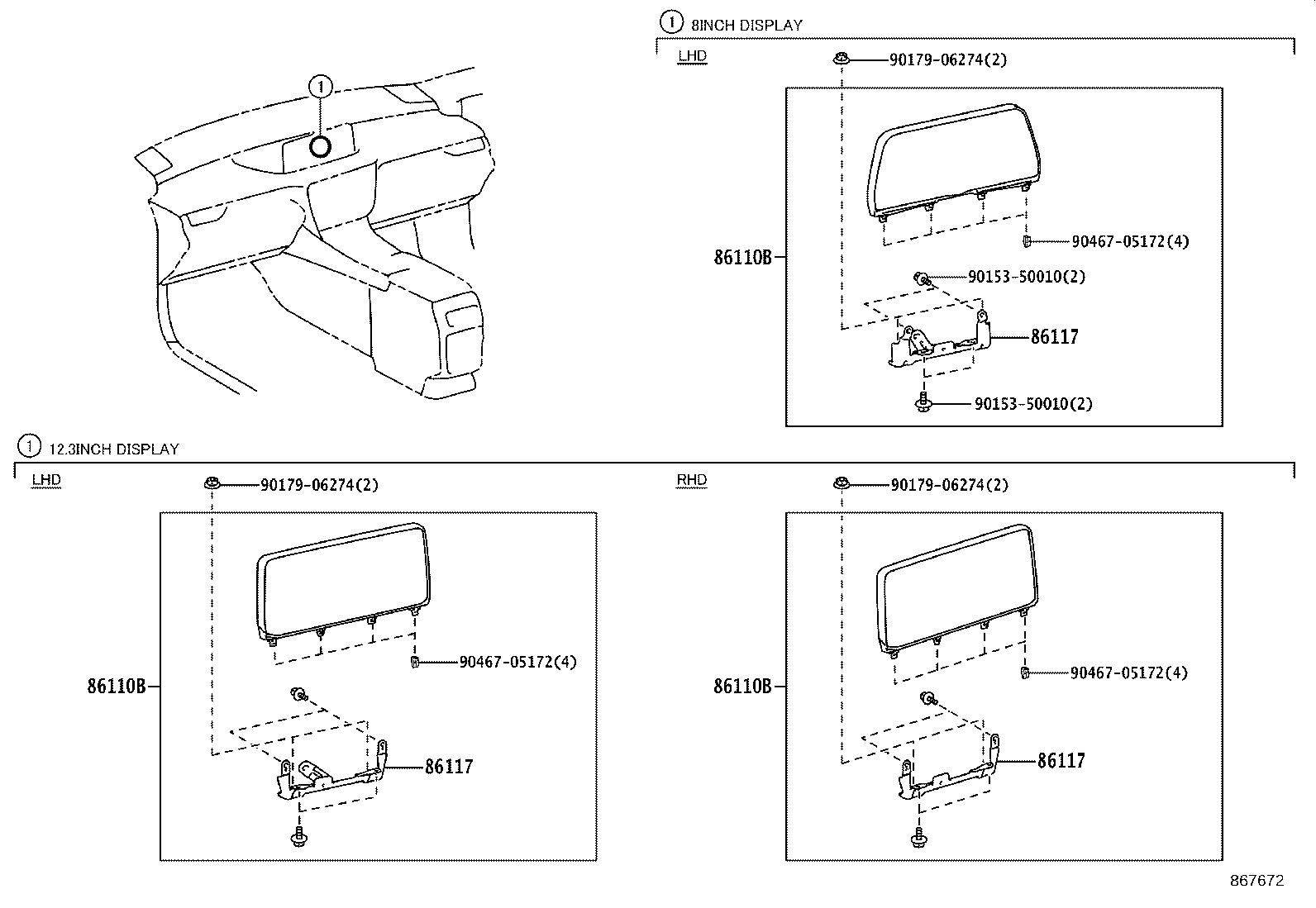

ILLUST NO. 2 OF 2(1908- )
DISPLAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-48620E0 |
AGL2#,GGL25,GYL25..LHD..STD PANASONIC,NOBLE BROWN,TRIM00,01,02,03,04,40,41,42,43,48 |
1 | ||
| 86110-48680C0 |
AGL2#,GGL25,GYL25..LHD..STD DENSO,AUDIO-L2/DVD,BLACK,TRIM0#,1#,2#,3#,48,5#,6#,8# |
1 | ||
| 86110-48680E0 |
AGL2#,GGL25,GYL25..LHD..STD DENSO,AUDIO-L2/DVD,NOBLE BROWN,TRIM00,01,02,03,04,40,41,42,43,48 |
1 | ||
| 86110-48620C0 |
AGL2#,GGL25,GYL25..LHD..STD PANASONIC,BLACK,TRIM0#,1#,2#,3#,48,5#,6#,8# |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-48620E0 |
AGL2#,GGL25,GYL25..LHD..STD PANASONIC,NOBLE BROWN,TRIM00,01,02,03,04,40,41,42,43,48 |
1 | ||
| 86110-48680C0 |
AGL2#,GGL25,GYL25..LHD..STD DENSO,AUDIO-L2/DVD,BLACK,TRIM0#,1#,2#,3#,48,5#,6#,8# |
1 | ||
| 86110-48680E0 |
AGL2#,GGL25,GYL25..LHD..STD DENSO,AUDIO-L2/DVD,NOBLE BROWN,TRIM00,01,02,03,04,40,41,42,43,48 |
1 | ||
| 86110-48620C0 |
AGL2#,GGL25,GYL25..LHD..STD PANASONIC,BLACK,TRIM0#,1#,2#,3#,48,5#,6#,8# |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-48620E0 |
AGL2#,GGL25,GYL25..LHD..STD PANASONIC,NOBLE BROWN,TRIM00,01,02,03,04,40,41,42,43,48 |
1 | ||
| 86110-48680C0 |
AGL2#,GGL25,GYL25..LHD..STD DENSO,AUDIO-L2/DVD,BLACK,TRIM0#,1#,2#,3#,48,5#,6#,8# |
1 | ||
| 86110-48680E0 |
AGL2#,GGL25,GYL25..LHD..STD DENSO,AUDIO-L2/DVD,NOBLE BROWN,TRIM00,01,02,03,04,40,41,42,43,48 |
1 | ||
| 86110-48620C0 |
AGL2#,GGL25,GYL25..LHD..STD PANASONIC,BLACK,TRIM0#,1#,2#,3#,48,5#,6#,8# |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-48230 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86117-48220 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-48230 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86117-48220 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-48230 |
AGL2#,GGL25,GYL25..LHD AUDIO-L2/DVD |
1 | ||
| 86117-48220 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90467-05172 | ||||
