GGL25L-AWZGBW (2015)
Toyota Lexus Rx Series

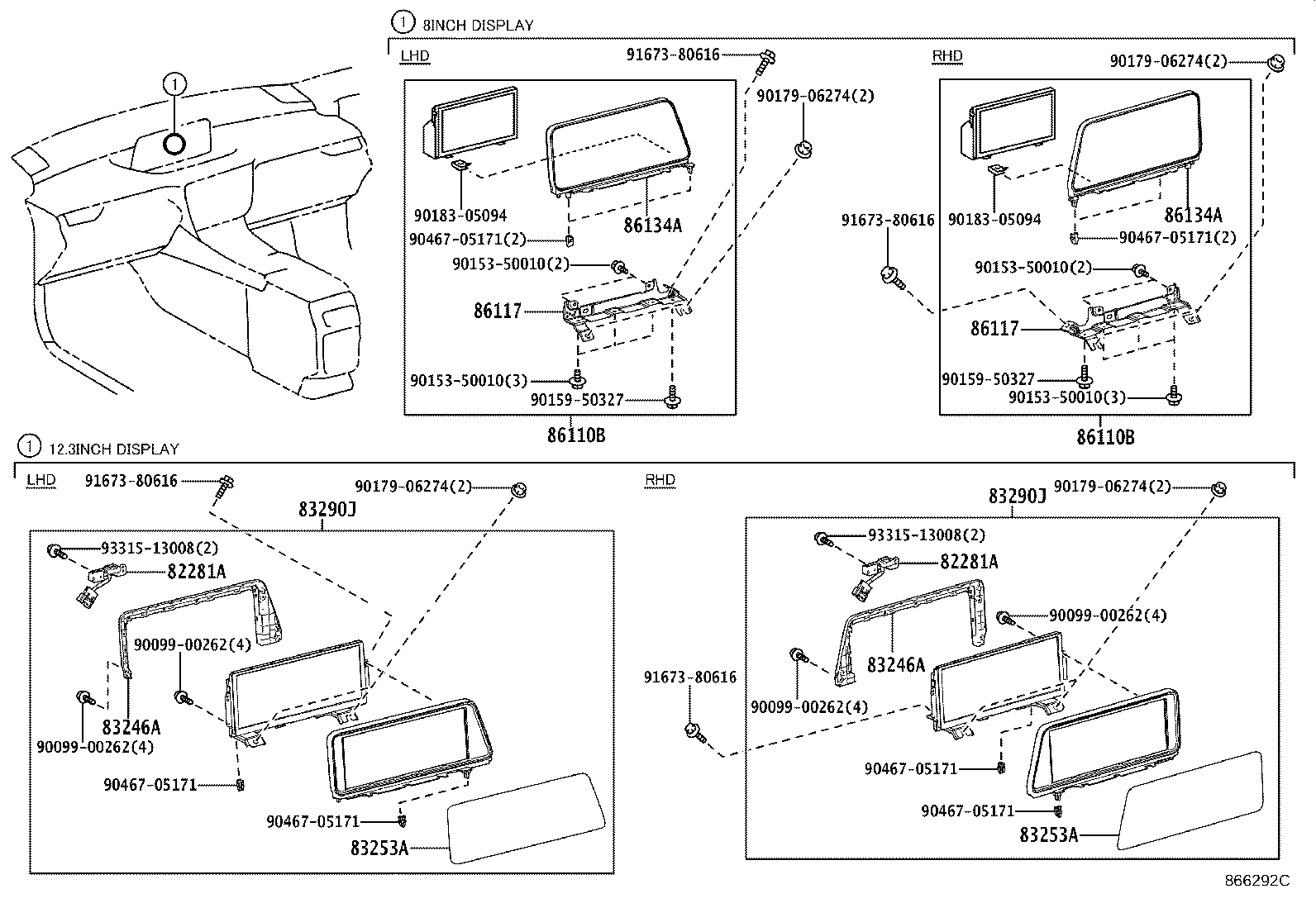

ILLUST NO. 2 OF 2(1509-1908)
DISPLAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82281A - WIRE, GAUGE | ||||
| 82281-48010 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 82281A - WIRE, GAUGE | ||||
| 82281-48010 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 83246A - PANEL, MULTI INFORMATION DISPLAY | ||||
| 83811-48110 |
AGL2#,GGL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83268-48110 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83246A - PANEL, MULTI INFORMATION DISPLAY | ||||
| 83811-48110 |
AGL2#,GGL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83268-48110 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83253A - GLASS, ACCESSORY METER | ||||
| 83253-48110 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83253A - GLASS, ACCESSORY METER | ||||
| 83253-48110 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83290J - METER ASSY, ACCESSORY | ||||
| 83290-48110 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83290-48111 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83290-48112 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83290J - METER ASSY, ACCESSORY | ||||
| 83290-48110 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83290-48111 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 83290-48112 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-48560 |
AGL2#,GGL25,GYL25..LHD PIONEER |
1 | ||
| 86110-48560 |
AGL2#,GGL25,GYL25..LHD PIONEER,AUDIO-*EMV&DVD |
1 | ||
| 86110-48561 |
AGL2#,GGL25,GYL25..LHD PIONEER,AUDIO-*EMV&DVD |
1 | ||
| 86110-48561 |
AGL2#,GGL25,GYL25..LHD PIONEER |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-48560 |
AGL2#,GGL25,GYL25..LHD PIONEER |
1 | ||
| 86110-48560 |
AGL2#,GGL25,GYL25..LHD PIONEER,AUDIO-*EMV&DVD |
1 | ||
| 86110-48561 |
AGL2#,GGL25,GYL25..LHD PIONEER,AUDIO-*EMV&DVD |
1 | ||
| 86110-48561 |
AGL2#,GGL25,GYL25..LHD PIONEER |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-48170 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 86117-48170 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-48170 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 86117-48170 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 86134A - PARTS, MULTI-DISPLAY | ||||
| 86134-48040 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 86134-48040 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 86134A - PARTS, MULTI-DISPLAY | ||||
| 86134-48040 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 86134-48040 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 93315-13008 | ||||

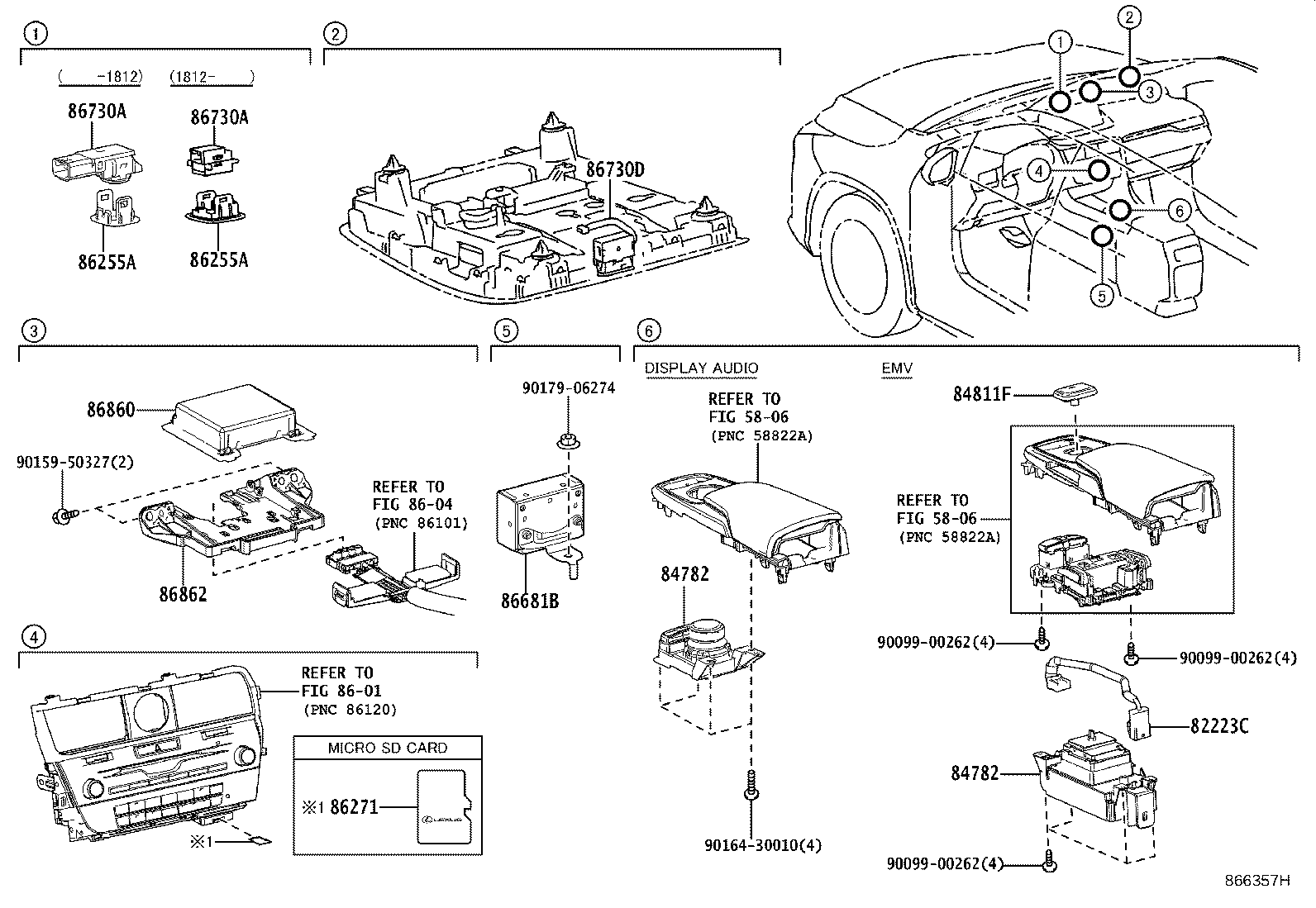

ILLUST NO. 1 OF 2(1509-1908)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223C - WIRE, SWITCH | ||||
| 82223-48040 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 84782 - BOARD, REMOTE OPERATION | ||||
| 84782-48040 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 84782-48040 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 84782-48061 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 84782-48060 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 84782 - BOARD, REMOTE OPERATION | ||||
| 84782-48040 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 84782-48040 |
AGL2#,GGL25,GYL25..LHD AUDIO-*EMV&DVD |
1 | ||
| 84782-48061 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 84782-48060 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 84811F - KNOB, SWITCH | ||||
| 84811-48040 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD |
1 | ||
| 86255A - CASE, MICROPHONE, NO.1 | ||||
| 86255-48010A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 86255-48010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 86255-78010A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 86255-48010B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 86255-78010B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 86255-78010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 86255A - CASE, MICROPHONE, NO.1 | ||||
| 86255-48010A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 86255-48010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 86255-78010A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 86255-48010B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 86255-78010B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 86255-78010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-48340 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST),MICRO SD CARD |
1 | ||
| 86271-48340 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITALAUDIO BROADCAST),MICRO SD CARD |
1 | ||
| 86271-48340 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST),MICRO SD CARD |
1 | ||
| 86271-48340 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST),MICRO SD CARD |
1 | ||
| 86271-48340 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST),MICRO SD CARD |
1 | ||
| 86271-48340 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST),MICRO SD CARD |
1 | ||
| 86271-48341 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48341 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48340 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST),MICRO SD CARD |
1 | ||
| 86271-48340 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST),MICRO SDCARD |
1 | ||
| 86271-48341 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48341 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITALAUDIO BROADCAST) |
1 | ||
| 86271-48341 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48341 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITALAUDIO BROADCAST) |
1 | ||
| 86271-48341 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48341 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48343 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48343 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48343 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITALAUDIO BROADCAST) |
1 | ||
| 86271-48343 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48343 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48342 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48343 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48343 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48344 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48343 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48344 |
GGL25 ROMANIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITALAUDIO BROADCAST) |
1 | ||
| 86271-48344 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48344 |
GGL25 BULGARIA SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48344 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48344 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48344 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48345 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48344 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48345 |
GGL25 ISRAEL SPEC&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48345 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48345 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48346 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48346 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48347 |
AGL2#,GGL25,GYL25..STD AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86271-48347 |
AGL2#,GGL25,GYL25 AUDIO-*EMV&DVD&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST) |
1 | ||
| 86681B - DIVIDER, ANTENNA | ||||
| 86681-48080 |
GGL25 |
1 | ||
| 86681-48080 |
GGL25 MAYDAY SYSTEM-WITH(FOR ERA-GLONASS) |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48090 |
AGL2#,GGL25,GYL25 |
1 | ||
| 86730-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48090 |
AGL2#,GGL25,GYL25 |
1 | ||
| 86730-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 86730D - MICROPHONE ASSY, TELEPHONE, NO.2 | ||||
| 86730-33130 |
GGL25 |
1 | ||
| 86730-33130 |
GGL25 MAYDAY SYSTEM-WITH(FOR ERA-GLONASS) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-78010 |
GGL25 CROATIA SPEC |
1 | ||
| 86860-78010 |
GGL25 ROMANIA SPEC |
1 | ||
| 86860-78010 |
GGL25 BULGARIA SPEC |
1 | ||
| 86860-78010 |
GGL25 ISRAEL SPEC |
1 | ||
| 86860-78010 |
GGL25 ARMENIA SPEC |
1 | ||
| 86860-78010 |
GGL25 ADRIA(SLOVENIA) SPEC |
1 | ||
| 86860-78010 |
GGL25 AZERBAIJAN SPEC |
1 | ||
| 86860-78010 |
GGL25 GEORGIA SPEC |
1 | ||
| 86860-78010 |
GGL25 SERBIA SPEC |
1 | ||
| 86860-78010 |
GGL25 UKRAINE SPEC |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-58020 |
GGL25 ISRAEL SPEC |
1 | ||
| 86862-58020 |
GGL25 ROMANIA SPEC |
1 | ||
| 86862-58020 |
GGL25 UKRAINE SPEC |
1 | ||
| 86862-58020 |
GGL25 BULGARIA SPEC |
1 | ||
| 86862-58020 |
GGL25 ARMENIA SPEC |
1 | ||
| 86862-58020 |
GGL25 CROATIA SPEC |
1 | ||
| 86862-42010 |
GGL25 ARMENIA SPEC |
1 | ||
| 86862-58020 |
GGL25 SERBIA SPEC |
1 | ||
| 86862-42010 |
GGL25 ADRIA(SLOVENIA) SPEC |
1 | ||
| 86862-58020 |
GGL25 AZERBAIJAN SPEC |
1 | ||
| 86862-58020 |
GGL25 ADRIA(SLOVENIA) SPEC |
1 | ||
| 86862-42010 |
GGL25 UKRAINE SPEC |
1 | ||
| 86862-42010 |
GGL25 GEORGIA SPEC |
1 | ||
| 86862-58020 |
GGL25 GEORGIA SPEC |
1 | ||
| 86862-42010 |
GGL25 AZERBAIJAN SPEC |
1 | ||
| 86862-42010 |
GGL25 SERBIA SPEC |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90159-50327 | ||||
| 90164-30010 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 8601 | ||||
| 8604 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
