GGL25L-AWZGBW (2015)

Toyota Lexus Rx Series

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )2GR#

Click highlighted areas on diagram

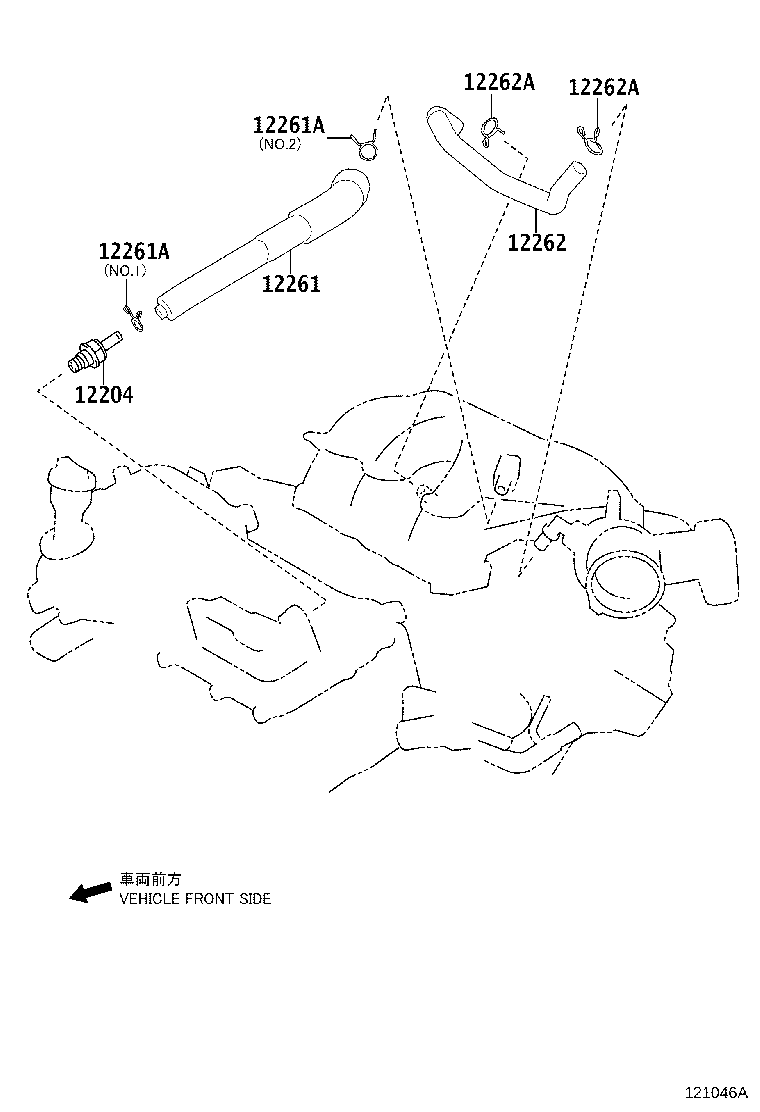

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-31150

2GR#..GGL25,GYL25

 1
12261 - HOSE, VENTILATION
12261-31200

2GR#..GGL25,GYL25

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2GR#..GGL25,GYL25

NO.2

 1
90467-15120

2GR#..GGL25,GYL25

NO.1

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2GR#..GGL25,GYL25

NO.2

 1
90467-15120

2GR#..GGL25,GYL25

NO.1

 1
12262 - HOSE, VENTILATION, NO.2
12262-31190

2GR#..GGL25,GYL25

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2GR#..GGL25,GYL25

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2GR#..GGL25,GYL25

 2
