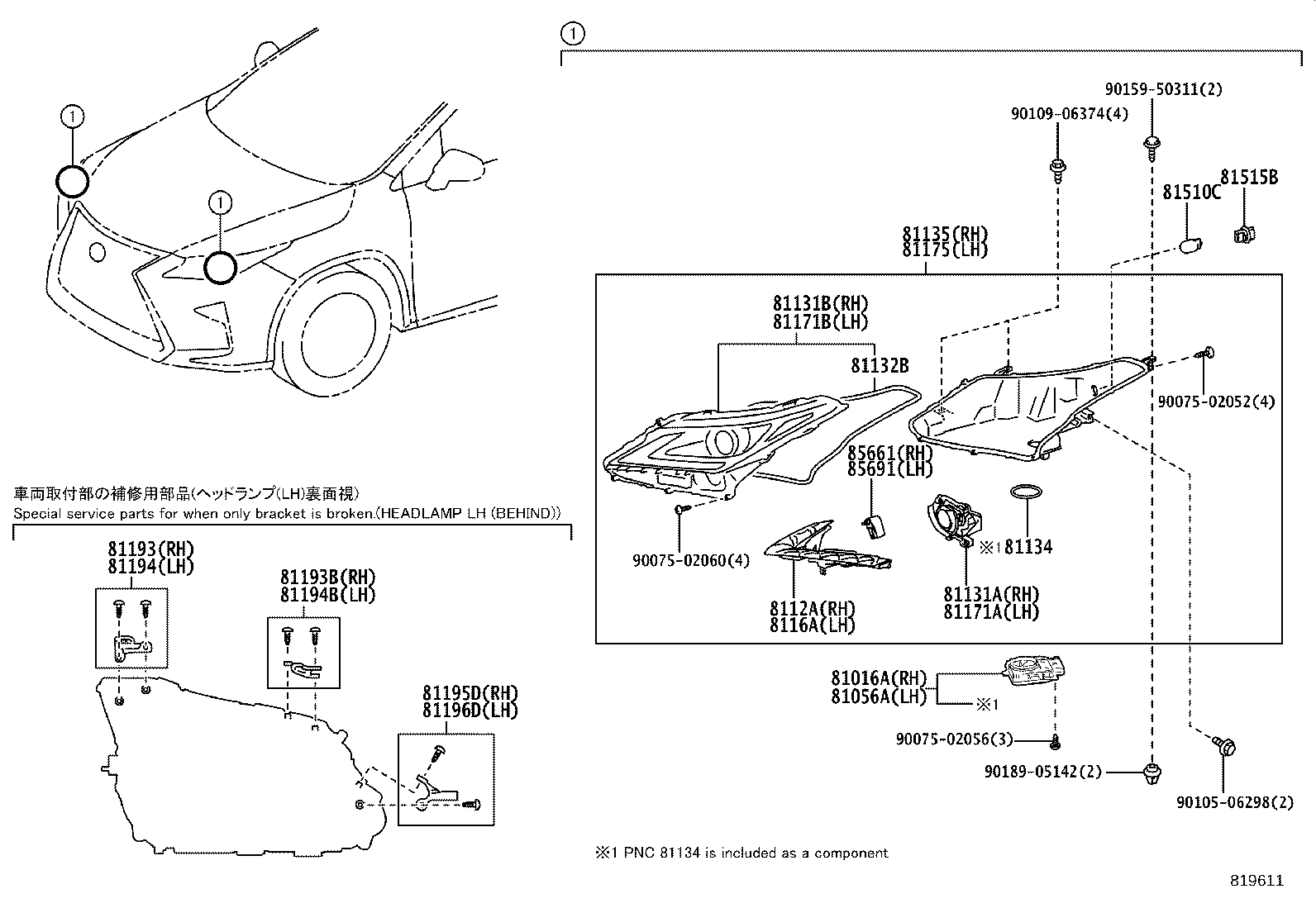

AGL20R-AWTGZW (2015)
Toyota Lexus Rx Series
(1509-1908)
SINGLE BEAM TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-48C30 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81016-48D10 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81016-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81016-48C31 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81016-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81056-48D10 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81056-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81056-48C30 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81056-48C31 |
AGL2#,GGL25,GYL25 |
1 | ||
| 8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH | ||||
| 8112A-48C30 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-48D20 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81130-48C30 |
AGL2#,GYL25..RHD |
1 | ||
| 81130-48D20 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81130-48D50 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81131-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81131-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81131-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
AGL2#,GGL25,GYL25 |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
AGL2#,GGL25,GYL25 |
4 | ||
| 90075-23003 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90075-23003 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 90075-23003 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
8 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81145-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81145-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81145-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH | ||||
| 8116A-48C30 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-48D20 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE,(A) |
1 | ||
| 81170-48C30 |
AGL2#,GYL25..RHD |
1 | ||
| 81170-48D50 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),(A) |
1 | ||
| 81170-48D20 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),(A) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81171-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81171-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81171-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81185-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81185-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81185-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-48120 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-48120 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-48110 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-48110 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
AGL2#,GGL25,GYL25 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
AGL2#,GGL25,GYL25 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48060 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85661-48060 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 85661-48050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 85661-48060 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-48010 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85691-48010 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 85691-48010 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 85661-48050 |
AGL2#,GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||

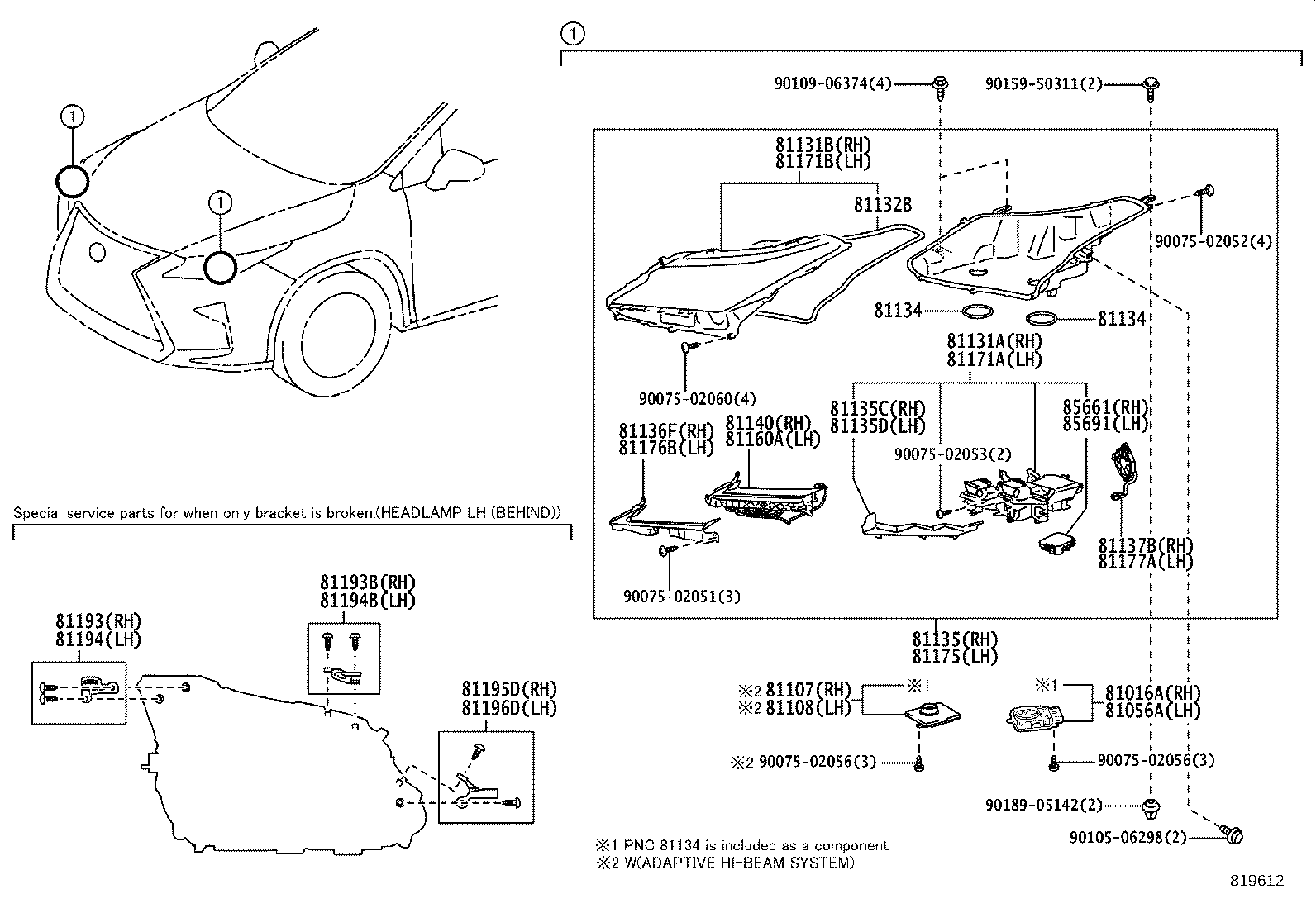

(1509-1908)
TRIPLE BEAM TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-48C30 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81016-48D10 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81016-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81016-48C31 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81016-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81056-48D10 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81056-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81056-48C30 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81056-48C31 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-48C90 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81108-48C90 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-48D20 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81130-48C30 |
AGL2#,GYL25..RHD |
1 | ||
| 81130-48D20 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81130-48D50 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81131-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81131-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81131-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
AGL2#,GGL25,GYL25 |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
AGL2#,GGL25,GYL25 |
4 | ||
| 90075-23003 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90075-23003 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 90075-23003 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
8 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
AGL2#,GGL25,GYL25 |
4 | ||
| 90075-23003 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90075-23003 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 90075-23003 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
8 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81145-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81145-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81145-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81135-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81135-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 81175-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81175-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81175-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81136F - COVER, HEADLAMP, NO.2 RH | ||||
| 81136-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81136-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81136-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81137B - FAN, HEADLAMP, RH | ||||
| 81137-47660 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81137-47660 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81137-47660 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-48D20 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81140-48D20 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81140-48D20 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81070-48D20 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),(B) |
1 | ||
| 81070-48D20 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE,(B) |
1 | ||
| 81070-48D20 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),(B) |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-48D20 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE,(A) |
1 | ||
| 81170-48C30 |
AGL2#,GYL25..RHD |
1 | ||
| 81170-48D50 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),(A) |
1 | ||
| 81170-48D20 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),(A) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81171-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81171-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81171-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48C40 |
AGL2#,GYL25..RHD |
1 | ||
| 81185-48D30 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81185-48D60 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81185-48D30 |
AGL2#,GYL25..RHD..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81176B - COVER, HEADLAMP, NO.2 LH | ||||
| 81176-48C80 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81176-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81176-48C80 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81177A - FAN, HEADLAMP, LH | ||||
| 81137-47660 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81137-47660 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81137-47660 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-48120 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-48100 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-48120 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-48110 |
AGL2#,GGL25,GYL25 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-48110 |
AGL2#,GGL25,GYL25 |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48060 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85661-48060 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 85661-48050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 85661-48060 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-48010 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85691-48010 |
AGL2#..RHD HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 85691-48010 |
AGL2#,GGL25,GYL25..STD HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 85661-48050 |
AGL2#,GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02052 | ||||
| 90075-02053 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
