AGL20L-AWTGZW (2019)
Toyota Lexus Rx Series

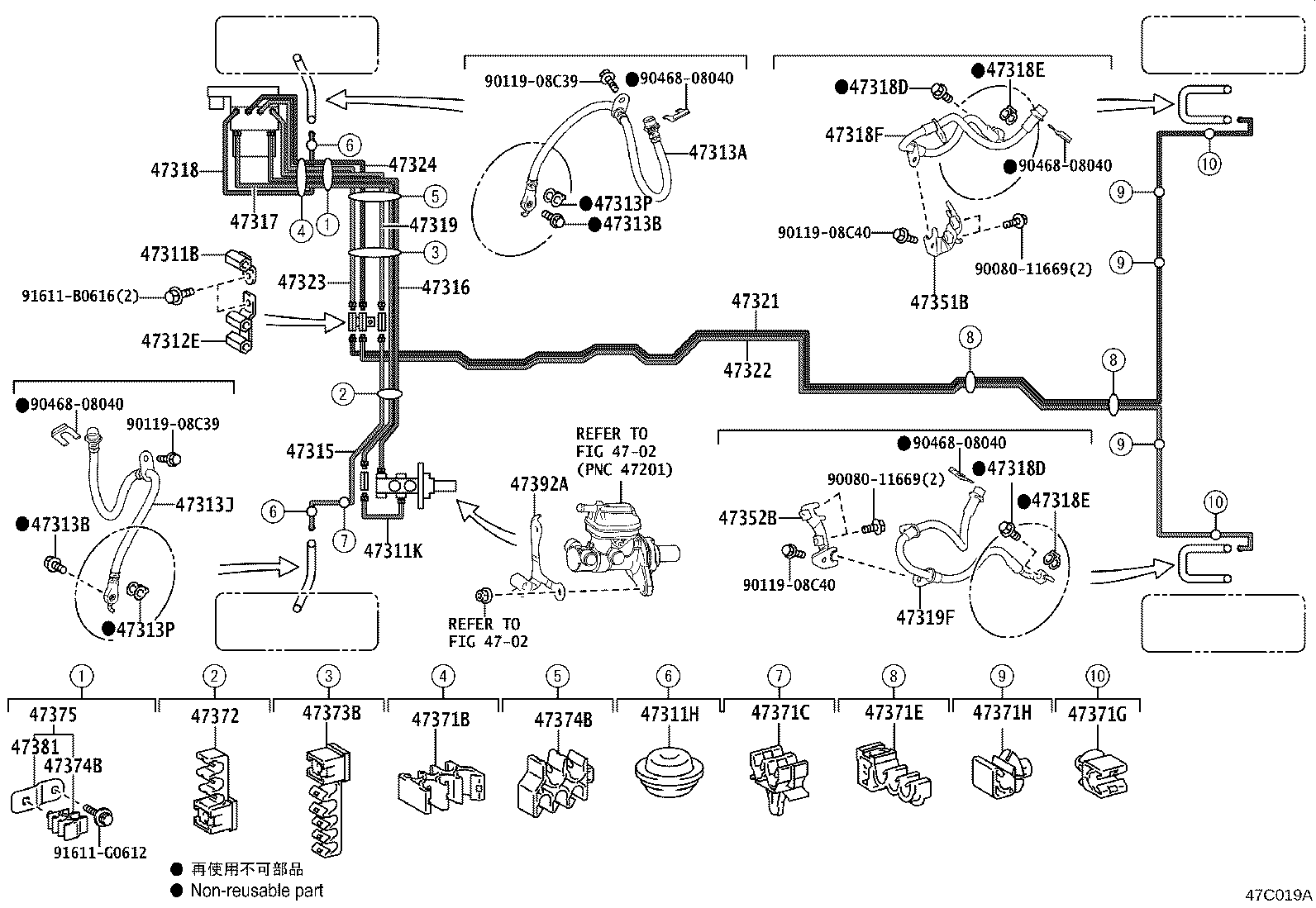

ILLUST NO. 1 OF 2(1908- )AGL2#,GGL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10272 |
AGL2#,GGL25 |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-25033 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47311K - TUBE, BRAKE MASTER CYLINDER TO WAY | ||||
| 47311-48040 |
AGL2#,GGL25 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10293 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H50 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H51 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-48210 |
AGL2#,GGL25 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-48311 |
AGL2#,GGL25 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-48341 |
AGL2#,GGL25 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-48210 |
AGL2#,GGL25 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H52 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-48290 |
AGL2#,GGL25 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H53 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-48170 |
AGL2#,GGL25 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-48180 |
AGL2#,GGL25 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-48320 |
AGL2#,GGL25 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-48320 |
AGL2#,GGL25 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-48020 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-48020 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D52 |
AGL2#,GGL25 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01C00 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D05 |
AGL2#,GGL25 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01E01 |
AGL2#,GGL25,GYL25 |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-01D17 |
AGL2#,GGL25 |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D50 |
AGL2#,GGL25 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D51 |
AGL2#,GGL25 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D53 |
AGL2#,GGL25 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D53 |
AGL2#,GGL25 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-48140 |
AGL2#,GGL25 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-48150 |
AGL2#,GGL25,GYL25 |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-48010 |
AGL2#,GGL25 |
1 | ||
| Common parts | ||||
| 90080-11669 | ||||
| 90119-08C39 | ||||
| 90119-08C40 | ||||
| 90468-08040 | ||||
| 91611-B0616 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4702 | ||||
