AGL20L-AWTGZW (2015)
Toyota Lexus Rx Series
(1509- )AGL2#..LHD

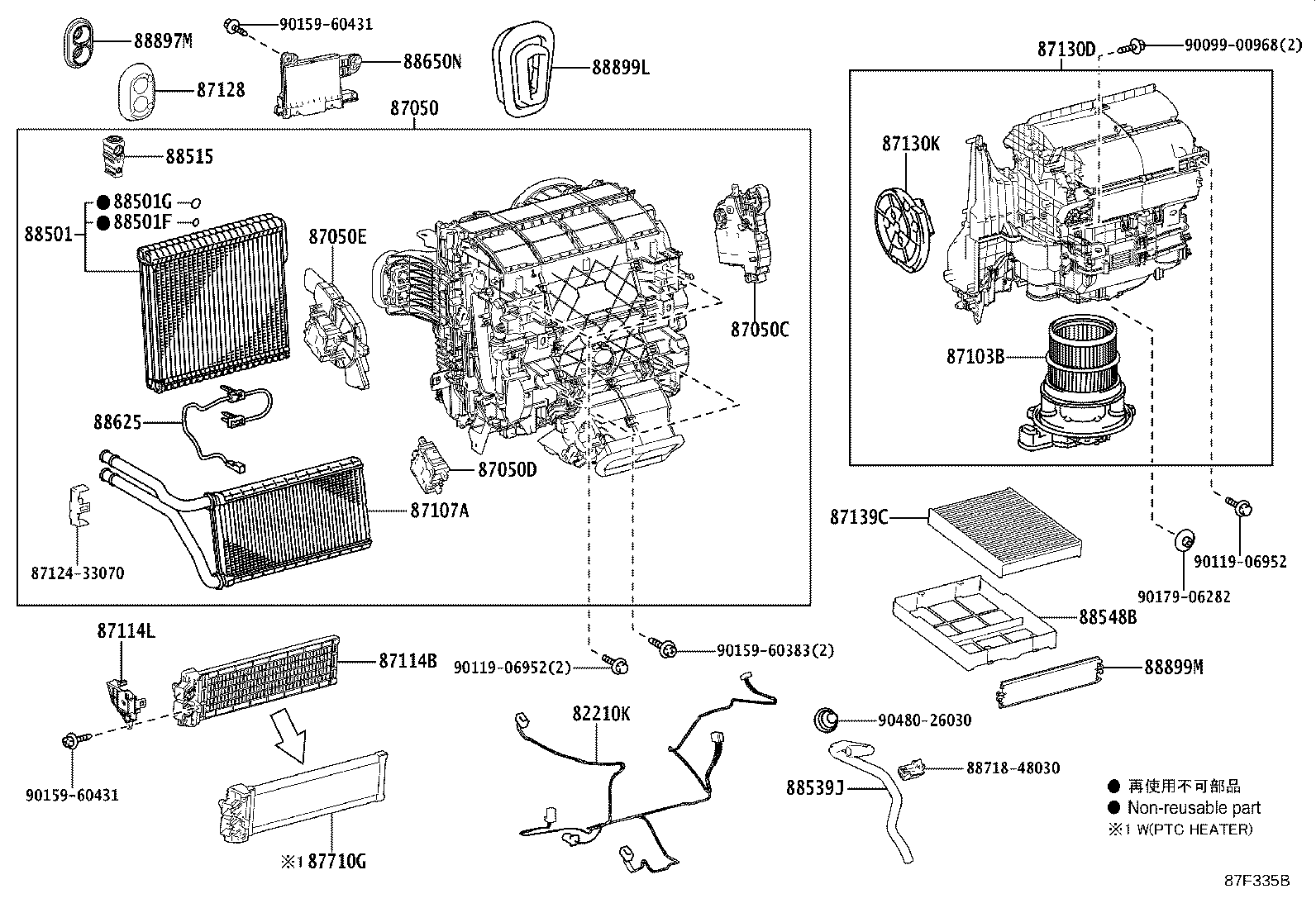

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-48060 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-48670 |
AGL2#..LHD RUSSIA,BELARUS,KAZAKHSTAN SPEC&COLD AREA SPEC |
1 | ||
| 87050-48670 |
AGL2#..LHD AZERBAIJAN SPEC |
1 | ||
| 87050-48670 |
AGL2#..LHD ADRIA(SLOVENIA) SPEC |
1 | ||
| 87050-48670 |
AGL2#..LHD UKRAINE SPEC |
1 | ||
| 87050-48690 |
AGL2#..LHD |
1 | ||
| 87050-48670 |
AGL2#..LHD GEORGIA SPEC |
1 | ||
| 87050-48670 |
AGL2#..LHD ARMENIA SPEC |
1 | ||
| 87050-48670 |
AGL2#..LHD SERBIA SPEC |
1 | ||
| 87050-48670 |
AGL2#..LHD BELARUS SPEC&COLD AREA SPEC |
1 | ||
| 87050-48670 |
AGL2#..LHD KAZAKHSTAN SPEC&COLD AREA SPEC |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
AGL2#,GGL25,GYL25 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-48240 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-48120 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-58050 |
AGL2# |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-48140 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-58030 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-48340 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
AGL2#,GGL25,GYL25..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-48050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-58010 |
AGL2# COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-48480 |
AGL2#..LHD AZERBAIJAN SPEC |
1 | ||
| 88501-48480 |
AGL2#..LHD ADRIA(SLOVENIA) SPEC |
1 | ||
| 88501-48480 |
AGL2#..LHD RUSSIA,BELARUS,KAZAKHSTAN SPEC&COLD AREA SPEC |
1 | ||
| 88501-48480 |
AGL2#..LHD SERBIA SPEC |
1 | ||
| 88501-48480 |
AGL2#..LHD GEORGIA SPEC |
1 | ||
| 88501-48480 |
AGL2#..LHD BELARUS SPEC&COLD AREA SPEC |
1 | ||
| 88501-48480 |
AGL2#..LHD UKRAINE SPEC |
1 | ||
| 88501-48500 |
AGL2#..LHD |
1 | ||
| 88501-48480 |
AGL2#..LHD ARMENIA SPEC |
1 | ||
| 88501-48480 |
AGL2#..LHD KAZAKHSTAN SPEC&COLD AREA SPEC |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
AGL2#,GGL25,GYL25 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
AGL2#,GGL25,GYL25 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
AGL2#,GYL25..LHD UKRAINE SPEC |
1 | ||
| 88515-48110 |
AGL2#,GYL25..LHD AZERBAIJAN SPEC |
1 | ||
| 88515-48110 |
AGL2#..LHD RUSSIA,BELARUS,KAZAKHSTAN SPEC&COLD AREA SPEC |
1 | ||
| 88515-48140 |
AGL2#,GYL25 |
1 | ||
| 88515-48110 |
AGL2#,GYL25..LHD ARMENIA SPEC |
1 | ||
| 88515-48110 |
AGL2#,GYL25..LHD GEORGIA SPEC |
1 | ||
| 88515-48110 |
AGL2#..LHD BELARUS SPEC&COLD AREA SPEC |
1 | ||
| 88515-48110 |
AGL2#,GYL25..LHD ADRIA(SLOVENIA) SPEC |
1 | ||
| 88515-48110 |
AGL2#,GYL25..LHD SERBIA SPEC |
1 | ||
| 88515-48110 |
AGL2#..LHD KAZAKHSTAN SPEC&COLD AREA SPEC |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-48110 |
AGL2#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-48070 |
AGL2#,GGL25,GYL25 |
1 | ||
| 88899-48050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28060 |
AGL2# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-48A40 |
AGL2#..LHD MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48A50 |
AGL2#..LHD |
1 | ||
| 88650-48A20 |
AGL2#..LHD COLD AREA SPEC&MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48A30 |
AGL2#..LHD COLD AREA SPEC |
1 | ||
| 88650-48A31 |
AGL2#..LHD COLD AREA SPEC |
1 | ||
| 88650-48A41 |
AGL2#..LHD MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48A21 |
AGL2#..LHD COLD AREA SPEC&MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48A51 |
AGL2#..LHD |
1 | ||
| 88650-48D50 |
AGL2#..LHD COLD AREA SPEC&MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48D60 |
AGL2#..LHD COLD AREA SPEC |
1 | ||
| 88650-48D70 |
AGL2#..LHD MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48D80 |
AGL2#..LHD |
1 | ||
| 88650-48D51 |
AGL2#..LHD COLD AREA SPEC&MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48D71 |
AGL2#..LHD MINUS ION GENERATOR-WITH |
1 | ||
| 88650-48D81 |
AGL2#..LHD |
1 | ||
| 88650-48D61 |
AGL2#..LHD COLD AREA SPEC |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 90480-01696 |
AGL2#,GGL25,GYL25 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-48030 |
AGL2#,GGL25,GYL25 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
AGL2#,GGL25,GYL25 |
1 | ||
| 88899-28620 |
AGL2#,GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 87124-33070 | ||||
| 88718-48030 | ||||
| 90099-00968 | ||||
| 90119-06952 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
