AGL20L-AWTGZW (2015)
Toyota Lexus Rx Series

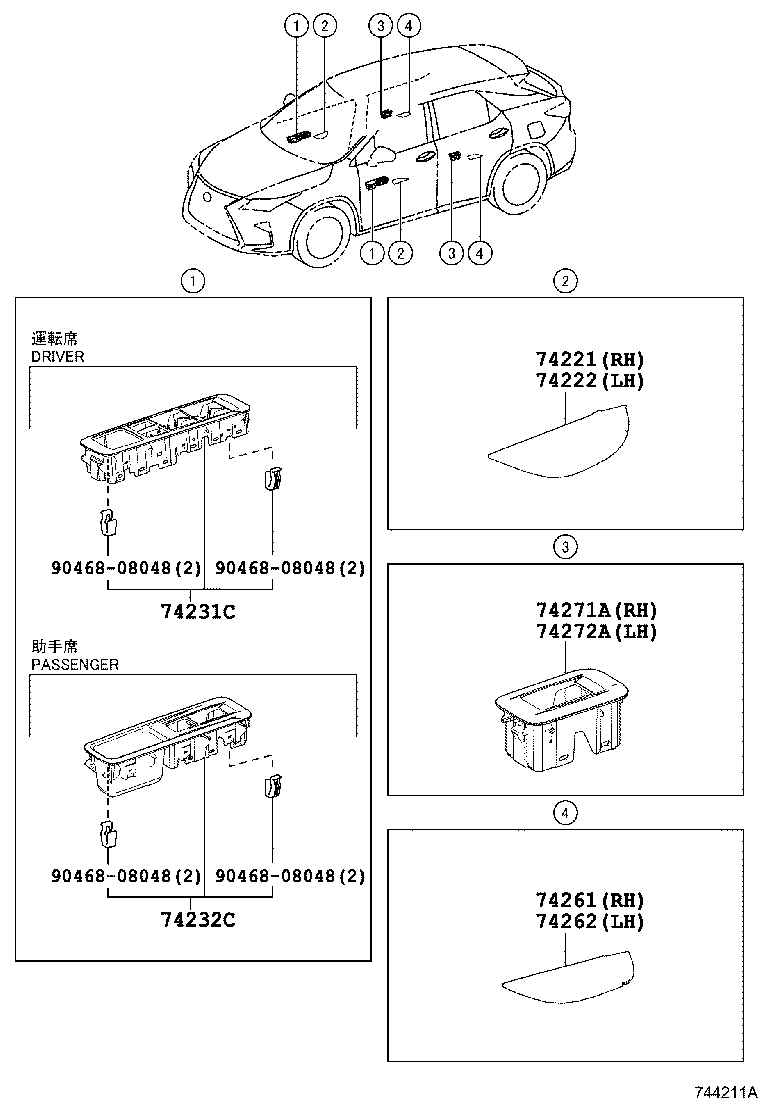

ILLUST NO. 1 OF 2(1509- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-48040E0 |
AGL2#,GGL25,GYL25..STD NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74221-48040E0 |
AGL20 "VERSION L"*(L)&SUN SHADE-WITH,NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74221-48040C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 74221-48040E0 |
AGL20 DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74221-48040E0 |
AGL20 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-48040E0 |
AGL20 "VERSION L"*(L)&SUN SHADE-WITH,NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74222-48040E0 |
AGL20 DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74222-48040C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 74222-48040E0 |
AGL20 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74222-48040E0 |
AGL2#,GGL25,GYL25..STD NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE | ||||
| 74231-48190 |
AGL2#,GGL25,GYL25 |
1 | ||
| 74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE | ||||
| 74232-48180 |
AGL2#,GGL25,GYL25 |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74261-48030E0 |
AGL20 "VERSION L"*(L)&SUN SHADE-WITH,NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74261-48030E0 |
AGL2#,GGL25,GYL25..STD NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74261-48030C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 74261-48030E0 |
AGL20 DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74261-48030E0 |
AGL20 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74262-48030E0 |
AGL20 "VERSION L"*(L)&SUN SHADE-WITH,NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74262-48030C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 74262-48030E0 |
AGL20 DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74262-48030E0 |
AGL2#,GGL25,GYL25..STD NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74262-48030E0 |
AGL20 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,5#,6# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-48110 |
AGL2#,GGL25,GYL25 |
2 | ||
| 74271-48110 |
AGL2#,GGL25,GYL25 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74271-48110 |
AGL2#,GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90468-08048 | ||||

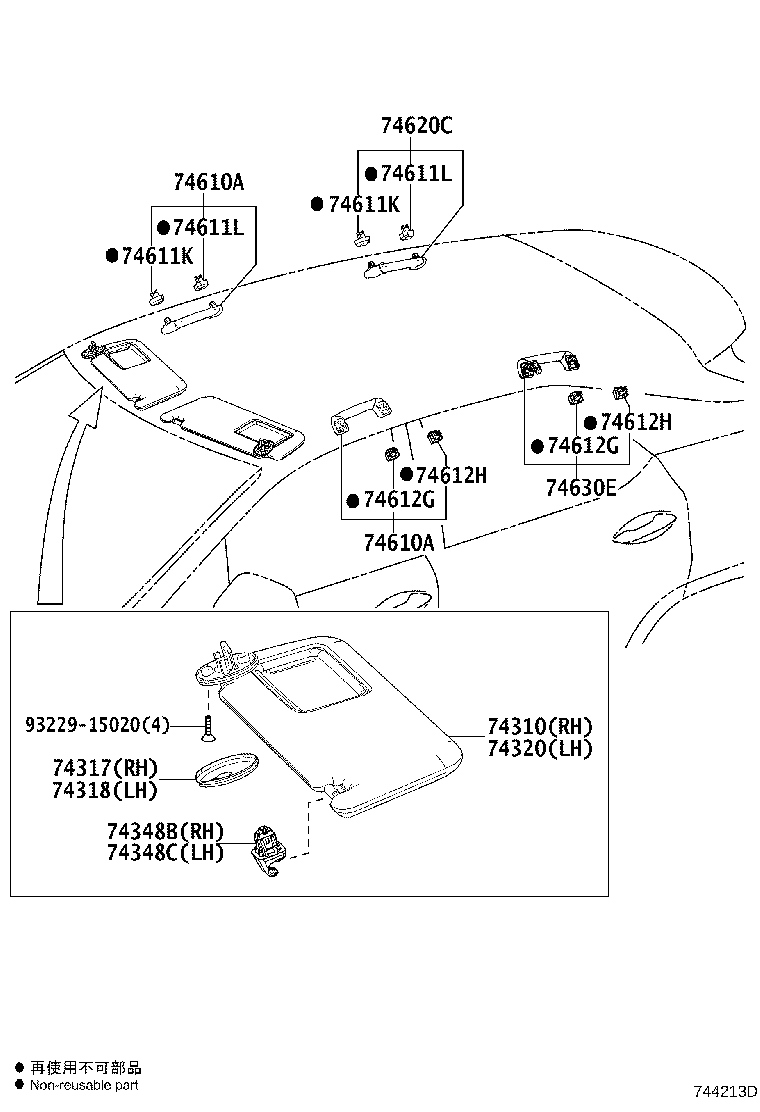

ILLUST NO. 2 OF 2(1509- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-48470A0 |
AGL2#,GGL25,GYL25..LHD..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74310-48470B1 |
AGL2#,GGL25,GYL25..LHD..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74310-48470C0 |
AGL2#,GGL25,GYL25..LHD..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B4 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74317-60020C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74317-60020A5 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74317-60020C2 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020B4 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74317-60020C2 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74317-60020C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74317-60020A5 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-48520A0 |
AGL2#,GGL25,GYL25..LHD..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74320-48520B0 |
AGL2#,GGL25,GYL25..LHD..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74320-48520C0 |
AGL2#,GGL25,GYL25..LHD..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-33040A6 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74348-33040B6 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74348-33040C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74348-33040C2 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-33040A6 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74348-33040C2 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74348-33040C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74348-33040B6 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-48070A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74610-48070B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74610-48070C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-48070A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74610-48070B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74610-48070C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74611K - COVER, ASSIST GRIP, RH FRONT SIDE | ||||
| 74612-33020C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74612-33020B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74612-33020A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74611K - COVER, ASSIST GRIP, RH FRONT SIDE | ||||
| 74612-33020C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74612-33020B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74612-33020A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74611L - COVER, ASSIST GRIP, RH REAR SIDE | ||||
| 74611-33010B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74611-33010A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74611-33010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74611L - COVER, ASSIST GRIP, RH REAR SIDE | ||||
| 74611-33010B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74611-33010A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74611-33010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74612G - COVER, ASSIST GRIP, LH FRONT SIDE | ||||
| 74611-33010B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74611-33010A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74611-33010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74612G - COVER, ASSIST GRIP, LH FRONT SIDE | ||||
| 74611-33010B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74611-33010A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74611-33010C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74612H - COVER, ASSIST GRIP, LH REAR SIDE | ||||
| 74612-33020B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74612-33020A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74612-33020C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74612H - COVER, ASSIST GRIP, LH REAR SIDE | ||||
| 74612-33020B2 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
2 | ||
| 74612-33020A3 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 74612-33020C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
2 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-48080B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74610-48080A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 74610-48080C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-48090C0 |
AGL2#,GGL25,GYL25..STD BLACK,TRIM05,06,25,26,3# |
1 | ||
| 74610-48090B0 |
AGL2#,GGL25,GYL25..STD MOON STONE,TRIM20,21,22,23,24,4# |
1 | ||
| 74610-48090A0 |
AGL2#,GGL25,GYL25..STD ECRU,TRIM00,01,02,03,04,5#,6# |
1 | ||
| Common parts | ||||
| 93229-15020 | ||||
