AGL20L-AWTGZW (2015)

Toyota Lexus Rx Series

Production Sep 2015 - Aug 2019
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )8ARFTS

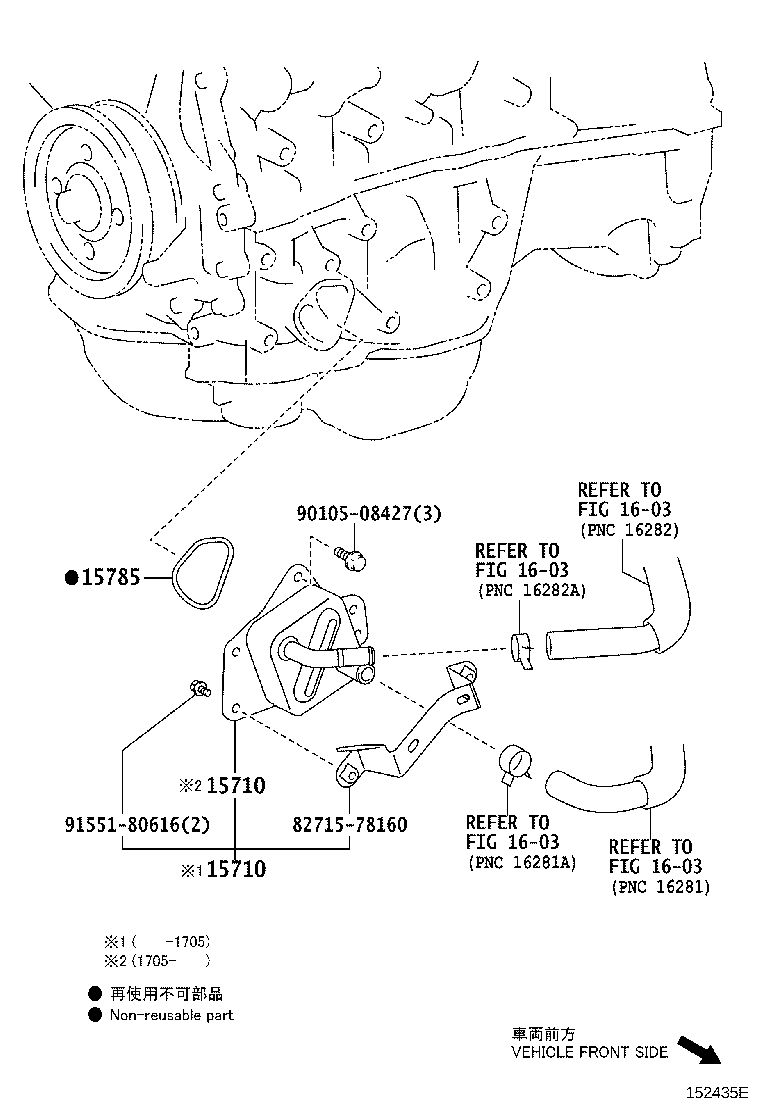

Click highlighted areas on diagram

diagram 15710 15710 15785 1603 1603 1603 1603 8271578160 9010508427 9155180616
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-36030

8ARFTS..AGL2#

 1
15710-36031

8ARFTS..AGL2#

 1
15710 - COOLER ASSY, OIL
15710-36030

8ARFTS..AGL2#

 1
15710-36031

8ARFTS..AGL2#

 1
15785 - GASKET, OIL COOLER
15785-36021

8ARFTS..AGL2#

 1
15785-36020

8ARFTS..AGL2#

 1
Common parts
82715-78160
90105-08427
91551-80616
Linked diagrams
1603
