MHU38R-AWXGKW (2005)
Toyota Lexus Rx400h
(0503- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-48020 |
MHU38 |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-48020 |
MHU38 |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85375-32011 |
MHU38 L=35 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85275-60030 |
MHU38 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85276-60160 |
MHU38 L=180 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15028 |
MHU38 L=68X68 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 85375-22061 |
MHU38 *H,L=350 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 85375-16020 |
MHU38 L=40 |
1 | ||
| 85271F - HOSE, HEADLAMP CLEANER, NO.7 | ||||
| 85271-90A01 |
MHU38 |
1 | ||
| 85271G - HOSE, HEAD LAMP | ||||
| 85271-87706 |
MHU38 L=570 |
1 | ||
| 85271H - HOSE, HEADLAMP CLEANER, NO.8 | ||||
| 90075-15038 |
MHU38 |
1 | ||
| 85271J - HOSE, HEADLAMP CLEANER, NO.9 | ||||
| 85271-14020 |
MHU38 |
1 | ||
| 85271K - HOSE, HEADLAMP CLEANER, NO.10 | ||||
| 90075-15040 |
MHU38 |
2 | ||
| 85271K - HOSE, HEADLAMP CLEANER, NO.10 | ||||
| 90075-15040 |
MHU38 |
2 | ||
| 85279A - JOINT, HEADLAMP CLEANER HOSE | ||||
| 85279-48020 |
MHU38 NO.2 |
1 | ||
| 85279-33050 |
MHU38 NO.1 |
2 | ||
| 85279A - JOINT, HEADLAMP CLEANER HOSE | ||||
| 85279-48020 |
MHU38 NO.2 |
1 | ||
| 85279-33050 |
MHU38 NO.1 |
2 | ||
| 85279A - JOINT, HEADLAMP CLEANER HOSE | ||||
| 85279-48020 |
MHU38 NO.2 |
1 | ||
| 85279-33050 |
MHU38 NO.1 |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-20020 |
MHU38 |
1 | ||
| 85336B - PACKING, HEADLAMP CLEANER WASHER | ||||
| 85336-10010 |
MHU38 |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-48060B1 |
MHU38 DK.GRAY MC.,1E0,RH |
1 | ||
| 85382-48020B1 |
MHU38 DK.GRAY MC.,1E0,LH |
1 | ||
| 85381-48060E0 |
MHU38 BEIGE ME.,4R4,RH |
1 | ||
| 85382-48020B0 |
MHU38 SILVER ME.,1C0,LH |
1 | ||
| 85381-48060B0 |
MHU38 SILVER ME.,1C0,RH |
1 | ||
| 85381-48060A0 |
MHU38 WHITE PEARL CS.,062,RH |
1 | ||
| 85381-48060G0 |
MHU38 LT.OLIVE M.M.,6T1,RH |
1 | ||
| 85381-48060J0 |
MHU38 DK.BLUE M.M.,8R7,RH |
1 | ||
| 85382-48020G0 |
MHU38 LT.OLIVE M.M.,6T1,LH |
1 | ||
| 85382-48020C0 |
MHU38 BLACK,202,LH |
1 | ||
| 85382-48020A0 |
MHU38 WHITE PEARL CS.,062,LH |
1 | ||
| 85382-48020J0 |
MHU38 DK.BLUE M.M.,8R7,LH |
1 | ||
| 85381-48060G1 |
MHU38 MD.GREEN M.M.,6U3,RH |
1 | ||
| 85381-48060C0 |
MHU38 BLACK,202,RH |
1 | ||
| 85381-48060D0 |
MHU38 RED MC.CS.,3R1,RH |
1 | ||
| 85382-48020E0 |
MHU38 BEIGE ME.,4R4,LH |
1 | ||
| 85381-48060B3 |
MHU38 DK.GRAY MC.,1G0,RH |
1 | ||
| 85381-48060E2 |
MHU38 COPPER BROWN MC.,4S6,RH |
1 | ||
| 85382-48020B3 |
MHU38 DK.GRAY MC.,1G0,LH |
1 | ||
| 85381-48060E1 |
MHU38 BEIGE ME.,4T1,RH |
1 | ||
| 85381-48060B2 |
MHU38 SILVER ME.,1F7,RH |
1 | ||
| 85382-48020D0 |
MHU38 RED MC.CS.,3R1,LH |
1 | ||
| 85381-48060J1 |
MHU38 LT.BLUE ME.,8R6,RH |
1 | ||
| 85382-48020J1 |
MHU38 LT.BLUE ME.,8R6,LH |
1 | ||
| 85382-48020E2 |
MHU38 COPPER BROWN MC.,4S6,LH |
1 | ||
| 85382-48020G1 |
MHU38 MD.GREEN M.M.,6U3,LH |
1 | ||
| 85382-48020B2 |
MHU38 SILVER ME.,1F7,LH |
1 | ||
| 85382-48020E1 |
MHU38 BEIGE ME.,4T1,LH |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-48060B1 |
MHU38 DK.GRAY MC.,1E0,RH |
1 | ||
| 85382-48020B1 |
MHU38 DK.GRAY MC.,1E0,LH |
1 | ||
| 85381-48060E0 |
MHU38 BEIGE ME.,4R4,RH |
1 | ||
| 85382-48020B0 |
MHU38 SILVER ME.,1C0,LH |
1 | ||
| 85381-48060B0 |
MHU38 SILVER ME.,1C0,RH |
1 | ||
| 85381-48060A0 |
MHU38 WHITE PEARL CS.,062,RH |
1 | ||
| 85381-48060G0 |
MHU38 LT.OLIVE M.M.,6T1,RH |
1 | ||
| 85381-48060J0 |
MHU38 DK.BLUE M.M.,8R7,RH |
1 | ||
| 85382-48020G0 |
MHU38 LT.OLIVE M.M.,6T1,LH |
1 | ||
| 85382-48020C0 |
MHU38 BLACK,202,LH |
1 | ||
| 85382-48020A0 |
MHU38 WHITE PEARL CS.,062,LH |
1 | ||
| 85382-48020J0 |
MHU38 DK.BLUE M.M.,8R7,LH |
1 | ||
| 85381-48060G1 |
MHU38 MD.GREEN M.M.,6U3,RH |
1 | ||
| 85381-48060C0 |
MHU38 BLACK,202,RH |
1 | ||
| 85381-48060D0 |
MHU38 RED MC.CS.,3R1,RH |
1 | ||
| 85382-48020E0 |
MHU38 BEIGE ME.,4R4,LH |
1 | ||
| 85381-48060B3 |
MHU38 DK.GRAY MC.,1G0,RH |
1 | ||
| 85381-48060E2 |
MHU38 COPPER BROWN MC.,4S6,RH |
1 | ||
| 85382-48020B3 |
MHU38 DK.GRAY MC.,1G0,LH |
1 | ||
| 85381-48060E1 |
MHU38 BEIGE ME.,4T1,RH |
1 | ||
| 85381-48060B2 |
MHU38 SILVER ME.,1F7,RH |
1 | ||
| 85382-48020D0 |
MHU38 RED MC.CS.,3R1,LH |
1 | ||
| 85381-48060J1 |
MHU38 LT.BLUE ME.,8R6,RH |
1 | ||
| 85382-48020J1 |
MHU38 LT.BLUE ME.,8R6,LH |
1 | ||
| 85382-48020E2 |
MHU38 COPPER BROWN MC.,4S6,LH |
1 | ||
| 85382-48020G1 |
MHU38 MD.GREEN M.M.,6U3,LH |
1 | ||
| 85382-48020B2 |
MHU38 SILVER ME.,1F7,LH |
1 | ||
| 85382-48020E1 |
MHU38 BEIGE ME.,4T1,LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85279-33040 |
MHU38 |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85279-60080 |
MHU38 |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85379-89131 |
MHU38 |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85279-60080 |
MHU38 |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85278-20590 |
MHU38 |
2 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85278-20590 |
MHU38 |
2 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 85378-60530 |
MHU38 |
1 | ||
| 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 | ||||
| 85379-89131 |
MHU38 |
1 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 85278-20590 |
MHU38 |
1 | ||
| 85350B - JOINT, HEADLAMP CLEANER ELBOW, NO.4 | ||||
| 85379-22080 |
MHU38 |
1 | ||
| 85350C - JOINT, HEADLAMP CLEANER HOSE, NO.6 | ||||
| 85379-89131 |
MHU38 |
1 | ||
| 85361D - BRACKET, HEADLAMP CLEANER, NO.2 | ||||
| 85361-33020 |
MHU38 |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15014 |
MHU38 L=180 |
1 | ||
| 85371C - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85375-16020 |
MHU38 L=40 |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85376-22150 |
MHU38 |
1 | ||
| Common parts | ||||
| 82711-45020 | ||||
| 85273-20020 | ||||
| 85277-12080 | ||||
| 85277-42040 | ||||
| 85277-48011 | ||||
| 85277-48020 | ||||
| 90075-06003 | ||||
| 90075-10014 | ||||
| 90075-90509 | ||||
| 90075-90511 | ||||
| 90075-99110 | ||||
| 91511-B0620 | ||||

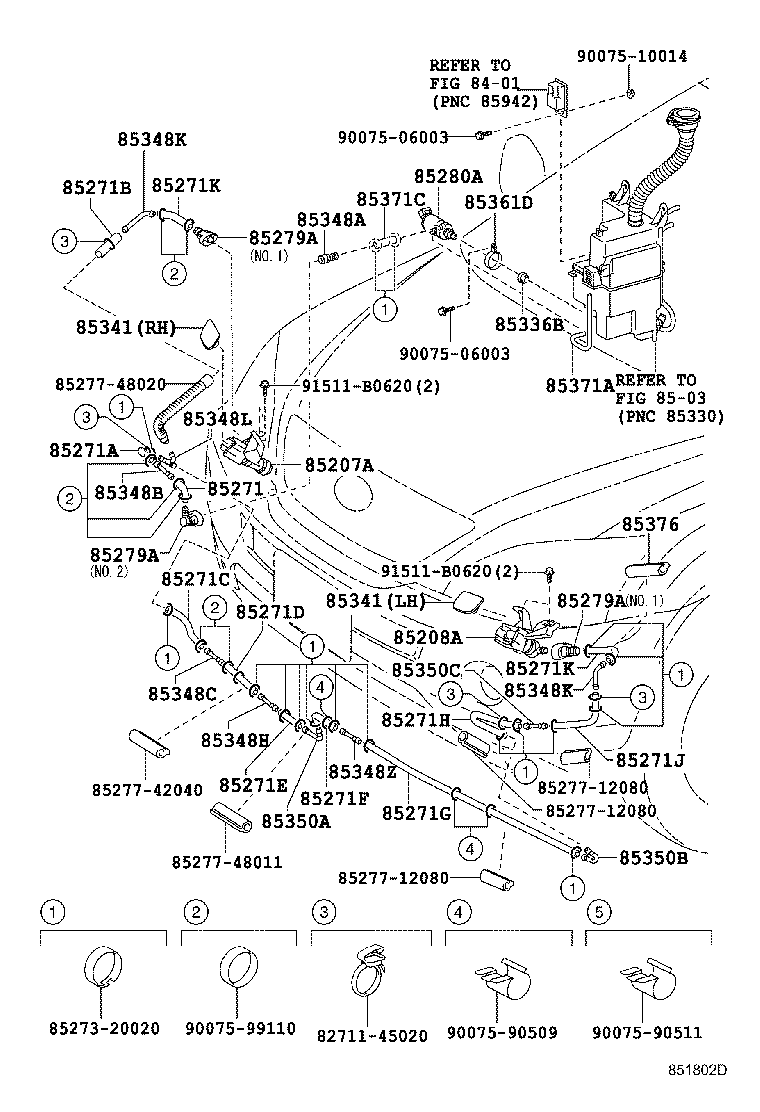

| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
