MHU38R-AWXGKW (2005)

Toyota Lexus Rx400h

Production Mar 2005 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503-0812)

Click highlighted areas on diagram

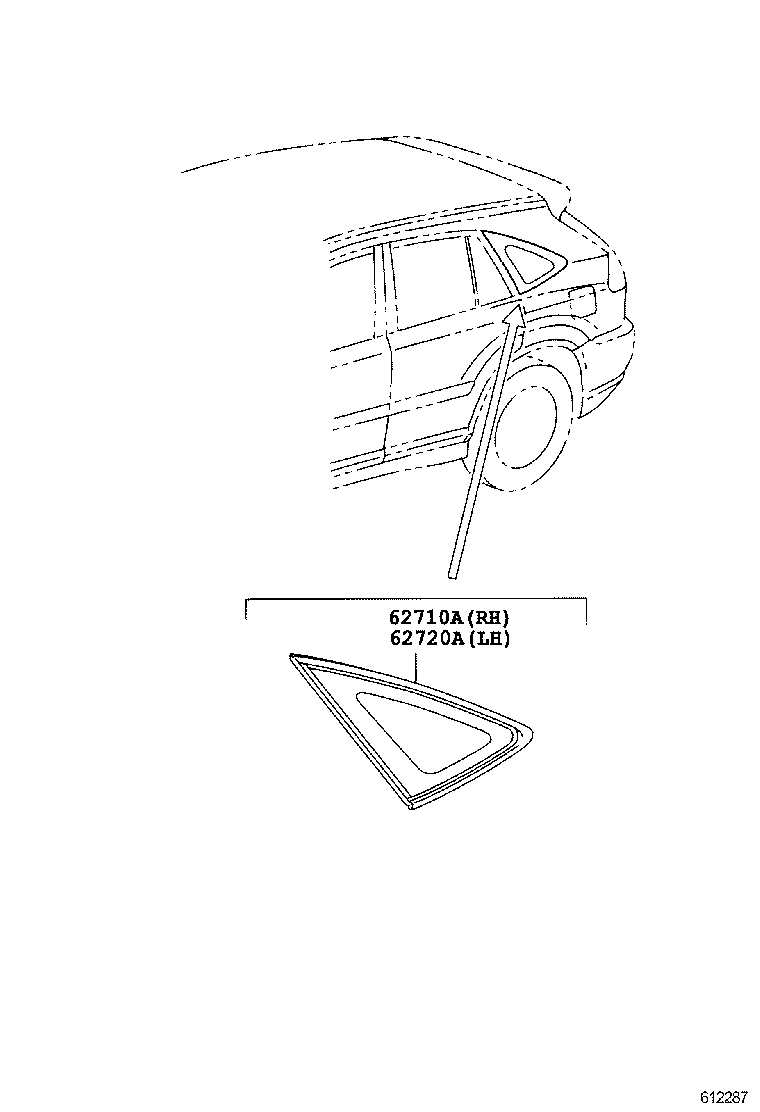

diagram 62710A 62720A
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-48181

MHU38..RHD

*UVCTT,T=3.5,GREEN,SINGAPOLE SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62710-48180

MHU38..RHD

*UVCTT,T=3.5,GREEN,THAILAND SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62710-48180

MHU38..RHD

*UVCTT,T=3.5,GREEN,HONGKONG SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62710-48180

MHU38..RHD

*UVCTT,T=3.5,GREEN,SINGAPOLE SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62710-48181

MHU38..RHD

*UVCTT,T=3.5,GREEN,HONGKONG SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62710-48181

MHU38..RHD

*UVCTT,T=3.5,GREEN,THAILAND SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62710-48170

MHU38

*TT,T=3.5,DK.GRAY

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-48240

MHU38..RHD

*UVCTT,T=3.5,GREEN,HONGKONG SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62720-48240

MHU38..RHD

*UVCTT,T=3.5,GREEN,SINGAPOLE SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62720-48240

MHU38..RHD

*UVCTT,T=3.5,GREEN,THAILAND SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62720-48241

MHU38..RHD

*UVCTT,T=3.5,GREEN,HONGKONG SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62720-48241

MHU38..RHD

*UVCTT,T=3.5,GREEN,SINGAPOLE SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
62720-48230

MHU38

*TT,T=3.5,DK.GRAY

 1
62720-48241

MHU38..RHD

*UVCTT,T=3.5,GREEN,THAILAND SPEC&REAR SIDE GLASS-GREEN(LEXUS MARK)

 1
