MHU38L-AWXGKW (2005)
Toyota Lexus Rx400h
Production
Mar 2005
-
Dec 2008
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

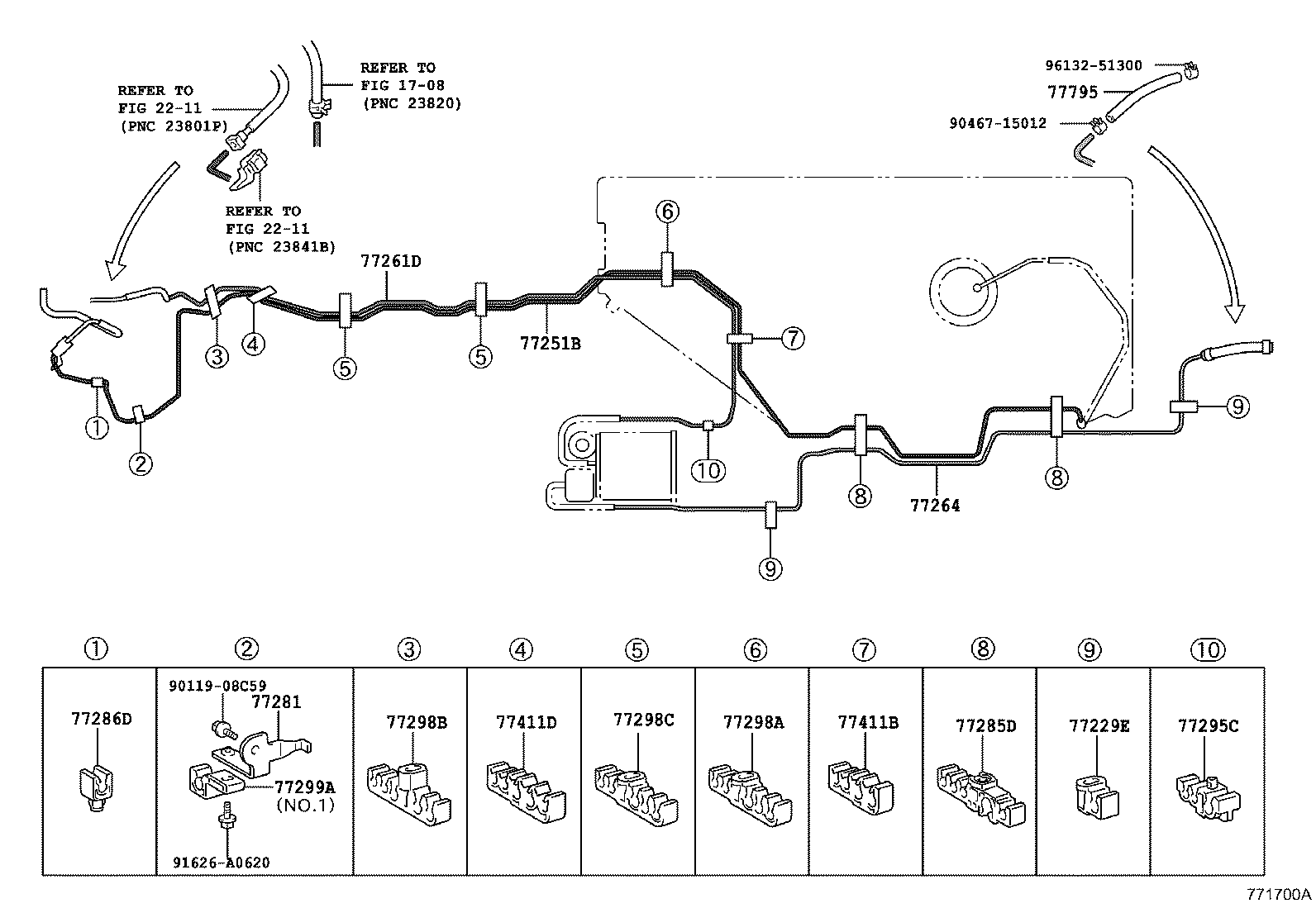

ILLUST NO. 2 OF 2(0503- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77299-48020 |
MHU38 |
2 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48110 |
MHU38..LHD |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-48140 |
MHU38 |
1 | ||
| 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER | ||||
| 77264-48050 |
MHU38 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-48050 |
MHU38 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48030 |
MHU38 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48060 |
MHU38 |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-42060 |
MHU38 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48020 |
MHU38 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48060 |
MHU38 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48050 |
MHU38 |
2 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48010 |
MHU38 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48030 |
MHU38 |
1 | ||
| 77411D - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77411-48040 |
MHU38 |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-48020 |
MHU38 |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90467-15012 | ||||
| 91626-A0620 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

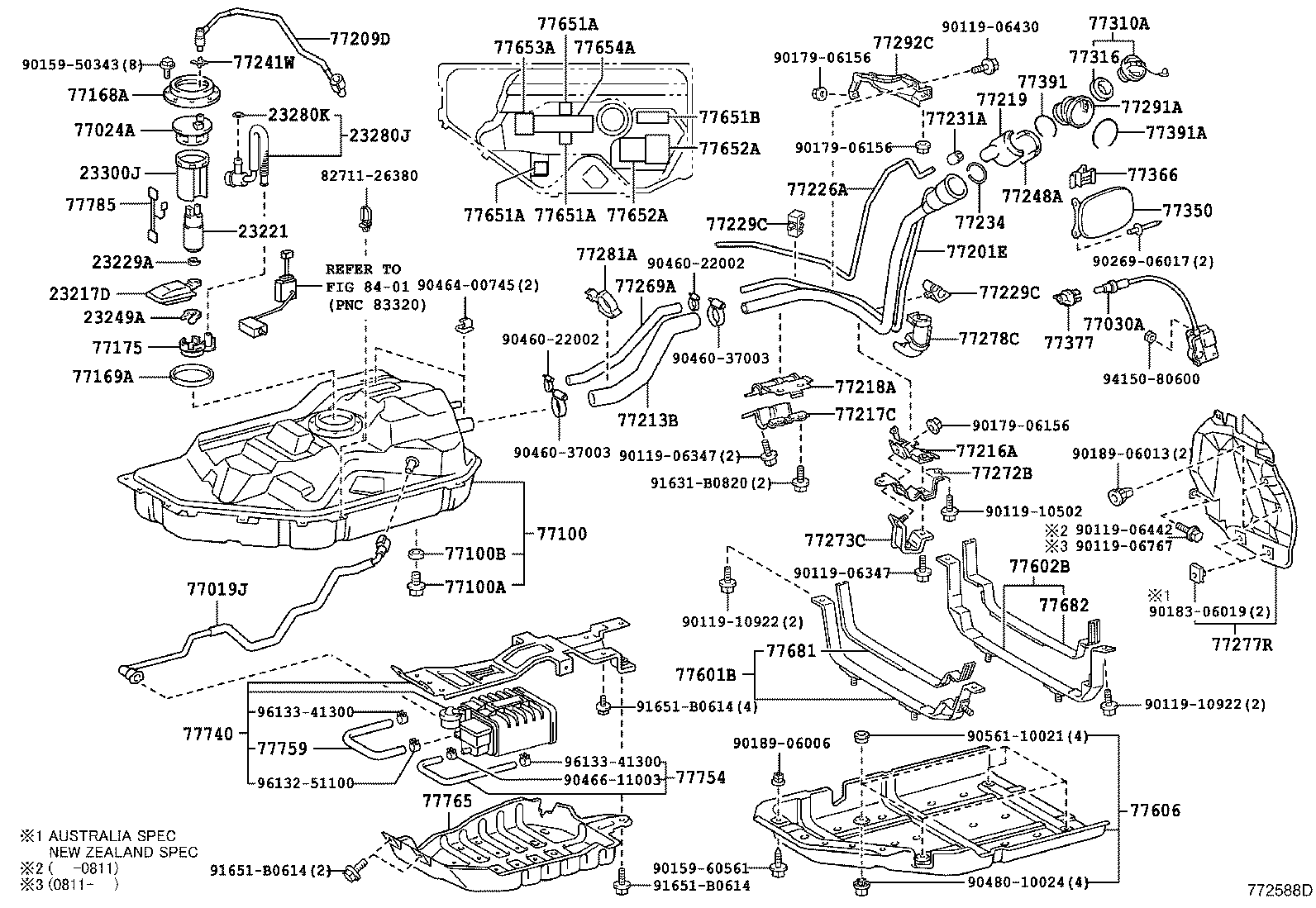

ILLUST NO. 1 OF 2(0503- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-20060 |
3MZFE..MHU38 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-20030 |
3MZFE..MHU38 |
1 | ||
| 23221-20080 |
3MZFE..MHU38..LHD CHINA SPEC |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3MZFE..MHU38 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
3MZFE..MHU38 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23020-20010 |
3MZFE..MHU38 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
3MZFE..MHU38 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-21010 |
3MZFE..MHU38 |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-48020 |
MHU38 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48030 |
MHU38 |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-48020 |
MHU38 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48120 |
MHU38 |
1 | ||
| 77001-48121 |
MHU38 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
MHU38 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
MHU38 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
MHU38 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
MHU38 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30050 |
MHU38 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-48160 |
MHU38 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-48040 |
MHU38 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-48080 |
MHU38..LHD CHINA SPEC |
1 | ||
| 77213-48080 |
MHU38 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-48030 |
MHU38 |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48050 |
MHU38 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-48070 |
MHU38..LHD |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-48020 |
MHU38 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-48040 |
MHU38 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48050 |
MHU38 |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48050 |
MHU38 |
2 | ||
| 77231A - CONNECTOR, FUEL TANK BREATHER TUBE | ||||
| 77232-48010 |
MHU38 |
1 | ||
| 77234 - SEAL, FUEL TUBE CONNECTOR | ||||
| 77234-48010 |
MHU38 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
MHU38 |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-48010 |
MHU38 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-48020 |
MHU38 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-48020 |
MHU38 |
1 | ||
| 77273C - SUPPORT, BREATHER TUBE, NO.2 | ||||
| 77273-48020 |
MHU38 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-48040 |
MHU38 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-48010 |
MHU38 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-48060 |
MHU38 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-48020 |
MHU38 |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77292-48010 |
MHU38..LHD |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
MHU38 |
1 | ||
| 77300-52030 |
MHU38 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
MHU38 |
1 | ||
| 77316-52040 |
MHU38 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48040 |
MHU38 |
1 | ||
| 77350-48041 |
MHU38 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35010 |
MHU38 |
1 | ||
| 77360-21010 |
MHU38 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
MHU38 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MHU38 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33010 |
MHU38 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48050 |
MHU38 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48050 |
MHU38 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48080 |
MHU38 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
MHU38 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
MHU38 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
MHU38 |
3 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-44010 |
MHU38 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20110 |
MHU38 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20110 |
MHU38 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
MHU38 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-26070 |
MHU38 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77616-48020 |
MHU38 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77616-48030 |
MHU38 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48130 |
MHU38 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48060 |
MHU38 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-48030 |
MHU38 |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-48030 |
MHU38 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
MHU38 |
1 | ||
| Common parts | ||||
| 82711-26380 | ||||
| 90119-06347 | ||||
| 90119-06430 | ||||
| 90119-06442 | ||||
| 90119-06767 | ||||
| 90119-10502 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90159-60561 | ||||
| 90179-06156 | ||||
| 90183-06019 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-37003 | ||||
| 90464-00745 | ||||
| 90466-11003 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| 91631-B0820 | ||||
| 91651-B0614 | ||||
| 94150-80600 | ||||
| 96132-51100 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
