MHU38L-AWXGKW (2005)
Toyota Lexus Rx400h

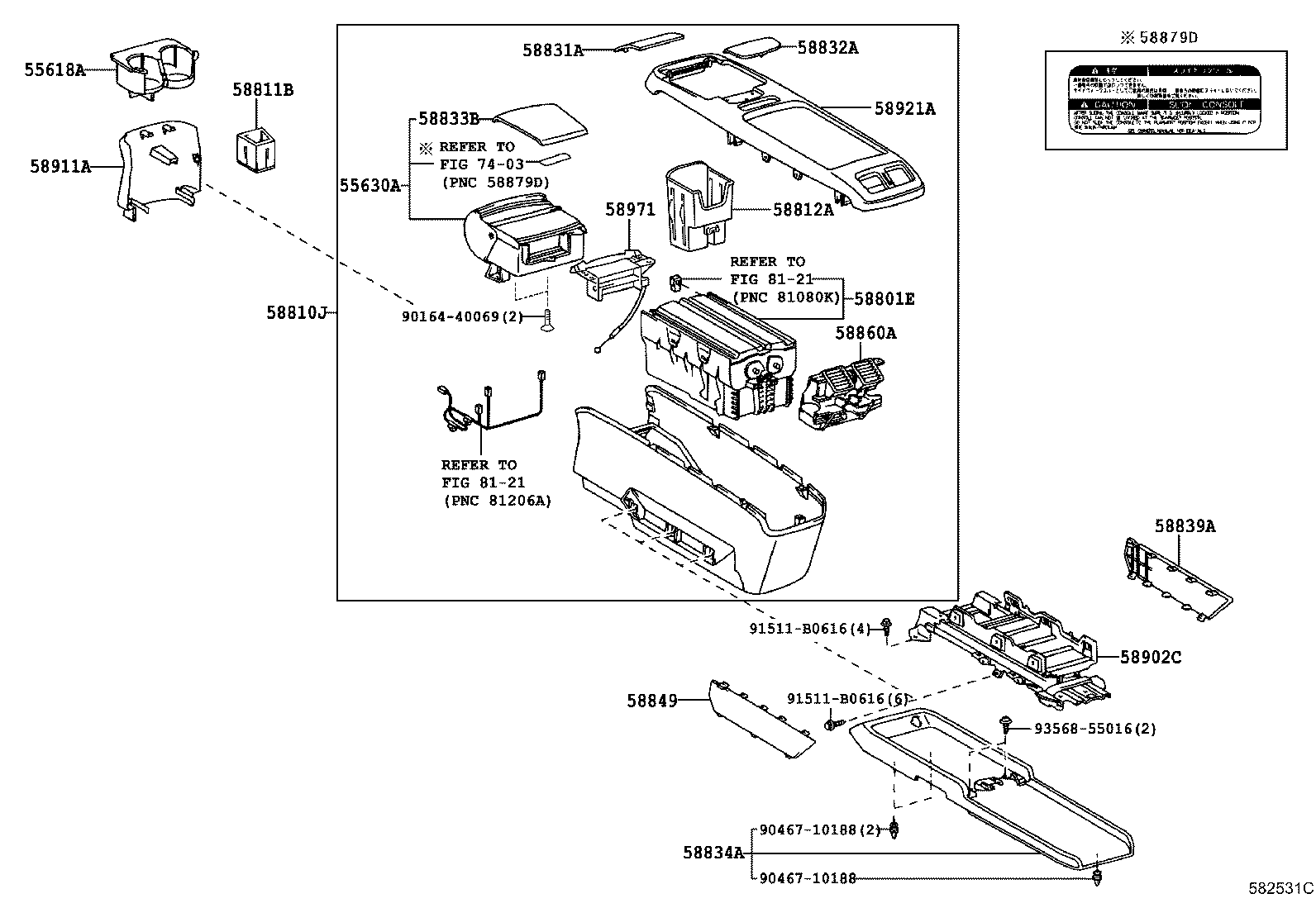

(0503-0601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-48071 |
MHU38..LHD |
1 | ||
| 55618-48100 |
MHU38..LHD |
1 | ||
| 55630A - HOLDER, REAR CONSOLE BOX, CUP | ||||
| 55630-48011A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 55630-48011B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48070C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48011C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48040B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 55630-48070B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48090B1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48070B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48090B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48100B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 55630-48100C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 55630-48120B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 55630-48040C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 55630-48090C1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48090C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48100A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 55630-48070A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 55630-48040A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 55630-48120C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,BLACK,TRIM2# |
1 | ||
| 55630-48070B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 55630-48070B2 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 55630-48090B2 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 55630-48070C0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48090A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 55630-48120A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 55630-48090B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 58801E - BOX SUB-ASSY, CONSOLE, UPPER | ||||
| 58801-48050B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58801-48050C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58801-48050A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-48071C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48170B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58810-48300C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48170A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58810-48310B1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48310C1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48400B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58810-48170C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58810-48300B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48300B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48310A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 58810-48400A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58810-48300A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 58810-48071A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 58810-48430A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 58810-48400C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58810-48071B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48310C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48310B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48300B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 58810-48430B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-48430C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-48300B2 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 58810-48300C0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48310B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 58810-48310B2 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58811-48020 |
MHU38 |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-48020 |
MHU38 |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58831-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58831-48040B0 |
MHU38 SILVER,TRIM0#,1#,2# |
1 | ||
| 58831-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58831-48010B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58831-48010E0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58831-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58831-48010B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58831-48010E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58832-48040B0 |
MHU38 SILVER,TRIM0#,1#,2# |
1 | ||
| 58832-48010E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM1#,2# |
1 | ||
| 58832-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58832-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58832-48010B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58832-48010E0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58832-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0# |
1 | ||
| 58832-48010E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,2# |
1 | ||
| 58832-48010B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-48050B1 |
MHU38 SILVER,TRIM0#,1#,2# |
1 | ||
| 58833-48020E0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58833-48020E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58833-48020E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58833-48020B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58833-48020E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58833-48020E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58833-48020E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58833-48020B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-48030C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58834-48030A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58834-48030B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58839-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58839-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58849 - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58849-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58849-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58860-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58860-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-48010 |
MHU38 |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58911-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58911-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-48040A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58921-48040C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58921-48040B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-48020 |
MHU38 |
1 | ||
| Common parts | ||||
| 90467-10188 | ||||
| 91511-B0616 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||

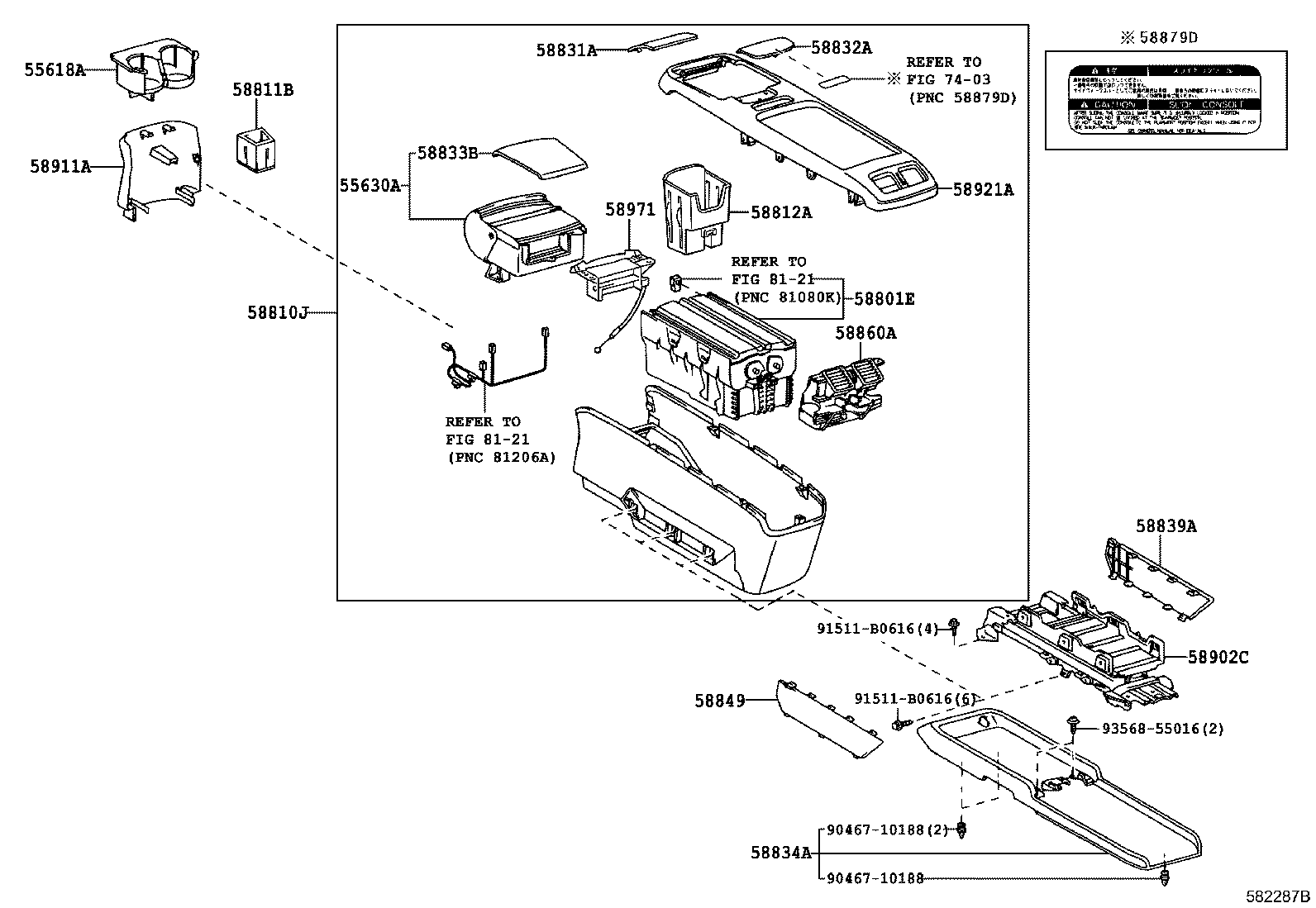

(0601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-48071 |
MHU38..LHD |
1 | ||
| 55618-48100 |
MHU38..LHD |
1 | ||
| 55630A - HOLDER, REAR CONSOLE BOX, CUP | ||||
| 55630-48011A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 55630-48011B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48070C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48011C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48040B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 55630-48070B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48090B1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48070B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48090B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 55630-48100B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 55630-48100C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 55630-48120B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 55630-48040C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 55630-48090C1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48090C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48100A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 55630-48070A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 55630-48040A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 55630-48120C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,BLACK,TRIM2# |
1 | ||
| 55630-48070B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 55630-48070B2 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 55630-48090B2 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 55630-48070C0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 55630-48090A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 55630-48120A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 55630-48090B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 58801E - BOX SUB-ASSY, CONSOLE, UPPER | ||||
| 58801-48050B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58801-48050C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58801-48050A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-48071C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48170B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58810-48300C1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48170A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58810-48310B1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48310C1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48400B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58810-48170C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58810-48300B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48300B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48310A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 58810-48400A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58810-48300A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 58810-48071A0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0# |
1 | ||
| 58810-48430A0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 58810-48400C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58810-48071B1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48310C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48310B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1# |
1 | ||
| 58810-48300B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 58810-48430B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-48430C0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-48300B2 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 58810-48300C0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2# |
1 | ||
| 58810-48310B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM11 |
1 | ||
| 58810-48310B2 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM12 |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58811-48020 |
MHU38 |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-48020 |
MHU38 |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58831-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58831-48040B0 |
MHU38 SILVER,TRIM0#,1#,2# |
1 | ||
| 58831-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58831-48010B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58831-48010E0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58831-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58831-48010B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58831-48010E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58832-48040B0 |
MHU38 SILVER,TRIM0#,1#,2# |
1 | ||
| 58832-48010E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM1#,2# |
1 | ||
| 58832-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58832-48010E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58832-48010B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58832-48010E0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58832-48010E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0# |
1 | ||
| 58832-48010E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,2# |
1 | ||
| 58832-48010B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-48050B1 |
MHU38 SILVER,TRIM0#,1#,2# |
1 | ||
| 58833-48020E0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58833-48020E0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,MD.BROWN,TRIM11,22 |
1 | ||
| 58833-48020E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58833-48020B0 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58833-48020E1 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58833-48020E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,11,22 |
1 | ||
| 58833-48020E1 |
MHU38 STEERING WHEEL-WOOD W/AUDIO SW,LIGHTBROWN,TRIM0#,1#,2# |
1 | ||
| 58833-48020B0 |
MHU38..LHD CHINA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,DK.GRAY,TRIM12 |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-48030C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58834-48030A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58834-48030B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58839-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58839-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58849 - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58849-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58849-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58860-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58860-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-48010 |
MHU38 |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-48020A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58911-48020B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58911-48020C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-48040A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 58921-48040C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 58921-48040B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-48020 |
MHU38 |
1 | ||
| Common parts | ||||
| 90164-40069 | ||||
| 90467-10188 | ||||
| 91511-B0616 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
