MHU38L-AWXGKW (2005)
Toyota Lexus Rx400h
Production
Mar 2005
-
Dec 2008
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0503- )

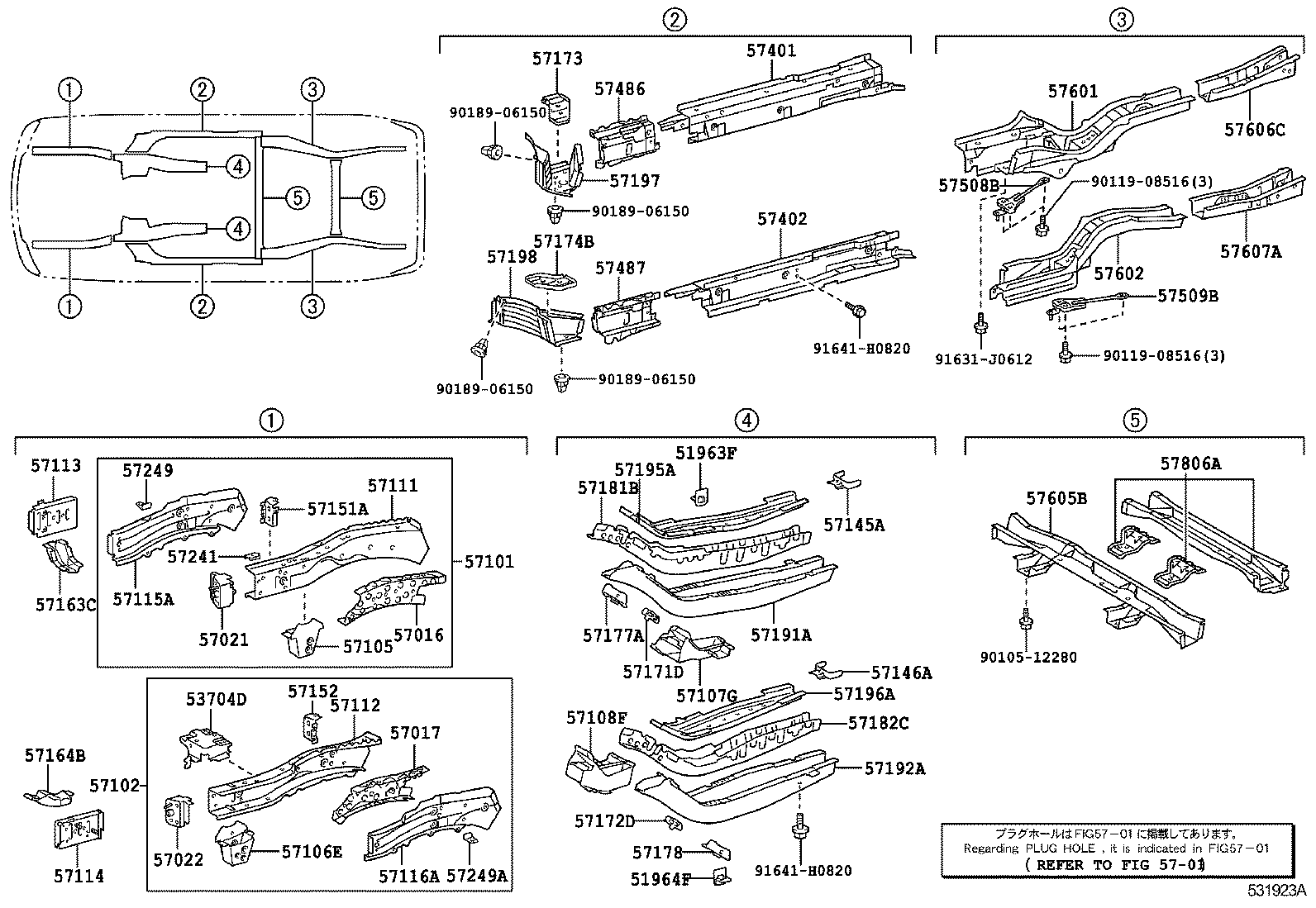

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963F - HOOK, TRANSPORT | ||||
| 51961-48040 |
MHU38 |
1 | ||
| 51961-48020 |
MHU38 |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51961-48020 |
MHU38 |
1 | ||
| 51961-48040 |
MHU38 |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-48040 |
MHU38 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-48020 |
MHU38 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-48020 |
MHU38 |
1 | ||
| 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-48012 |
MHU38 |
1 | ||
| 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-48012 |
MHU38 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57027-48900 |
MHU38 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57028-48902 |
MHU38 |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-28120 |
MHU38 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-28120 |
MHU38 |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-48030 |
MHU38 |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-48030 |
MHU38 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-48020 |
MHU38 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-48021 |
MHU38 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-48021 |
MHU38 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-48021 |
MHU38 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-48020 |
MHU38 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-48020 |
MHU38 |
1 | ||
| 57145A - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH | ||||
| 57145-48030 |
MHU38 |
1 | ||
| 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH | ||||
| 57146-48030 |
MHU38 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-48020 |
MHU38 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-48020 |
MHU38 |
1 | ||
| 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-48020 |
MHU38 |
1 | ||
| 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-48020 |
MHU38 |
1 | ||
| 57171D - PLATE, FRONT SIDE MEMBER TO FLOOR, RH | ||||
| 57171-48030 |
MHU38 |
1 | ||
| 57172D - PLATE, FRONT SIDE MEMBER TO FLOOR, LH | ||||
| 57172-48020 |
MHU38 |
1 | ||
| 57173 - BOX, TORQUE, FRONT NO.2 RH | ||||
| 57173-48020 |
MHU38 |
1 | ||
| 57174B - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH | ||||
| 57174-48020 |
MHU38 |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-48010 |
MHU38 |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57178-48010 |
MHU38 |
1 | ||
| 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57181-48020 |
MHU38 |
1 | ||
| 57182C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH | ||||
| 57182-48020 |
MHU38 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-48020 |
MHU38 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-48020 |
MHU38 |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-48020 |
MHU38 |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-48020 |
MHU38 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-48030 |
MHU38 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-48030 |
MHU38 |
1 | ||
| 57241 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH | ||||
| 57241-48010 |
MHU38 |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-10040 |
MHU38 |
1 | ||
| 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH | ||||
| 57249-10040 |
MHU38 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-48030 |
MHU38 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-48030 |
MHU38 |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-48030 |
MHU38 |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-48030 |
MHU38 |
1 | ||
| 57508B - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 57508-48030 |
MHU38 |
1 | ||
| 57509B - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 57509-48030 |
MHU38 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-48905 |
MHU38 |
1 | ||
| 57601-48911 |
MHU38 |
1 | ||
| 57601-48909 |
MHU38 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-48905 |
MHU38 |
1 | ||
| 57602-48910 |
MHU38 |
1 | ||
| 57602-48908 |
MHU38 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-48040 |
MHU38 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-48050 |
MHU38 |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-48010 |
MHU38 |
1 | ||
| 57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 | ||||
| 57806-48020 |
MHU38 |
1 | ||
| Common parts | ||||
| 90105-12280 | ||||
| 90119-08516 | ||||
| 90189-06150 | ||||
| 91631-J0612 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
