GYL26R-ARXGBW (2018)
Toyota Lexus Rx350l/450hl
Production
Mar 2018
-
Aug 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1803- )2GRFXS

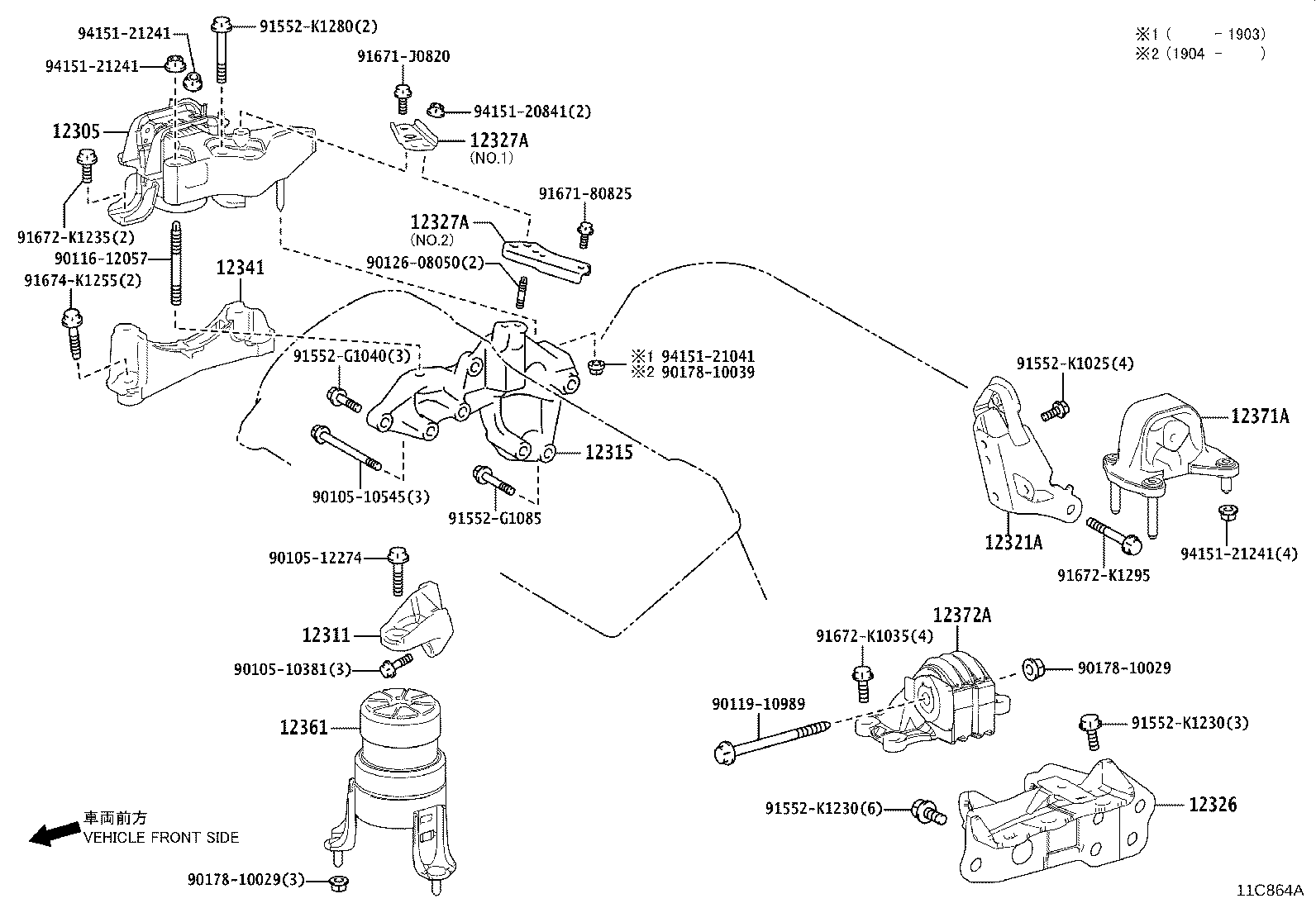

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-31080 |
2GRFXS..GYL26 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-31200 |
2GRFXS..GYL26 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-31160 |
2GR#..GGL26,GYL26 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31210 |
2GRFXS..GYL26 |
1 | ||
| 12326 - BRACKET, ENGINE MOUNTING STAY | ||||
| 12325-31060 |
2GRFXS..GYL26 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31120 |
2GR#..GGL26,GYL26 NO.2 |
1 | ||
| 12327-31110 |
2GR#..GGL26,GYL26 NO.1 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31120 |
2GR#..GGL26,GYL26 NO.2 |
1 | ||
| 12327-31110 |
2GR#..GGL26,GYL26 NO.1 |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-31040 |
2GR#..GGL26,GYL26 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31480 |
2GRFXS..GYL26 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-31440 |
2GRFXS..GYL26 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-31110 |
2GRFXS..GYL26 |
1 | ||
| Common parts | ||||
| 90105-10381 | ||||
| 90105-10545 | ||||
| 90105-12274 | ||||
| 90116-12057 | ||||
| 90119-10989 | ||||
| 90126-08050 | ||||
| 90178-10029 | ||||
| 90178-10039 | ||||
| 91552-G1040 | ||||
| 91552-G1085 | ||||
| 91552-K1025 | ||||
| 91552-K1230 | ||||
| 91552-K1280 | ||||
| 91671-80825 | ||||
| 91671-J0820 | ||||
| 91672-K1035 | ||||
| 91672-K1235 | ||||
| 91672-K1295 | ||||
| 91674-K1255 | ||||
| 94151-20841 | ||||
| 94151-21041 | ||||
| 94151-21241 | ||||
