GYL26L-ARXGBW (2018)

Toyota Lexus Rx350l/450hl

Production Mar 2018 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1803- )2GRFXS

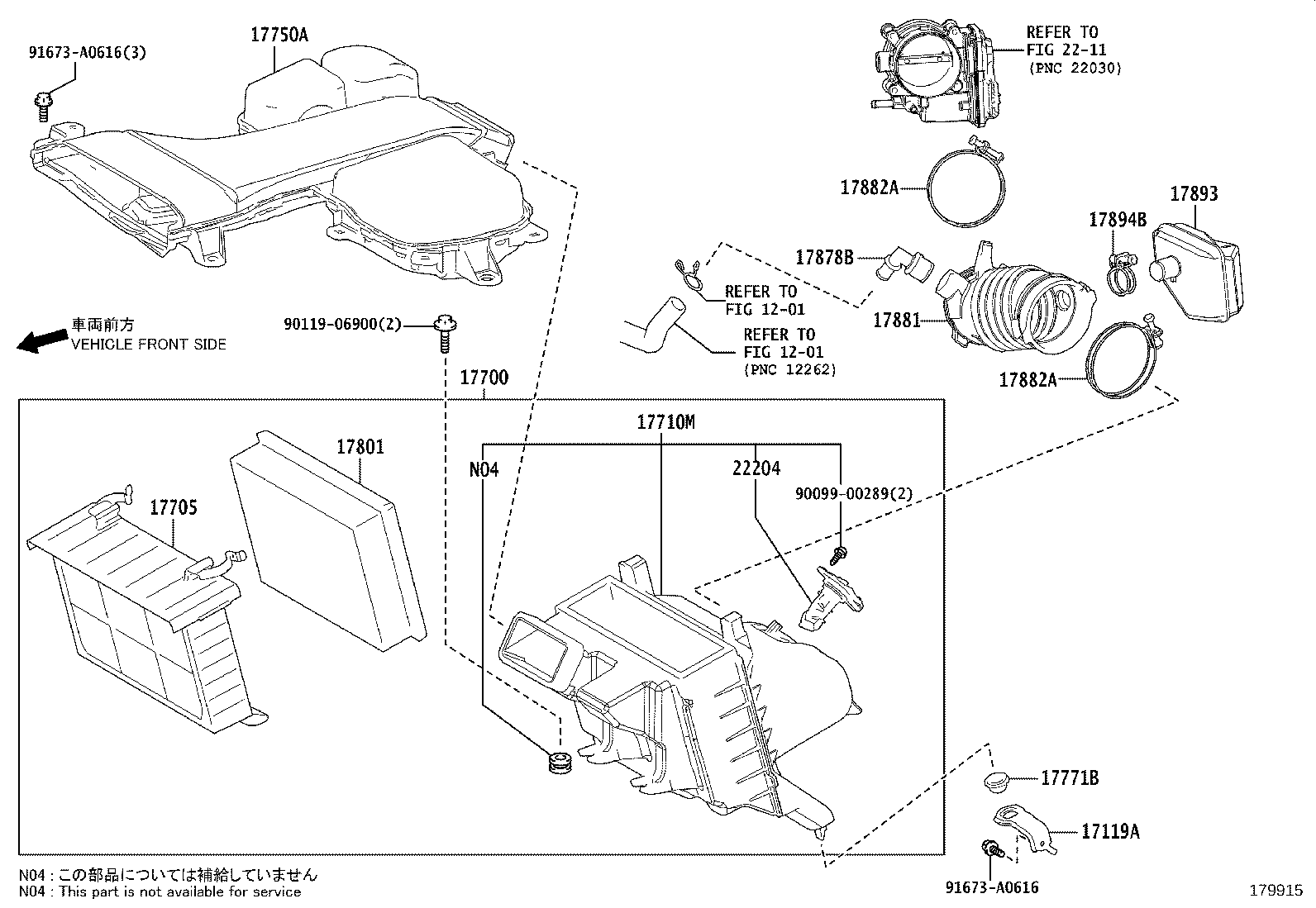

Click highlighted areas on diagram

diagram 1201 1201 17119A 17700 17705 17710M 17750A 17771B 17801 17878B 17881 17882A 17882A 17893 17894B 2211 22204 9009900289 9011906900 91673A0616 91673A0616
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-31130

2GRFXS..GYL26

 1
17700 - CLEANER ASSY, AIR
17700-31B30

2GRFXS..GYL26

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31480

2GRFXS..GYL26

 1
17710M - CLEANER ASSY, AIR (WITHOUT ELEMENT)
17710-31580

2GRFXS..GYL26

 1
17750A - INLET ASSY, AIR CLEANER
17750-31050

2GRFXS..GYL26

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90480-18006

2GR#..GGL26,GYL26

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-45031

2GRFXS..GYL26

(J)

 1
17801-0P090

2GRFXS..GYL26

(L)

 1
17878B - TUBE, VENTILATION
17878-31020

2GR#..GGL26,GYL26

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-31411

2GRFXS..GYL26

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

2GR#..GGL26,GYL26

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

2GR#..GGL26,GYL26

 2
17893 - RESONATOR, INTAKE AIR
17893-31180

2GRFXS..GYL26

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10330

2GRFXS..GYL26

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

2GR#..GGL26,GYL26

 1
Common parts
90099-00289
90119-06900
91673-A0616
Linked diagrams
1201
2211
