GGL26L-ARZGBW (2017)

Toyota Lexus Rx350l/450hl

Production Dec 2017 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-1908)GGL26

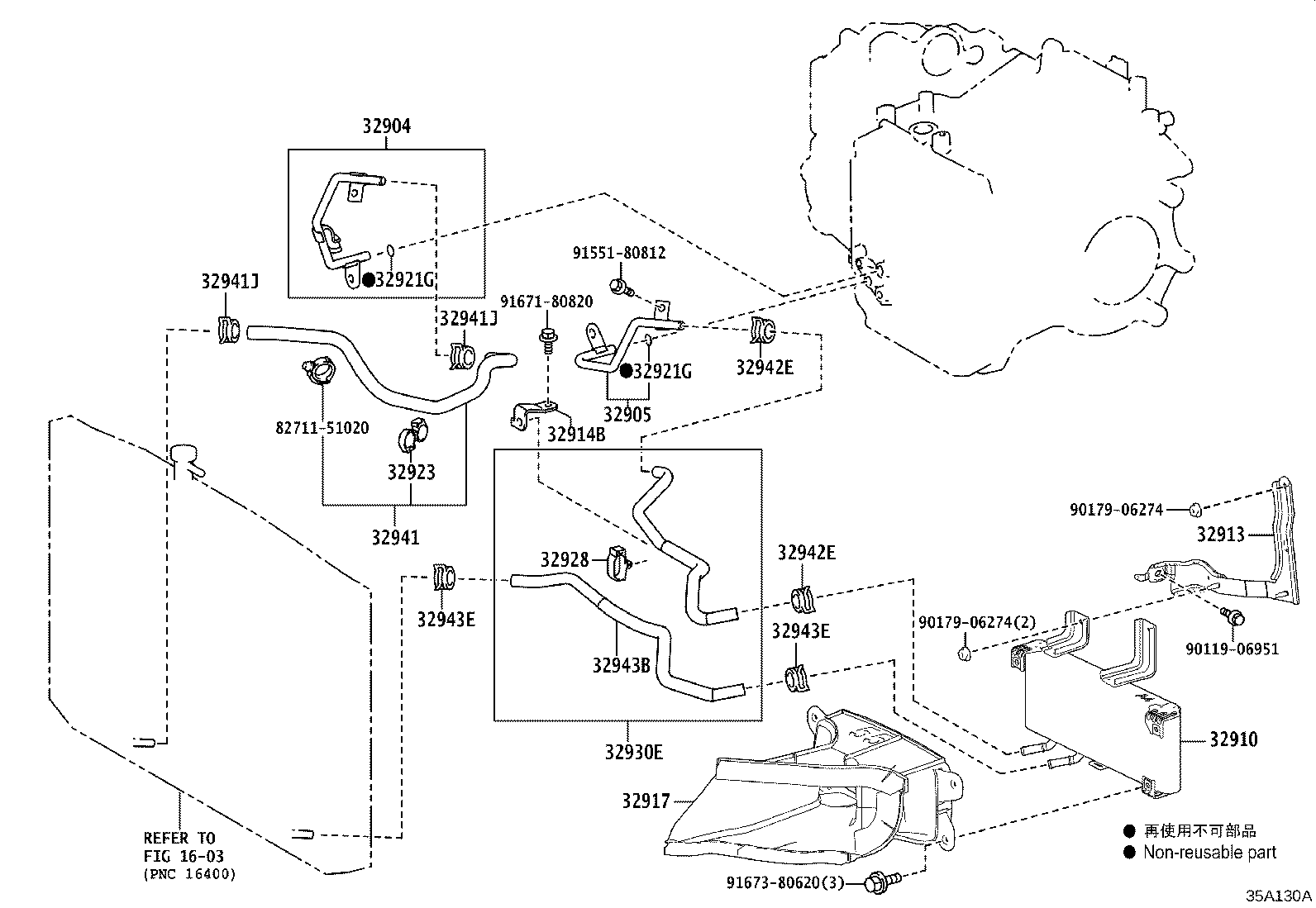

Click highlighted areas on diagram

U881F

diagram 1603 32904 32905 32910 32913 32914B 32917 32921G 32921G 32923 32928 32930E 32941 32941J 32941J 32942E 32942E 32943B 32943E 32943E 8271151020 9011906951 9017906274 9017906274 9155180812 9167180820 9167380620
Part # Description Qty Price
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32904-48200

GGL26

 1
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32905-48240

GGL26

 1
32910 - COOLER ASSY, OIL
32910-48200

GGL26

 1
32913 - BRACKET, OIL COOLER
32913-48050

GGL26

 1
32914B - STAY, TRANSMISSION OIL COOLER
32914-48010

GGL26

 1
32917 - DUCT, TRANSMISSION OIL COOLER AIR
32917-48060

GGL26

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11033

GGL26

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11033

GGL26

 2
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-45010

GGL26

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-34030

GGL26

 1
32930E - HOSE ASSY, TRANSMISSION OIL COOLER, NO.1
32930-48070

GGL26

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32930-48050

GGL26

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGL26

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGL26

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGL26

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGL26

 2
32943B - HOSE, TRANSMISSION OIL COOLER
32943-48170

GGL26

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GGL26

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GGL26

 2
Common parts
82711-51020
90119-06951
90179-06274
91551-80812
91671-80820
91673-80620
Linked diagrams
1603
