GGL26L-ARZGBW (2019)
Toyota Lexus Rx350l/450hl
(1908- )

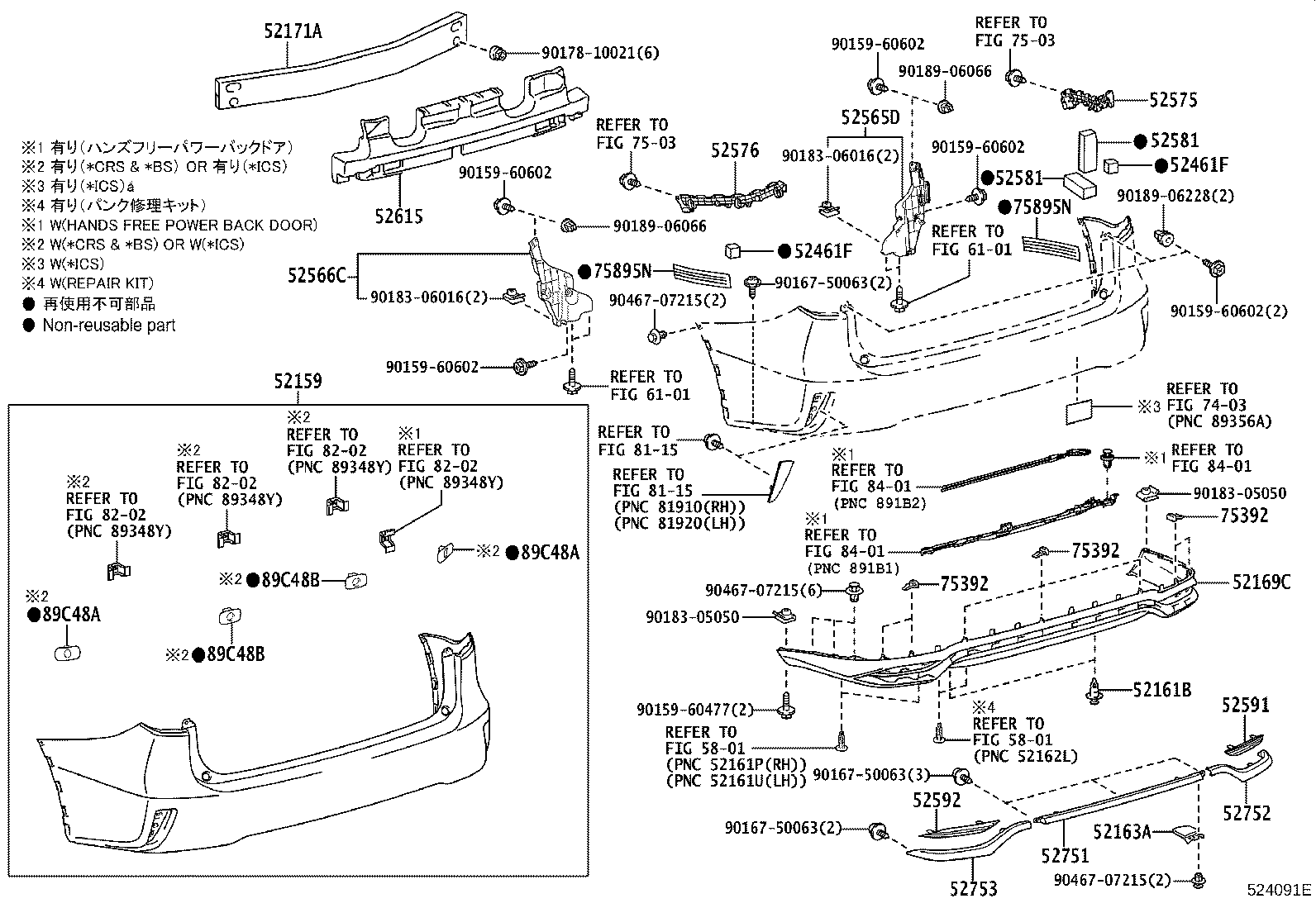

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-48954 |
GGL26,GYL26 PAINT REQ.,W(*HPBD) |
1 | ||
| 52159-48957 |
GGL26,GYL26 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),W(*HPBD) |
1 | ||
| 52159-48938 |
GGL26,GYL26 PAINT REQ.,W(*PBD) |
1 | ||
| 52159-48958 |
GGL26,GYL26 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),W(*PBD) |
1 | ||
| 52159-48957 |
GGL26,GYL26 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB),W(*HPBD) |
1 | ||
| 52159-48958 |
GGL26,GYL26 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB),W(*PBD) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GGL26,GYL26 |
2 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-48060 |
GGL26,GYL26 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-48141 |
GGL26,GYL26 NO PAINT REQ. |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-48230 |
GGL26,GYL26 |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-48050 |
GGL26,GYL26 |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-48050 |
GGL26,GYL26 |
2 | ||
| 52565D - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-48040 |
GGL26,GYL26 |
1 | ||
| 52566C - RETAINER, REAR BUMPER, LOWER LH | ||||
| 52566-48030 |
GGL26,GYL26 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-48070 |
GGL26,GYL26 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-48070 |
GGL26,GYL26 |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-48040 |
GGL26,GYL26 |
2 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-48040 |
GGL26,GYL26 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-48130 |
GGL26,GYL26 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-48060 |
GGL26,GYL26 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-48250 |
GGL26,GYL26 |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-48050 |
GGL26 GEORGIA SPEC |
1 | ||
| 52751-48050 |
GGL26 KAZAKHSTAN SPEC |
1 | ||
| 52751-48050 |
GGL26 ADRIA(SLOVENIA) SPEC |
1 | ||
| 52751-48050 |
GGL26 AZERBAIJAN SPEC |
1 | ||
| 52751-48050 |
GGL26 SERBIA SPEC |
1 | ||
| 52751-48050 |
GGL26 BELARUS SPEC |
1 | ||
| 52751-48060 |
GGL26 |
1 | ||
| 52751-48050 |
GGL26 UKRAINE SPEC |
1 | ||
| 52751-48050 |
GGL26 ARMENIA SPEC |
1 | ||
| 52752 - MOULDING, REAR BUMPER SIDE, RH | ||||
| 52752-48020 |
GGL26 UKRAINE SPEC |
1 | ||
| 52752-48020 |
GGL26 ARMENIA SPEC |
1 | ||
| 52752-48020 |
GGL26 AZERBAIJAN SPEC |
1 | ||
| 52752-48020 |
GGL26 BELARUS SPEC |
1 | ||
| 52752-48020 |
GGL26 GEORGIA SPEC |
1 | ||
| 52752-48020 |
GGL26 ADRIA(SLOVENIA) SPEC |
1 | ||
| 52752-48020 |
GGL26 SERBIA SPEC |
1 | ||
| 52752-48030 |
GGL26 |
1 | ||
| 52752-48020 |
GGL26 KAZAKHSTAN SPEC |
1 | ||
| 52753 - MOULDING, REAR BUMPER SIDE, LH | ||||
| 52753-48020 |
GGL26 ARMENIA SPEC |
1 | ||
| 52753-48020 |
GGL26 KAZAKHSTAN SPEC |
1 | ||
| 52753-48020 |
GGL26 GEORGIA SPEC |
1 | ||
| 52753-48020 |
GGL26 UKRAINE SPEC |
1 | ||
| 52753-48020 |
GGL26 BELARUS SPEC |
1 | ||
| 52753-48020 |
GGL26 SERBIA SPEC |
1 | ||
| 52753-48030 |
GGL26 |
1 | ||
| 52753-48020 |
GGL26 AZERBAIJAN SPEC |
1 | ||
| 52753-48020 |
GGL26 ADRIA(SLOVENIA) SPEC |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL26,GYL26 |
7 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL26,GYL26 |
7 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL26,GYL26 |
7 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-53010 |
GGL26,GYL26 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-53010 |
GGL26,GYL26 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
2 | ||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
2 | ||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
2 | ||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
2 | ||
| 89348-50130 |
GGL26,GYL26 PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
2 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90167-50063 | ||||
| 90178-10021 | ||||
| 90183-05050 | ||||
| 90183-06016 | ||||
| 90189-06066 | ||||
| 90189-06228 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 6101 | ||||
| 7403 | ||||
| 7503 | ||||
| 8115 | ||||
| 8202 | ||||
| 8401 | ||||
