Toyota Lexus rx300/330/350 MCU38 SPEAKER

MCU38L-AWAGKV (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006

Engine 3MZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

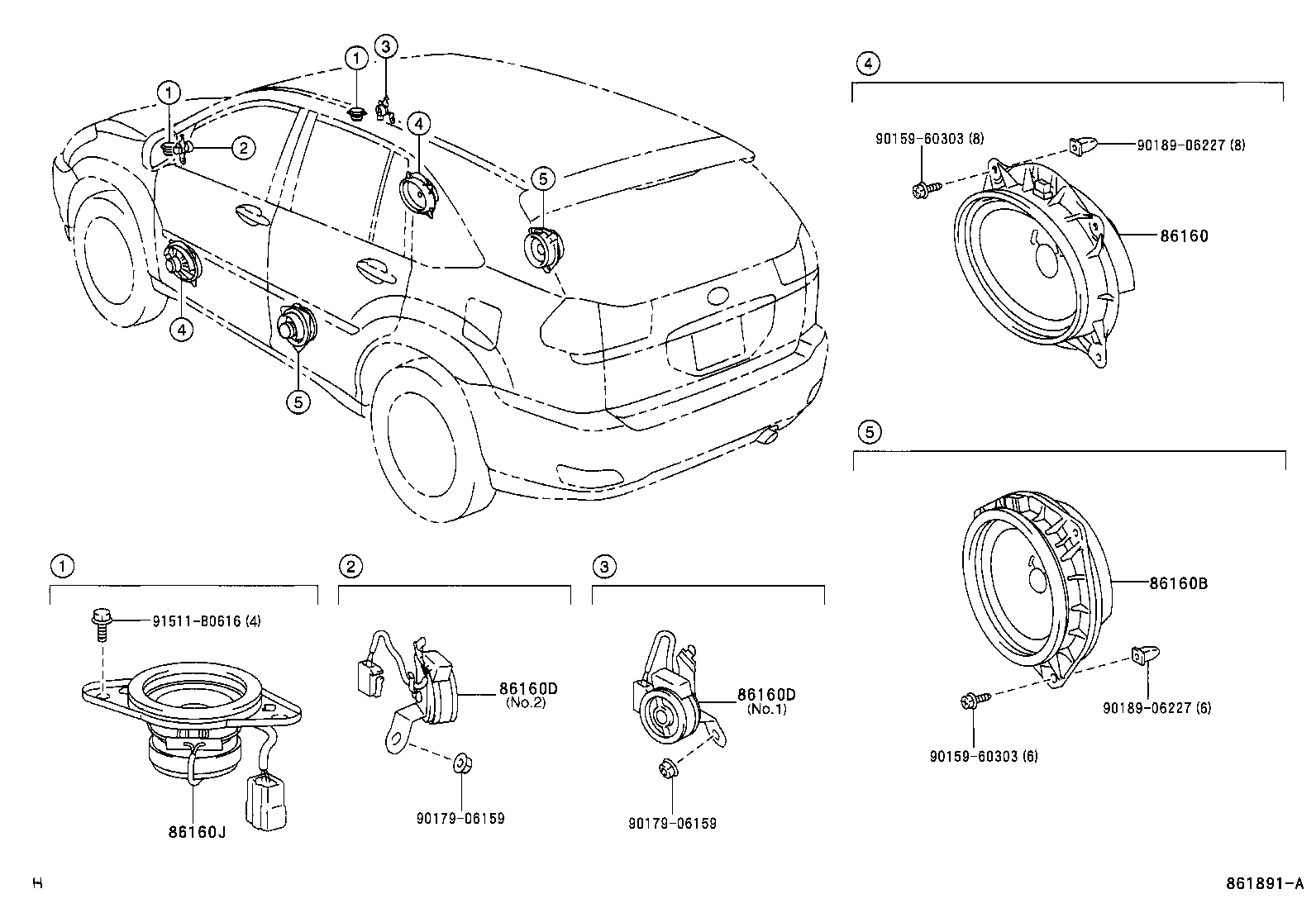

Click highlighted areas on diagram

Part #	Description	Period	Qty
86160 - SPEAKER ASSY, FRONT NO.1
86160-0W560	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	2
86160-0E070	MCU3#	02/2003 - 01/2006	2
86160B - SPEAKER ASSY, REAR
86160-48110	MCU3#	02/2003 - 01/2006	2
86160-0W570	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-0E040	MCU3# NO.1	02/2003 - 01/2006	1
86160-0E050	MCU3# NO.2	02/2003 - 01/2006	1
86160-0E150	MCU38..GCC LUXURY PACKAGE,NO.1	02/2003 - 01/2006	1
86160-0E160	MCU38..GCC LUXURY PACKAGE,NO.2	02/2003 - 01/2006	1
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-0E040	MCU3# NO.1	02/2003 - 01/2006	1
86160-0E050	MCU3# NO.2	02/2003 - 01/2006	1
86160-0E150	MCU38..GCC LUXURY PACKAGE,NO.1	02/2003 - 01/2006	1
86160-0E160	MCU38..GCC LUXURY PACKAGE,NO.2	02/2003 - 01/2006	1
86160J - SPEAKER ASSY, FRONT NO.3
86160-0E030	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	3
86160-0E060	MCU3#	02/2003 - 01/2006	2
Common parts
90159-60303
90179-06159
90189-06227
91511-B0616

Click highlighted areas on diagram

W(11 SPEAKER)

Part #	Description	Period	Qty
86160 - SPEAKER ASSY, FRONT NO.1
86160-0W560	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	2
86160-0E070	MCU3#	02/2003 - 01/2006	2
86160B - SPEAKER ASSY, REAR
86160-48110	MCU3#	02/2003 - 01/2006	2
86160-0W570	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-0E040	MCU3# NO.1	02/2003 - 01/2006	1
86160-0E050	MCU3# NO.2	02/2003 - 01/2006	1
86160-0E150	MCU38..GCC LUXURY PACKAGE,NO.1	02/2003 - 01/2006	1
86160-0E160	MCU38..GCC LUXURY PACKAGE,NO.2	02/2003 - 01/2006	1
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-0E040	MCU3# NO.1	02/2003 - 01/2006	1
86160-0E050	MCU3# NO.2	02/2003 - 01/2006	1
86160-0E150	MCU38..GCC LUXURY PACKAGE,NO.1	02/2003 - 01/2006	1
86160-0E160	MCU38..GCC LUXURY PACKAGE,NO.2	02/2003 - 01/2006	1
86160J - SPEAKER ASSY, FRONT NO.3
86160-0E030	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	3
86160-0E060	MCU3#	02/2003 - 01/2006	2
Common parts
90159-60303
90179-06159
90189-06227
91511-B0616
