Toyota Lexus rx300/330/350 MCU38 STEERING COLUMN & SHAFT

MCU38L-AWAGKV (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006

Engine 3MZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0302- )MCU38 ; (0302- )GSU35,MCU35..EUR,GCC

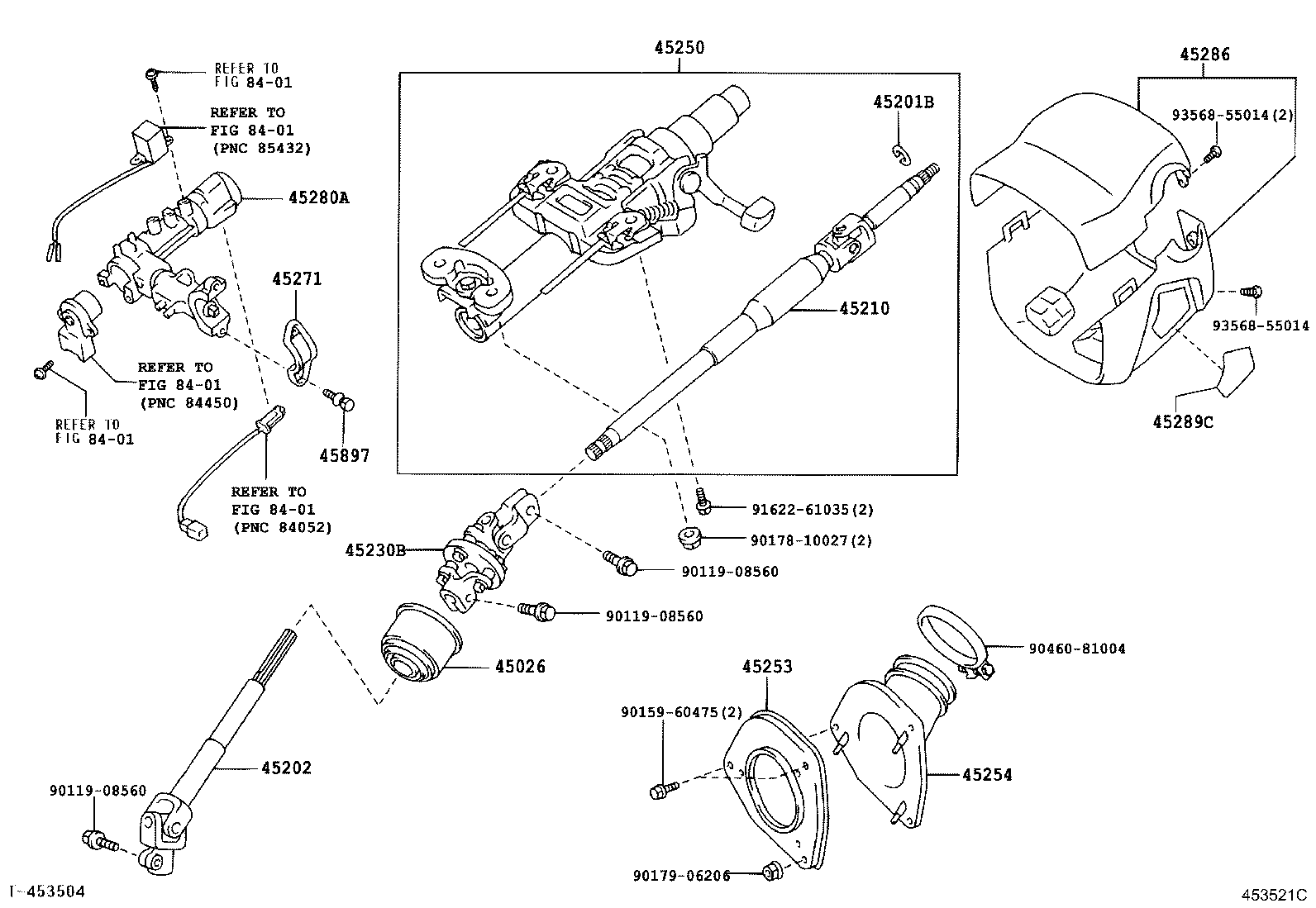

Click highlighted areas on diagram

W/O(TELESCOPIC STEERING)

Part #	Description	Period	Qty
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-48011	MCU3#	02/2003 - 01/2006	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17004	MCU3#..EUR,GCC T=1.20	02/2003 - 01/2006	1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-48060	MCU3#..LHD	02/2003 - 01/2006	1
45210 - SHAFT ASSY, STEERING MAIN
45210-48020	MCU3#..EUR,GCC	02/2003 - 01/2006	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-48050	MCU3#	02/2003 - 01/2006	1
45250 - COLUMN ASSY, STEERING
45250-48030	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	1
45250-48050	MCU3#..EUR,GCC	02/2003 - 01/2006	1
45253 - COVER, STEERING COLUMN HOLE
45253-48040	MCU3#..LHD	02/2003 - 01/2006	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48040	MCU3#..LHD	02/2003 - 01/2006	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12060	MCU3#..EUR,GCC	02/2003 - 01/2006	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-48030	MCU38..GCC	02/2003 - 01/2006	1
45286 - COVER, STEERING COLUMN
45286-48900E0	MCU38..GCC SANDAL WOOD,TRIM0#	02/2003 - 01/2006	1
45286-48900C0	MCU3#..EUR,GCC BLACK,TRIM2#	02/2003 - 01/2006	1
45286-48902C0	MCU38..GCC LUXURY PACKAGE,BLACK,TRIM1#,2#	02/2003 - 01/2006	1
45286-48902E0	MCU3#..EUR,GCC LUXURY PACKAGE,SANDAL WOOD,TRIM0#	02/2003 - 01/2006	1
45289C - COVER, STEERING COLUMN, LWR NO.2
45289-48010E0	MCU3#..EUR,GCC SANDAL WOOD,TRIM0#	02/2003 - 01/2006	1
45289-48010C0	MCU3#..EUR,GCC BLACK,TRIM1#,2#	02/2003 - 01/2006	1
45897 - BOLT, STEERING LOCK SET
45897-12020	MCU3#	02/2003 - 01/2006	2
Common parts
90119-08560
90159-60475
90178-10027
90179-06206
90460-81004
91622-61035
93568-55014
Linked diagrams
8401

(0302- )

Click highlighted areas on diagram

W(TELESCOPIC STEERING)

Part #	Description	Period	Qty
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-48011	MCU3#	02/2003 - 01/2006	1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-48060	MCU3#..LHD	02/2003 - 01/2006	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-48050	MCU3#	02/2003 - 01/2006	1
45250 - COLUMN ASSY, STEERING
45250-48030	MCU38..GCC LUXURY PACKAGE	02/2003 - 01/2006	1
45250-48050	MCU3#..EUR,GCC	02/2003 - 01/2006	1
45253 - COVER, STEERING COLUMN HOLE
45253-48040	MCU3#..LHD	02/2003 - 01/2006	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48040	MCU3#..LHD	02/2003 - 01/2006	1
45286 - COVER, STEERING COLUMN
45286-48900E0	MCU38..GCC SANDAL WOOD,TRIM0#	02/2003 - 01/2006	1
45286-48900C0	MCU3#..EUR,GCC BLACK,TRIM2#	02/2003 - 01/2006	1
45286-48902C0	MCU38..GCC LUXURY PACKAGE,BLACK,TRIM1#,2#	02/2003 - 01/2006	1
45286-48902E0	MCU3#..EUR,GCC LUXURY PACKAGE,SANDAL WOOD,TRIM0#	02/2003 - 01/2006	1
45897 - BOLT, STEERING LOCK SET
45897-12020	MCU3#	02/2003 - 01/2006	2
Common parts
90119-08560
90159-60475
90178-10027
90179-06206
90460-81004
91622-61035
93568-55014
Linked diagrams
8401

MCU38L-AWAGKV (2003)

(0302- )MCU38 ; (0302- )GSU35,MCU35..EUR,GCC

(0302- )
