MCU38L-AWAGKV (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302-0601)3MZFE

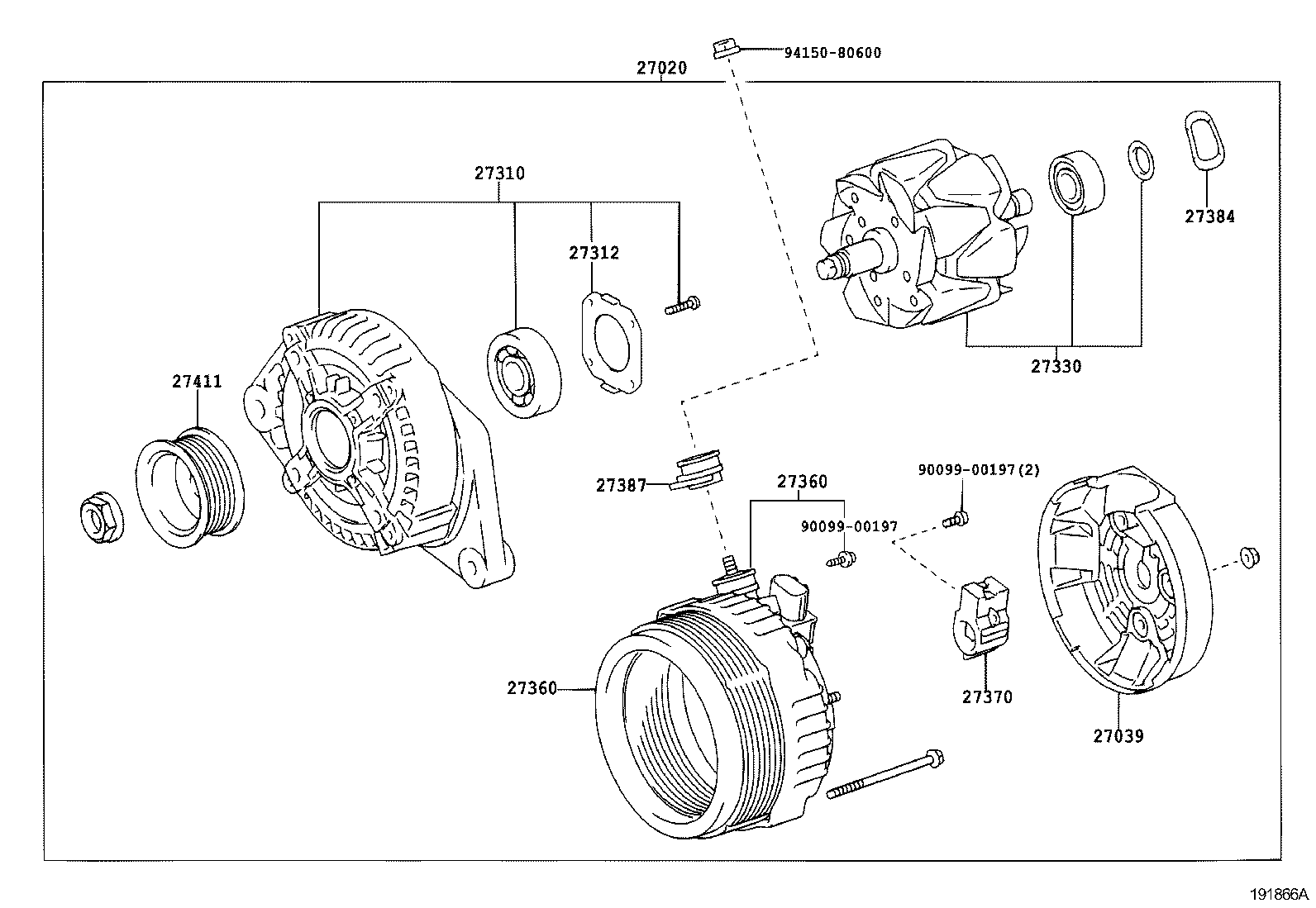

Click highlighted areas on diagram

12V 100A

diagram 27020 27039 27310 27312 27330 27360 27360 27370 27384 27387 27411 9009900197 9009900197 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-20270

3MZFE..MCU38

12V 100A

 1
27039 - COVER, ALTERNATOR REAR END
27039-27060

3MZFE..MCU38

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-20130

1MZFE,3MZFE..MCU3#

 1
27312 - PLATE, RETAINER
27312-72100

1MZFE,3MZFE..MCU3#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-30070

3MZFE..MCU38

 1
27360 - COIL ASSY, ALTERNATOR
27360-20220

3MZFE..MCU38

 1
27360 - COIL ASSY, ALTERNATOR
27360-20220

3MZFE..MCU38

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

3MZFE..MCU38

 1
27384 - WASHER
27384-50030

1MZFE,3MZFE..MCU3#

 1
27387 - INSULATOR, TERMINAL
27387-20130

1MZFE,3MZFE..MCU3#

 1
27411 - PULLEY, ALTERNATOR
27411-46080

1MZFE,3MZFE..MCU3#

 1
Common parts
90099-00197
94150-80600
