MCU38L-AWAGKV (2003)
Toyota Lexus Rx300/330/350
Production
Feb 2003
-
Jan 2006
Engine
3MZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0302- )3MZFE

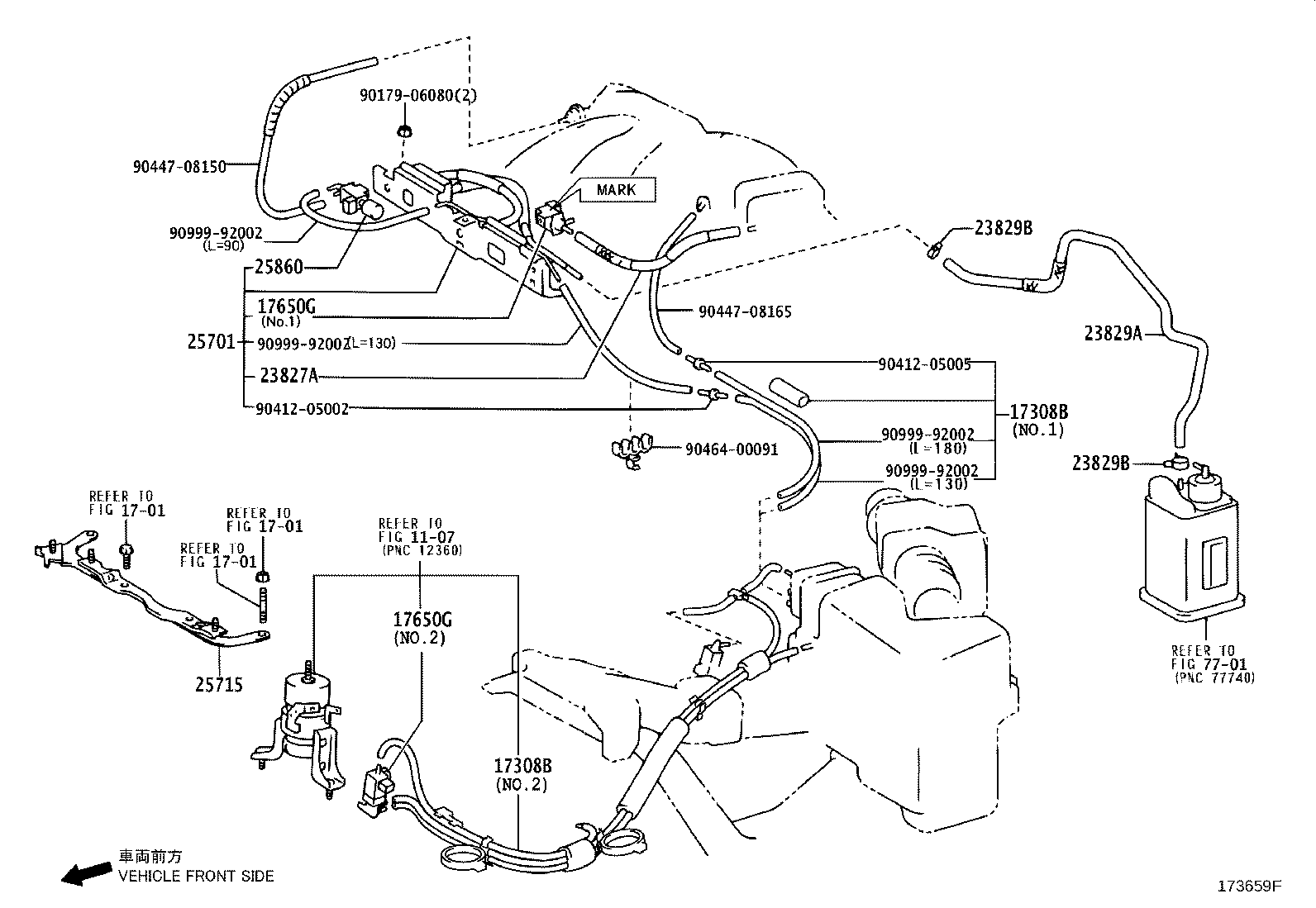

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 17308-20170 |
1MZFE,3MZFE..MCU3# NO.1 |
1 | ||
| 17308-20210 |
1MZFE,3MZFE..MCU3# NO.2 |
1 | ||
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 17308-20170 |
1MZFE,3MZFE..MCU3# NO.1 |
1 | ||
| 17308-20210 |
1MZFE,3MZFE..MCU3# NO.2 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12259 |
3MZFE..MCU38 NO.1 90910-12259 |
1 | ||
| 90910-12272 |
3MZFE..MCU38 NO.1 90910-12272 |
1 | ||
| 90910-12204 |
1MZFE,3MZFE..MCU3# NO.2 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12259 |
3MZFE..MCU38 NO.1 90910-12259 |
1 | ||
| 90910-12272 |
3MZFE..MCU38 NO.1 90910-12272 |
1 | ||
| 90910-12204 |
1MZFE,3MZFE..MCU3# NO.2 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-20060 |
3MZFE..MCU38 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-20120 |
1MZFE,3MZFE..MCU3# |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
1MZFE,3MZFE..MCU3# |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
1MZFE,3MZFE..MCU3# |
2 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-20220 |
3MZFE..MCU38 |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-20021 |
3MZFE..MCU38 |
1 | ||
| 25715-20020 |
3MZFE..MCU38 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-62010 |
3MZFE..MCU38 |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90412-05002 | ||||
| 90412-05005 | ||||
| 90447-08150 | ||||
| 90447-08165 | ||||
| 90464-00091 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1701 | ||||
| 7701 | ||||
