MCU38L-AWAGKV (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )3MZFE

Click highlighted areas on diagram

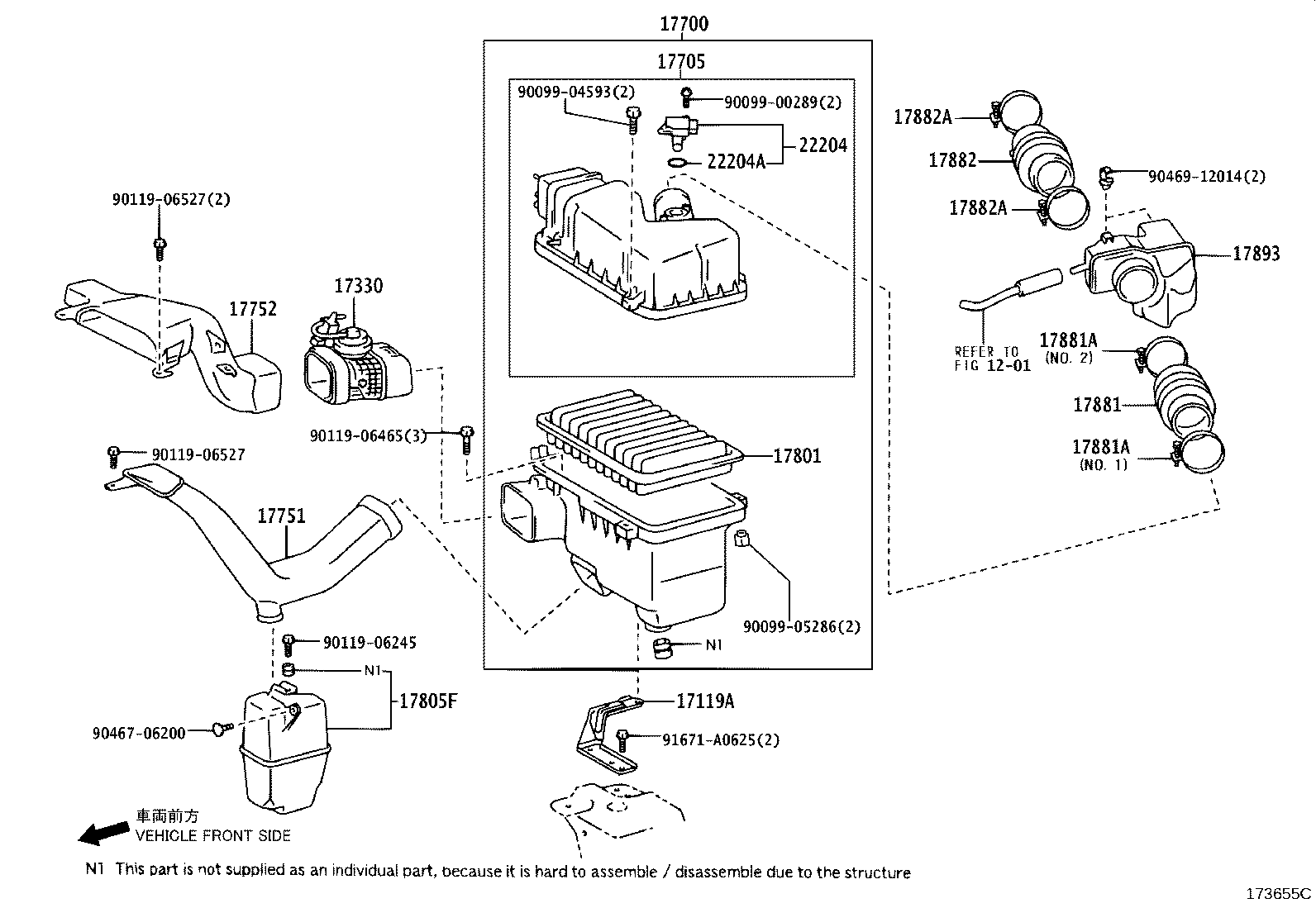

diagram 1201 17119A 17330 17700 17705 17751 17752 17801 17805F 17881 17881A 17881A 17882 17882A 17882A 17893 22204 22204A 9009900289 9009904593 9009905286 9011906245 9011906465 9011906527 9011906527 9046706200 9046912014 91671A0625
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-28050

1MZFE,3MZFE..MCU3#

 1
17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3
17330-20010

1MZFE,3MZFE..MCU3#

 1
17700 - CLEANER ASSY, AIR
17700-20190

3MZFE..MCU38

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-20180

3MZFE..MCU38

 1
17751 - INLET, AIR CLEANER, NO.1
17751-20030

1MZFE,3MZFE..MCU3#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-20030

1MZFE,3MZFE..MCU3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-20040

1MZFE,3MZFE..MCU3#

(J)

 1
17801-0H020

1MZFE,3MZFE..MCU3#

(L)

 1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-20040

1MZFE,3MZFE..MCU3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-20130

1MZFE,3MZFE..MCU3#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1MZFE,3MZFE..MCU3#

NO.2

 3
96111-10880

1MZFE,3MZFE..MCU3#

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1MZFE,3MZFE..MCU3#

NO.2

 3
96111-10880

1MZFE,3MZFE..MCU3#

NO.1

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-20161

1MZFE,3MZFE..MCU3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10850

1MZFE,3MZFE..MCU3#

 4
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10850

1MZFE,3MZFE..MCU3#

 4
17893 - RESONATOR, INTAKE AIR
17893-20080

1MZFE,3MZFE..MCU3#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

1MZFE,3MZFE..MCU3#

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

1MZFE,3MZFE..MCU3#

 1
Common parts
90099-00289
90099-04593
90099-05286
90119-06245
90119-06465
90119-06527
90467-06200
90469-12014
91671-A0625
Linked diagrams
1201
