MCU38L-AWAGKV (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )3MZFE

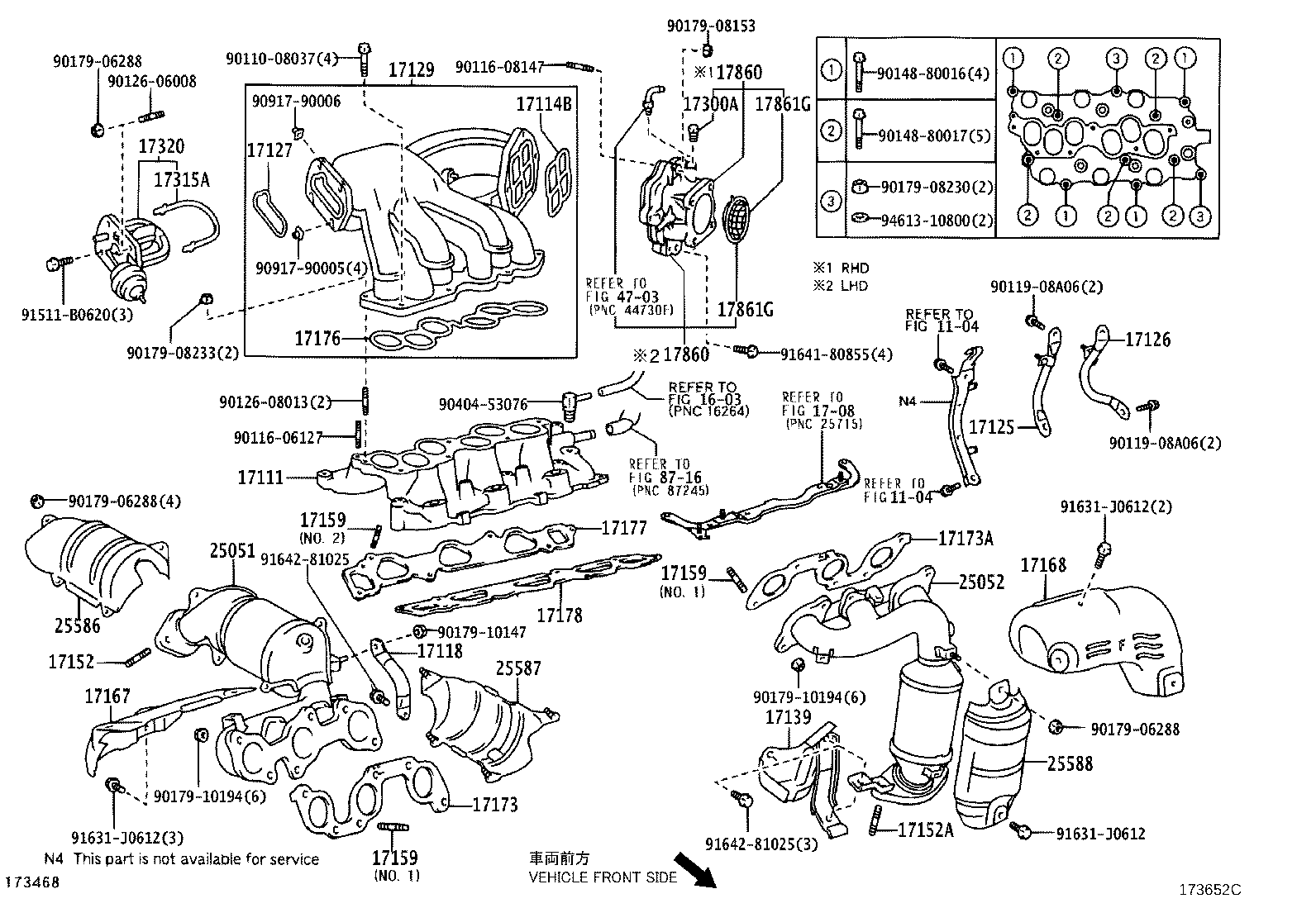

Click highlighted areas on diagram

diagram 1104 1104 1603 1708 17111 17114B 17118 17125 17126 17127 17129 17139 17152 17152A 17159 17159 17159 17167 17168 17173 17173A 17176 17177 17178 17300A 17315A 17320 17860 17860 17861G 17861G 25051 25052 25586 25587 25588 4703 8716 9011008037 9011606127 9011608147 9011908A06 9011908A06 9012606008 9012608013 9014880016 9014880017 9017906288 9017906288 9017906288 9017908153 9017908230 9017908233 9017910147 9017910194 9017910194 9040453076 9091790005 9091790006 91511B0620 91631J0612 91631J0612 91631J0612 9164180855 9164281025 9164281025 9461310800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-20070

3MZFE..MCU38

 1
17114B - GASKET, INTAKE FLANGE
17116-20010

1MZFE,3MZFE..MCU3#

 1
17118 - STAY, MANIFOLD
17118-20060

1MZFE,3MZFE..MCU3#

 1
17125 - STAY, SURGE TANK, NO.1
17125-20030

1MZFE,3MZFE..MCU3#

 1
17126 - STAY, SURGE TANK, NO.2
17126-20040

1MZFE,3MZFE..MCU3#

 1
17126-20030

1MZFE,3MZFE..MCU3#

 1
17127 - GASKET, SURGE TANK COVER
17127-20010

1MZFE,3MZFE..MCU3#

 1
17129 - TANK, INTAKE AIR SURGE
17109-20130

3MZFE..MCU38

 1
17139 - STAY, MANIFOLD, NO.2
17139-20060

1MZFE,3MZFE..MCU3#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1MZFE,3MZFE..MCU3#

 2
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1MZFE,3MZFE..MCU3#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10030

1MZFE,3MZFE..MCU3#

NO.1

 12
90126-08013

1MZFE,3MZFE..MCU3#

NO.2

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10030

1MZFE,3MZFE..MCU3#

NO.1

 12
90126-08013

1MZFE,3MZFE..MCU3#

NO.2

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10030

1MZFE,3MZFE..MCU3#

NO.1

 12
90126-08013

1MZFE,3MZFE..MCU3#

NO.2

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-20100

1MZFE,3MZFE..MCU3#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-20070

1MZFE,3MZFE..MCU3#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-20030

1MZFE,3MZFE..MCU3#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-20030

1MZFE,3MZFE..MCU3#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-20020

3MZFE..MCU38

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-20020

1MZFE,3MZFE..MCU3#

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-20020

1MZFE,3MZFE..MCU3#

 1
17315A - GASKET, INTAKE AIR CONTROL VALVE
17315-20010

1MZFE,3MZFE..MCU3#

 1
17320 - VALVE ASSY, INTAKE AIR CONTROL, NO.2
17320-20020

1MZFE,3MZFE..MCU3#..LHD

 1
17860 - CONNECTOR ASSY, INTAKE AIR
17860-20010

3MZFE..MCU38..GCC

 1
17860 - CONNECTOR ASSY, INTAKE AIR
17860-20010

3MZFE..MCU38..GCC

 1
17861G - GASKET, INTAKE AIR CONNECTOR
22271-20040

1MZFE,3MZFE..MCU3#

 1
17861G - GASKET, INTAKE AIR CONNECTOR
22271-20040

1MZFE,3MZFE..MCU3#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-20040

1MZFE,3MZFE..MCU3#

*115=TOYOTA/03-/Y

 1
25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2
25052-20190

1MZFE,3MZFE..MCU3#

*115=TOYOTA/03-/Y

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-20060

1MZFE,3MZFE..MCU3#

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-20040

1MZFE,3MZFE..MCU3#

 1
25588 - INSULATOR, MANIFOLD CONVERTER, NO.3
25588-20020

1MZFE,3MZFE..MCU3#

 1
Common parts
90110-08037
90116-06127
90116-08147
90119-08A06
90126-06008
90126-08013
90148-80016
90148-80017
90179-06288
90179-08153
90179-08230
90179-08233
90179-10147
90179-10194
90404-53076
90917-90005
90917-90006
91511-B0620
91631-J0612
91641-80855
91642-81025
94613-10800
