MCU35R-AWAGKW (2003)
Toyota Lexus Rx300/330/350

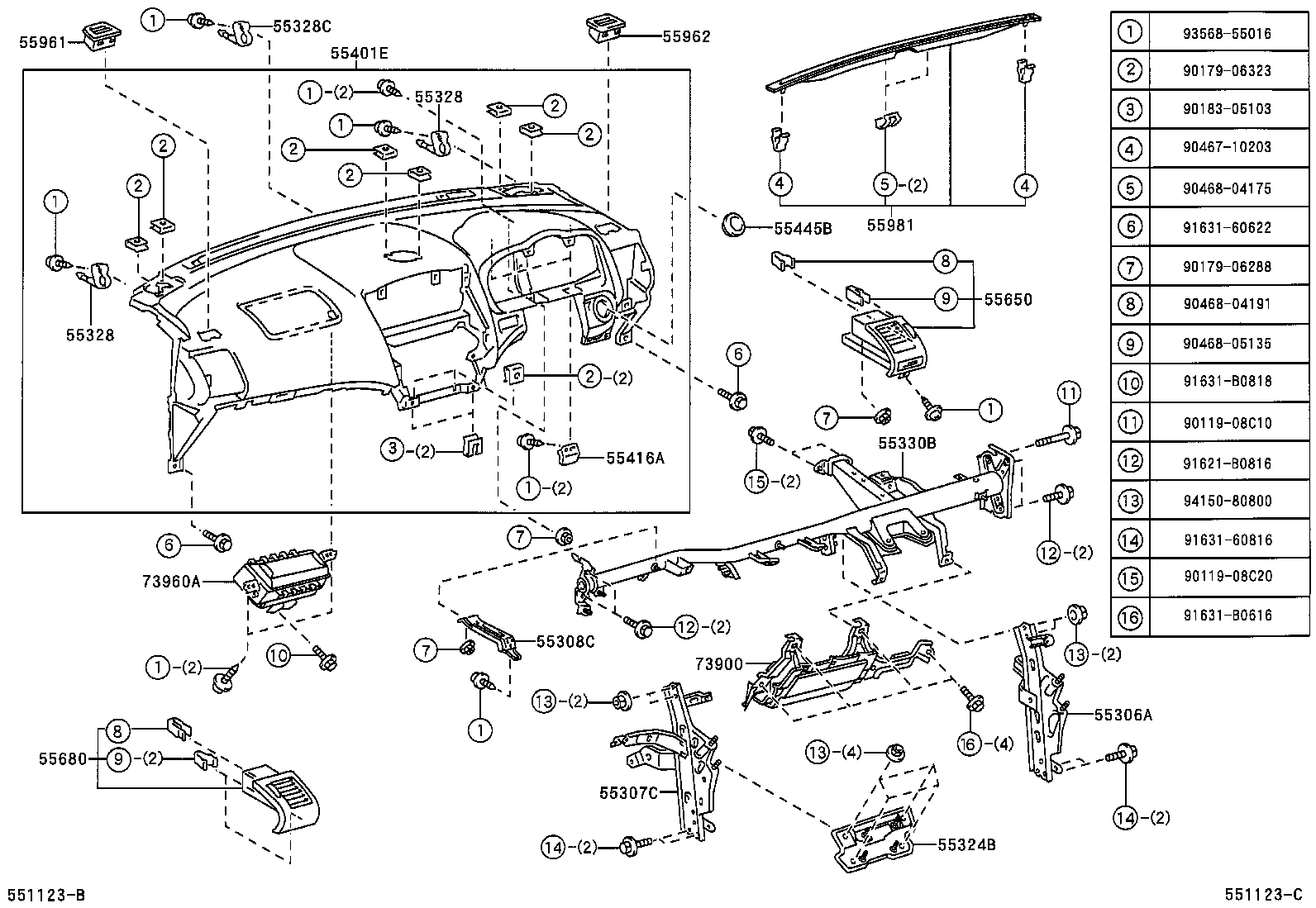

ILLUST NO. 1 OF 2(0302- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-48050 |
MCU3#..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-48050 |
MCU3#..RHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-48050 |
MCU3#..RHD |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-48030 |
MCU3#..RHD |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-48040 |
MCU3# |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-48040 |
MCU3# |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-48040 |
MCU3# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-48060 |
MCU3#..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-48030E0 |
MCU3#..RHD SANDAL WOOD,TRIM0# |
1 | ||
| 55401-48040C0 |
MCU3#..RHD AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55401-48030C0 |
MCU3#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55401-48040C0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55401-48040E0 |
MCU3#..RHD AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55401-48040E0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
MCU3# |
2 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-51020E1 |
MCU3# SANDAL WOOD,TRIM0# |
1 | ||
| 55445-51020C0 |
MCU3# BLACK,TRIM1#,2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-48040E0 |
MCU3#..RHD SANDAL WOOD,TRIM0# |
1 | ||
| 55650-48040C0 |
MCU3#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-48040E0 |
MCU3#..RHD SANDAL WOOD,TRIM0# |
1 | ||
| 55680-48040C0 |
MCU3#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-48020C0 |
MCU3# BLACK,TRIM1#,2# |
1 | ||
| 55961-48020E0 |
MCU3# SANDAL WOOD,TRIM0# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-48020E0 |
MCU3# SANDAL WOOD,TRIM0# |
1 | ||
| 55962-48020C0 |
MCU3# BLACK,TRIM1#,2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-48020E0 |
MCU3# SANDAL WOOD,TRIM0# |
1 | ||
| 55981-48020C0 |
MCU3# BLACK,TRIM1#,2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-48010C0 |
MCU3#..RHD BLACK,TRIM2# |
1 | ||
| 73900-48010B0 |
MCU3#..RHD LT.GRAY,TRIM1# |
1 | ||
| 73900-48010A0 |
MCU3#..RHD IVORY,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-48010 |
MCU3#..RHD |
1 | ||
| Common parts | ||||
| 90119-08C10 | ||||
| 90119-08C20 | ||||
| 90179-06288 | ||||
| 90179-06323 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90468-04175 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| 91621-B0816 | ||||
| 91631-60622 | ||||
| 91631-60816 | ||||
| 91631-B0616 | ||||
| 91631-B0818 | ||||
| 93568-55016 | ||||
| 94150-80800 | ||||

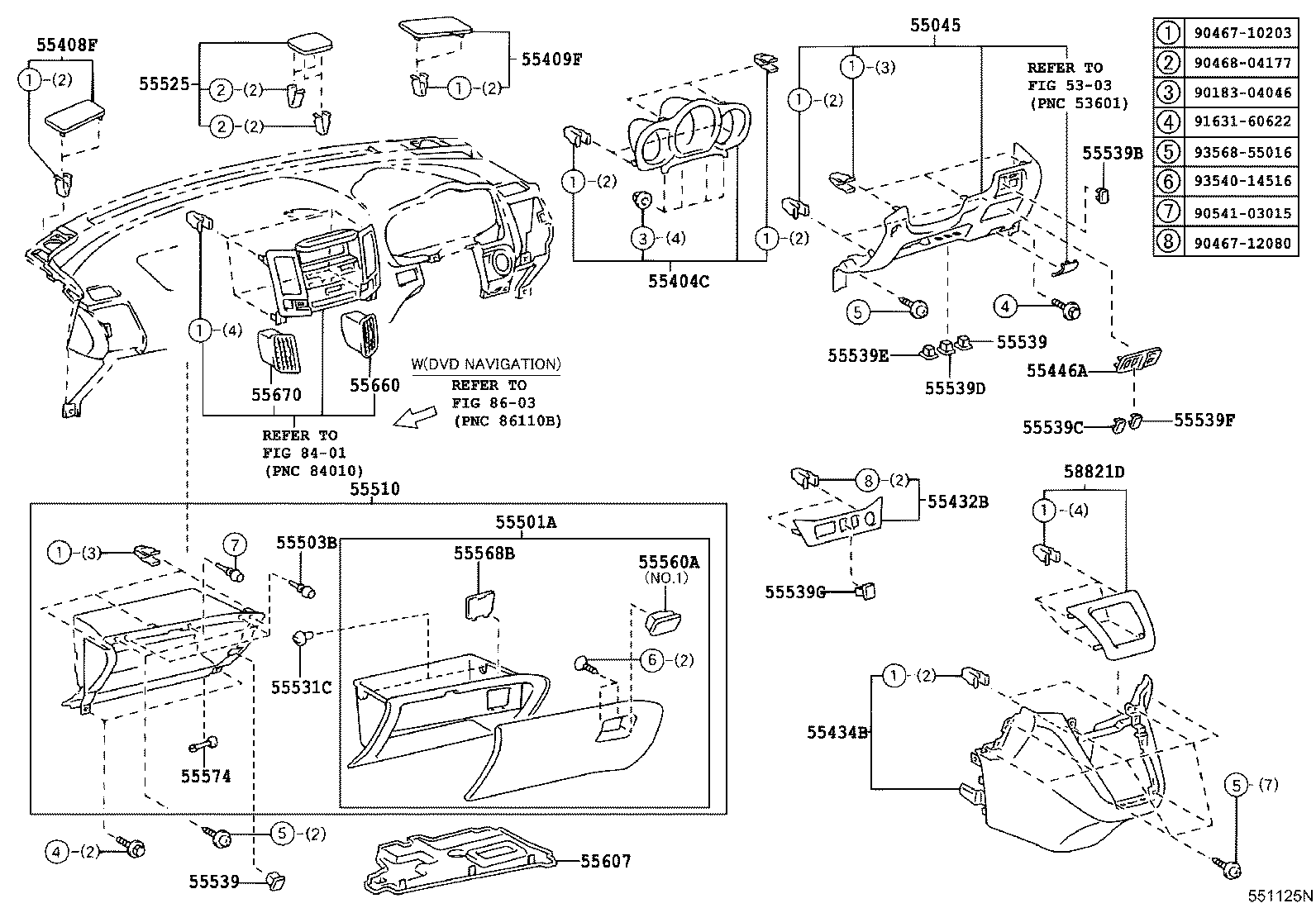

ILLUST NO. 2 OF 2(0302- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-48060C0 |
MCU3#..RHD BLACK,TRIM2# |
1 | ||
| 55045-48060B0 |
MCU3#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55045-48060A0 |
MCU3#..RHD IVORY,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-48030 |
MCU3#..RHD |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-48030E0 |
MCU3#..ARL,EUR AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55408-48030C0 |
MCU3#..ARL,EUR AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55408-48020E0 |
MCU3# SANDAL WOOD,TRIM0# |
1 | ||
| 55408-48020C0 |
MCU3# BLACK,TRIM1#,2# |
1 | ||
| 55408-48030C0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55408-48030E0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-48030C0 |
MCU3#..ARL,EUR AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55409-48020C0 |
MCU3# BLACK,TRIM1#,2# |
1 | ||
| 55409-48030E0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55409-48030E0 |
MCU3#..ARL,EUR AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55409-48020E0 |
MCU3# SANDAL WOOD,TRIM0# |
1 | ||
| 55409-48030C0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-48070 |
MCU35 LUXURY PACKAGE&SUSPENSION-AIR SUSPENSION |
1 | ||
| 55432-48060 |
MCU35 LUXURY PACKAGE&SUSPENSION-AIR SUSPENSION&W/SEAT HEATER |
1 | ||
| 55432-48140E1 |
MCU35 LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH)&SUSPENSION-AIR SUSPENSION,LIGHTBROWN,TRIM0# |
1 | ||
| 55432-48150E1 |
MCU3#..EUR,GCC LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH),LIGHTBROWN,TRIM0# |
1 | ||
| 55432-48090 |
MCU3# |
1 | ||
| 55432-48130E0 |
MCU35 LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH)&SUSPENSION-AIR SUSPENSION&W/SEAT HEATER,MD.BROWN,TRIM1#,2# |
1 | ||
| 55432-48160E1 |
MCU35 LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH)&W/SEAT HEATER,LIGHTBROWN,TRIM0# |
1 | ||
| 55432-48100 |
MCU35 W/SEAT HEATER |
1 | ||
| 55432-48160E0 |
MCU35 LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH)&W/SEAT HEATER,MD.BROWN,TRIM1#,2# |
1 | ||
| 55432-48140E0 |
MCU35 LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH)&SUSPENSION-AIR SUSPENSION,MD.BROWN,TRIM1#,2# |
1 | ||
| 55432-48130E1 |
MCU35 LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH)&SUSPENSION-AIR SUSPENSION&W/SEAT HEATER,LIGHTBROWN,TRIM0# |
1 | ||
| 55432-48150E0 |
MCU3#..EUR,GCC LUXURY PACKAGE&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH),MD.BROWN,TRIM1#,2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-48040B0 |
MCU3# LT.GRAY,TRIM1# |
1 | ||
| 55434-48040C0 |
MCU3# BLACK,TRIM2# |
1 | ||
| 55434-48040A0 |
MCU3# IVORY,TRIM0# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-48010C0 |
MCU3#..RHD BLACK,TRIM2# |
1 | ||
| 55446-48010B0 |
MCU3#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55446-48010A0 |
MCU3#..RHD IVORY,TRIM0# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-48080A0 |
MCU3#..RHD IVORY,TRIM0# |
1 | ||
| 55501-48160A0 |
MCU3#..RHD IVORY,TRIM0# |
1 | ||
| 55501-48080B0 |
MCU3#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55501-48160C0 |
MCU3#..RHD BLACK,TRIM2# |
1 | ||
| 55501-48160B0 |
MCU3#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55501-48080C0 |
MCU3#..RHD BLACK,TRIM2# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05020 |
MCU3# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55303-48050C0 |
MCU3#..RHD BLACK,TRIM2#,REFER TO PNC 81260 |
1 | ||
| 55303-48050B0 |
MCU3#..RHD LT.GRAY,TRIM1#,REFER TO PNC 81260 |
1 | ||
| 55303-48050A0 |
MCU3#..RHD IVORY,TRIM0#,REFER TO PNC 81260 |
1 | ||
| 55303-48110B0 |
MCU3#..RHD LT.GRAY,TRIM1#,REFER TO PNC 81260 |
1 | ||
| 55303-48110A0 |
MCU3#..RHD IVORY,TRIM0#,REFER TO PNC 81260 |
1 | ||
| 55303-48110C0 |
MCU3#..RHD BLACK,TRIM2#,REFER TO PNC 81260 |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55510-48010E0 |
MCU3#..ARL,EUR AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55510-48010E0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,SANDAL WOOD,TRIM0# |
1 | ||
| 55510-48010C0 |
MCU35..RHD AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55510-48010C0 |
MCU3#..ARL,EUR AUDIO-MARK LEVINSON 11SP,BLACK,TRIM1#,2# |
1 | ||
| 55531C - PIN, GLOVE DOOR STOPPER | ||||
| 55531-20170 |
MCU3# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
MCU3# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
MCU3# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-48030C0 |
MCU3# BLACK,TRIM2# |
1 | ||
| 55539-48030A0 |
MCU3# IVORY,TRIM0# |
1 | ||
| 55539-48030B0 |
MCU3# LT.GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030A0 |
MCU3# IVORY,TRIM0# |
1 | ||
| 55539-48030B0 |
MCU3# LT.GRAY,TRIM1# |
1 | ||
| 55539-48030C0 |
MCU3# BLACK,TRIM2# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
MCU3# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
MCU3# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
MCU3# BLACK,TRIM2# |
1 | ||
| 55539-48030A0 |
MCU3# IVORY,TRIM0# |
1 | ||
| 55539-48030B0 |
MCU3# LT.GRAY,TRIM1# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
MCU3# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-60010C0 |
MCU3# BLACK,TRIM2#,NO.1 |
1 | ||
| 55506-60010A0 |
MCU3# IVORY,TRIM0#,NO.1 |
1 | ||
| 55506-60010B1 |
MCU3# LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-48010 |
MCU3# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
MCU3# |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48050 |
MCU3#..RHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-48050 |
MCU3#..ARL,EUR |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-48050 |
MCU3#..ARL,EUR |
1 | ||
| 58821D - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-48030E1 |
MCU3# LIGHTBROWN,TRIM0# |
1 | ||
| 58821-48030E0 |
MCU3# MD.BROWN,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90183-04046 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-04177 | ||||
| 90541-03015 | ||||
| 91631-60622 | ||||
| 93540-14516 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 5303 | ||||
| 8401 | ||||
| 8603 | ||||
