MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302-0601)

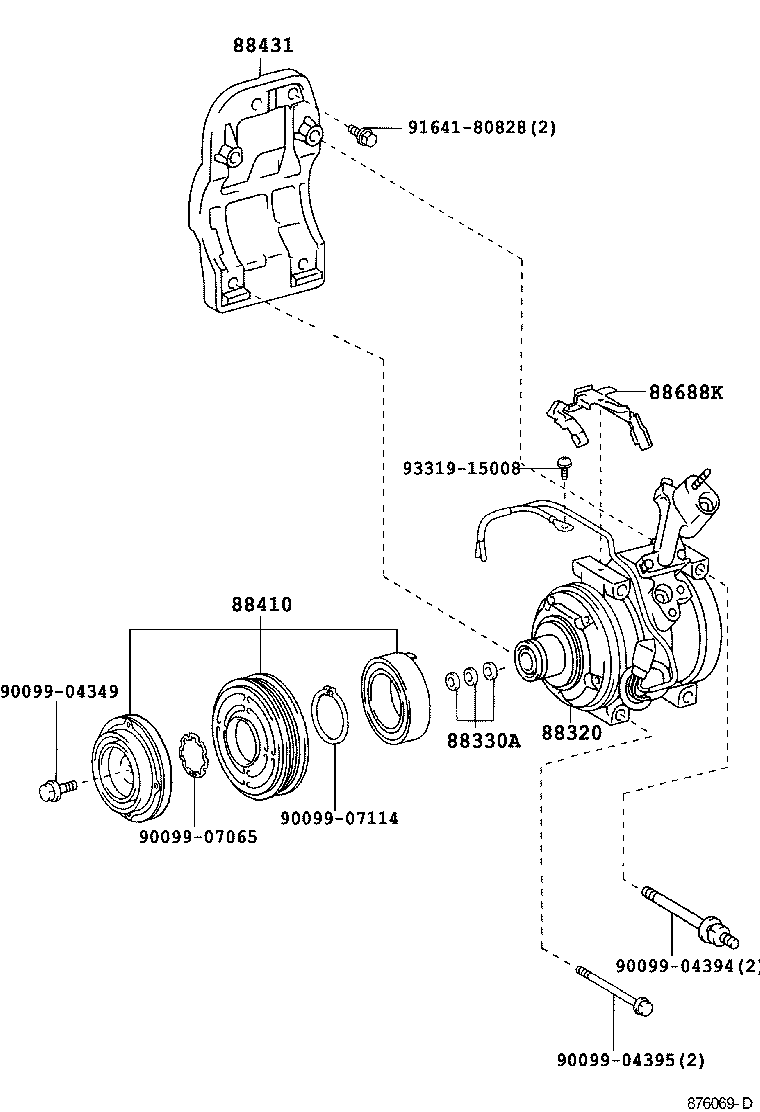

Click highlighted areas on diagram

diagram 88320 88330A 88410 88431 88688K 9009904349 9009904394 9009904395 9009907065 9009907114 9164180828 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-48060

MCU3#..ARL,EUR

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

MCU3#

 1
88410 - CLUTCH ASSY, MAGNET
88410-48050

MCU3#..ARL,EUR

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-07021

MCU3#

(L)

 1
88431-33041

MCU3#

(J)

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-48110

MCU3#..ARL,EUR

 1
88688-03030

MCU3#..ARL,EUR

 1
Common parts
90099-04349
90099-04394
90099-04395
90099-07065
90099-07114
91641-80828
93319-15008
