MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0302- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

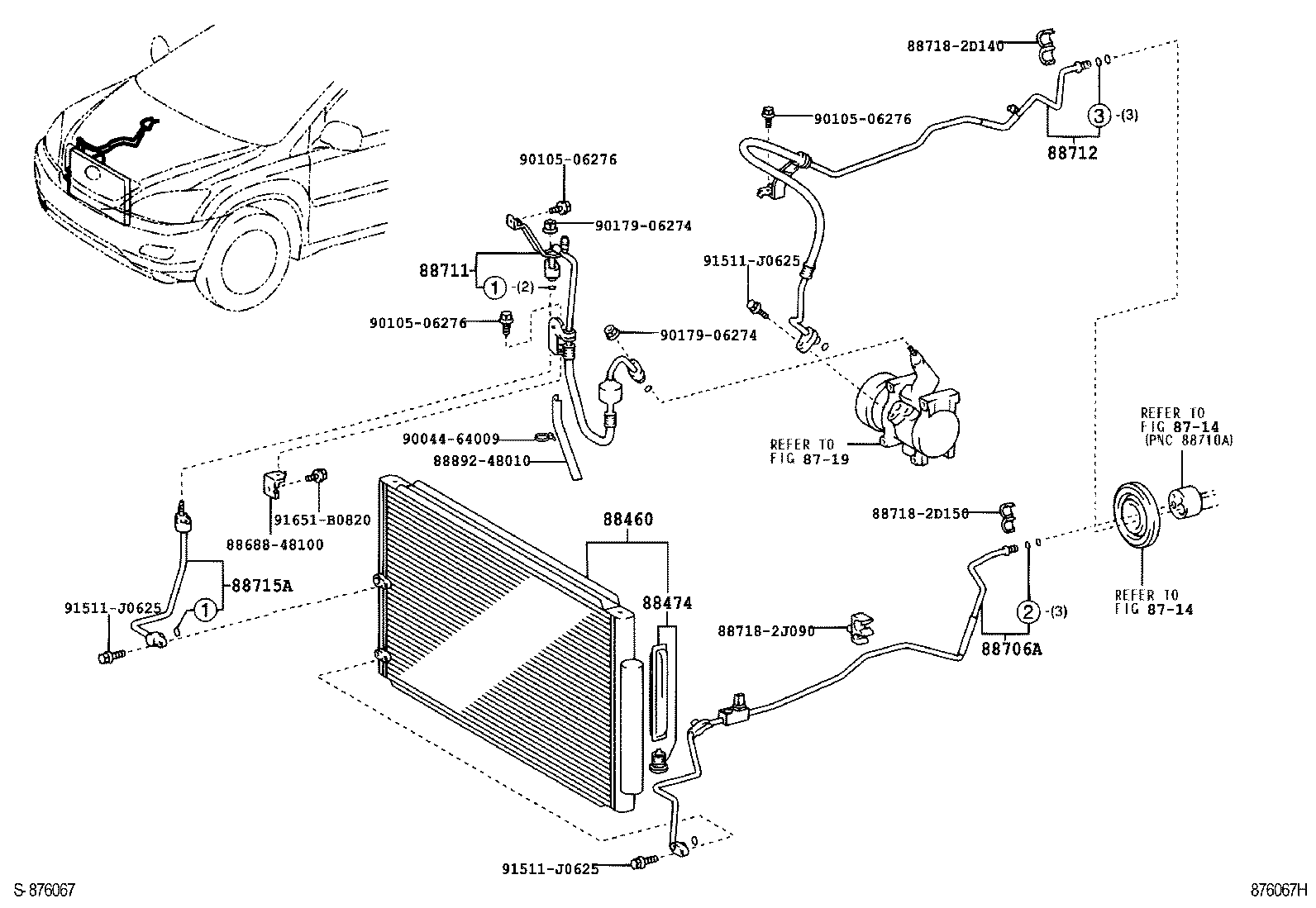

ILLUST NO. 1 OF 2(0302-0601)LHD

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88474 8868848100 88706A 88711 88712 88715A 887182D140 887182D150 887182J090 8889248010 9004464009 9010506276 9010506276 9010506276 9017906274 9017906274 91511J0625 91511J0625 91511J0625 91651B0820
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-48040

MCU35

 1
88474 - DRYER, COOLER
88474-17010

MCU3#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88710-48151

MCU3#..LHD

 1
88710-48150

MCU3#..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-48081

MCU3#

 1
88703-48082

MCU3#..ARL,EUR

 1
88703-48080

MCU3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-48040

MCU3#..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88705-48040

MCU3#

 1
Common parts
88688-48100
88718-2D140
88718-2D150
88718-2J090
88892-48010
90044-64009
90105-06276
90179-06274
91511-J0625
91651-B0820
Linked diagrams
8714
8719
