MCU35L-AWAGKW (2003)
Toyota Lexus Rx300/330/350

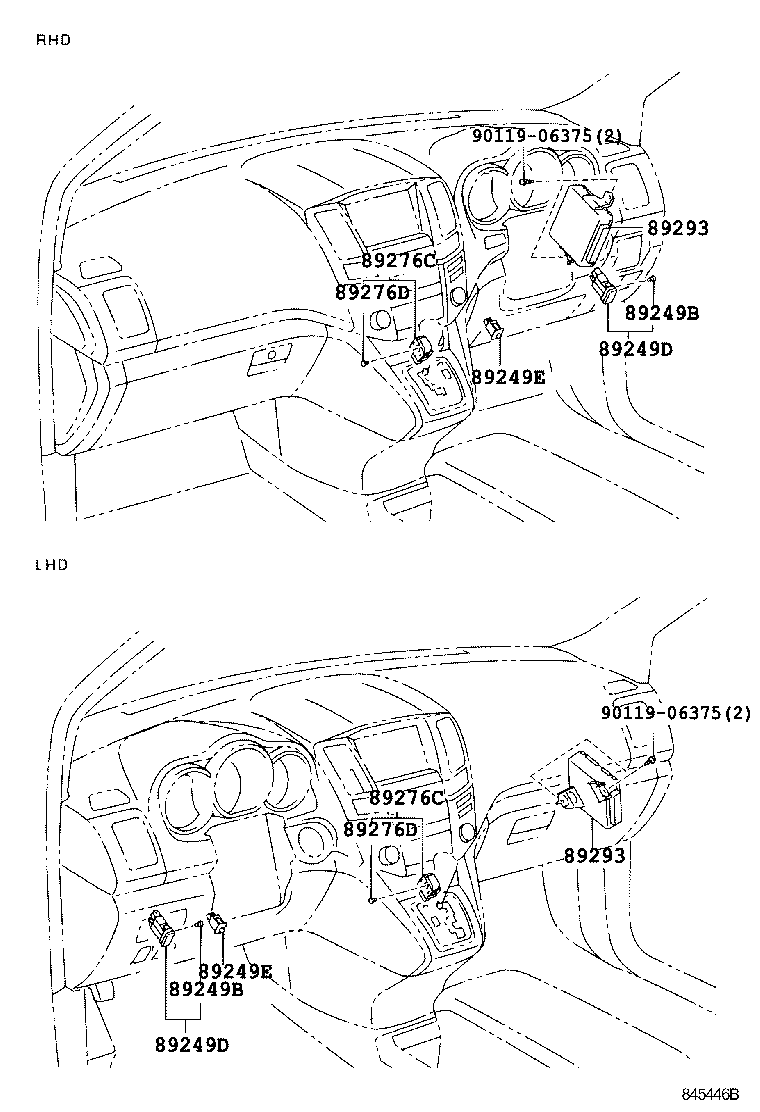

ILLUST NO. 2 OF 2(0302-0601)MCU35 ; (0601- )EUR
SWITCH & ECU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89249B - BULB, ABSORBER CONTROL SWITCH | ||||
| 90010-01061 |
MCU35 14V0.84W,W/GREEN CAP,SUSPENSION-AIR SUSPENSION |
1 | ||
| 89249B - BULB, ABSORBER CONTROL SWITCH | ||||
| 90010-01061 |
MCU35 14V0.84W,W/GREEN CAP,SUSPENSION-AIR SUSPENSION |
1 | ||
| 89249D - SWITCH, ABSORBER CONTROL NO.2 | ||||
| 89249-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89249D - SWITCH, ABSORBER CONTROL NO.2 | ||||
| 89249-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89249E - SWITCH, HEIGHT CONTROL OFF | ||||
| 89249-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89249E - SWITCH, HEIGHT CONTROL OFF | ||||
| 89249-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89276C - SWITCH, HEIGHT CONTROL | ||||
| 89276-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89276C - SWITCH, HEIGHT CONTROL | ||||
| 89276-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89276D - BULB, (FOR HEIGHT CONTROL SWITCH) | ||||
| 90010-01059 |
MCU35 14V0.84W,W/GREEN CAP,SUSPENSION-AIR SUSPENSION |
1 | ||
| 89276D - BULB, (FOR HEIGHT CONTROL SWITCH) | ||||
| 90010-01059 |
MCU35 14V0.84W,W/GREEN CAP,SUSPENSION-AIR SUSPENSION |
1 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-48021 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 89293-48022 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 89293-48023 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-48021 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 89293-48022 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 89293-48023 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||

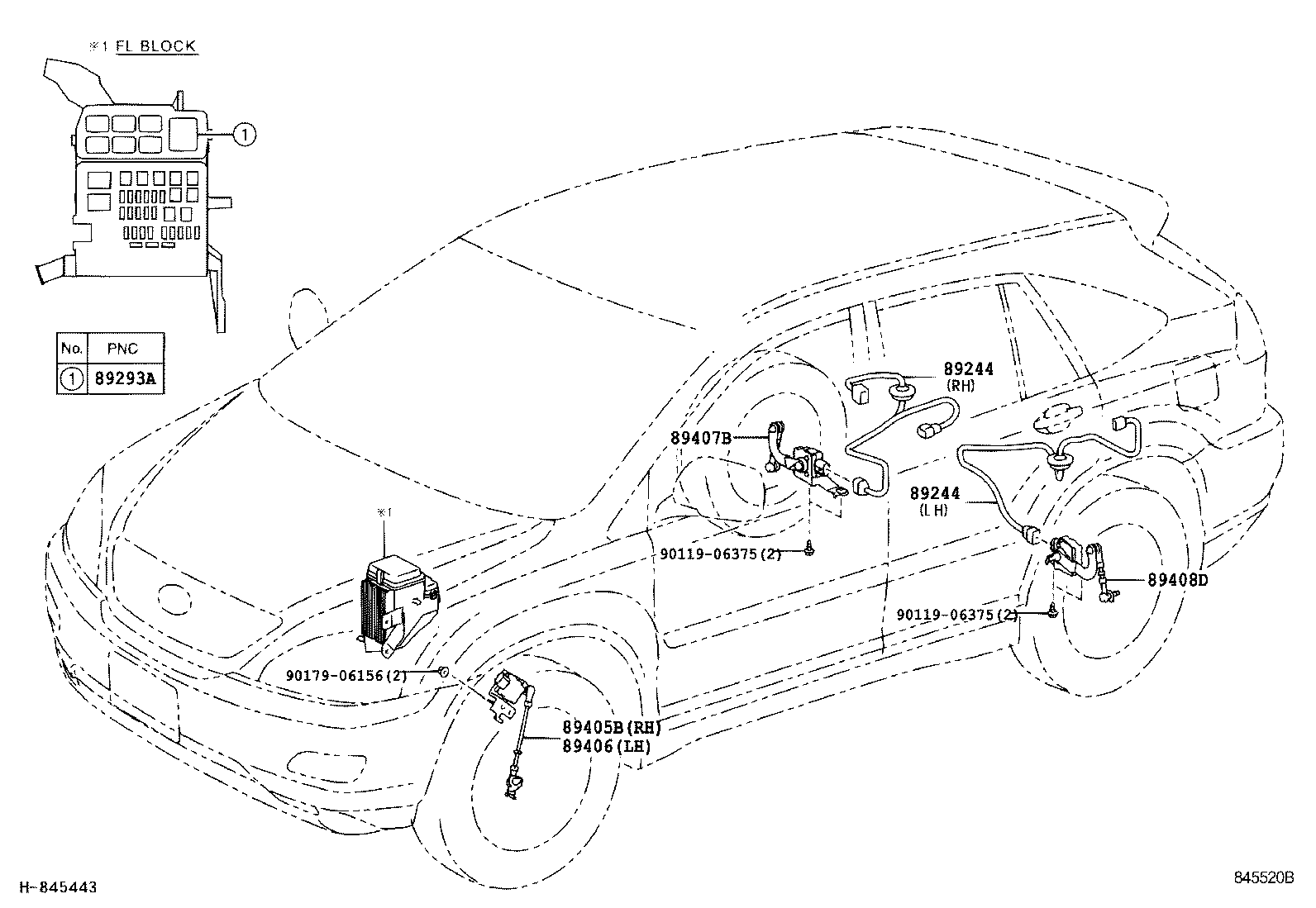

ILLUST NO. 1 OF 2(0302-0601)MCU35 ; (0601- )EUR
RELAY & SENSOR & CONTROL WIRING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-48040 |
MCU35 SUSPENSION-AIR SUSPENSION,LH |
1 | ||
| 89244-48030 |
MCU35 SUSPENSION-AIR SUSPENSION,RH |
1 | ||
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-48040 |
MCU35 SUSPENSION-AIR SUSPENSION,LH |
1 | ||
| 89244-48030 |
MCU35 SUSPENSION-AIR SUSPENSION,RH |
1 | ||
| 89293A - RELAY, SUSPENSION CONTROL | ||||
| 90987-02025 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89405B - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH | ||||
| 89405-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89406 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH | ||||
| 89406-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89407B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-48030 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 89408D - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH | ||||
| 89408-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90179-06156 | ||||
