MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )ARL,EUR

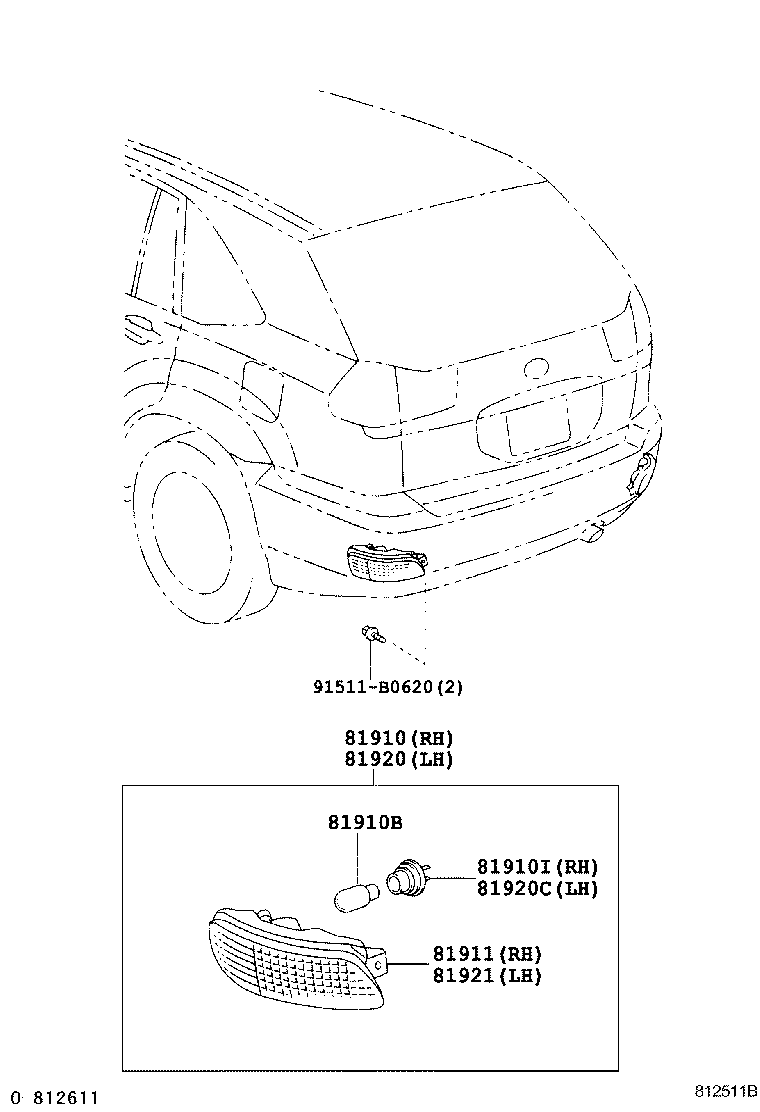

Click highlighted areas on diagram

diagram 81910 81910B 81910I 81911 81920 81920C 81921 91511B0620
Part # Description Qty Price
81910 - REFLECTOR ASSY, REFLEX, RH
81910-48030

MCU3#..ARL,EUR

 1
81910B - BULB, REFLEX REFLECTOR
90981-13043

MCU3#..ARL,EUR

12V 21W

 2
81910I - SOCKET PLUG, REFLEX REFLECTOR,RH
90075-99080

MCU3#..ARL,EUR

 2
81911 - LENS, REFLEX REFLECTOR, REAR RH
81911-48030

MCU3#..ARL,EUR

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81920-48030

MCU3#..ARL,EUR

 1
81920C - SOCKET PLUG, REFLEX REFLECTOR LH
90075-99080

MCU3#..ARL,EUR

 2
81921 - LENS, REFLEX REFLECTOR, REAR LH
81921-48030

MCU3#..ARL,EUR

 1
Common parts
91511-B0620
