MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )

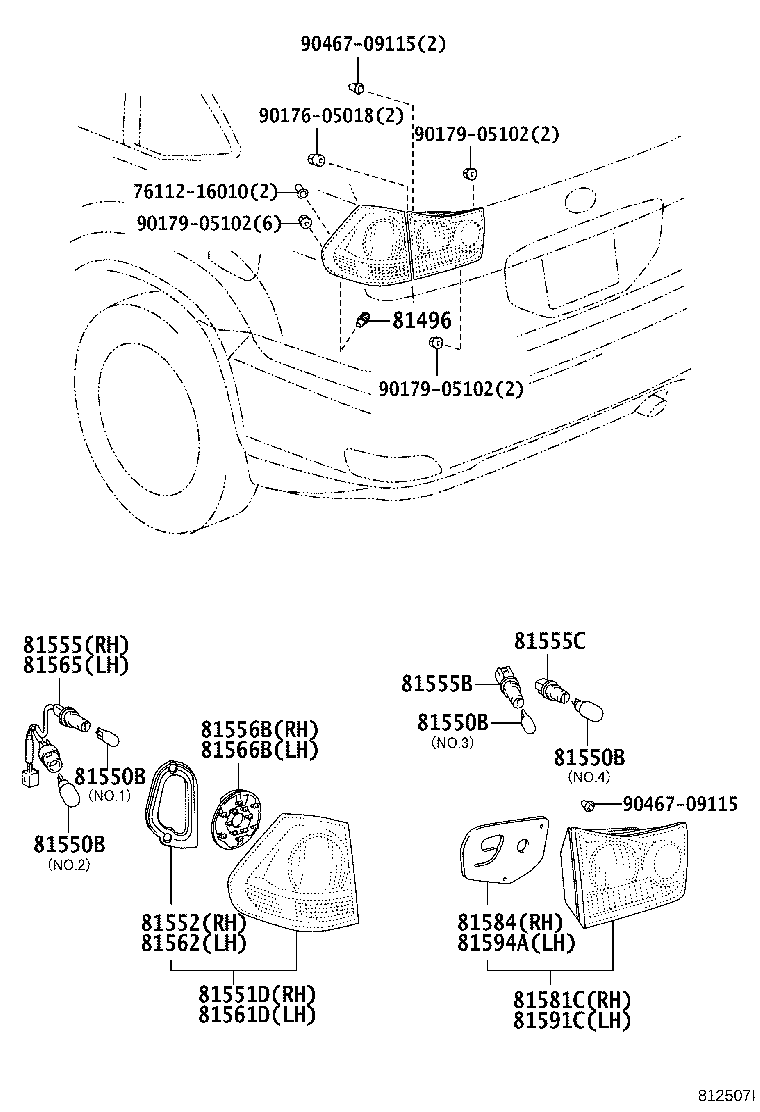

Click highlighted areas on diagram

diagram 7611216010 81496 81550B 81550B 81550B 81550B 81551D 81552 81555 81555B 81555C 81556B 81561D 81562 81565 81566B 81581C 81584 81591C 81594A 9017605018 9017905102 9017905102 9017905102 9046709115 9046709115
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010

MCU3#

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

MCU3#

12V 16W,NO.4

 2
90981-15011

MCU3#

12V 21W,AMBER,NO.2

 2
99132-12050

MCU3#

12V 5W,NO.1,3

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

MCU3#

12V 16W,NO.4

 2
90981-15011

MCU3#

12V 21W,AMBER,NO.2

 2
99132-12050

MCU3#

12V 5W,NO.1,3

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

MCU3#

12V 16W,NO.4

 2
90981-15011

MCU3#

12V 21W,AMBER,NO.2

 2
99132-12050

MCU3#

12V 5W,NO.1,3

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

MCU3#

12V 16W,NO.4

 2
90981-15011

MCU3#

12V 21W,AMBER,NO.2

 2
99132-12050

MCU3#

12V 5W,NO.1,3

 4
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-48060

MCU3#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-48060

MCU3#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-48060

MCU3#

 1
81555B - SOCKET PLUG, NO.1
90075-60046

MCU3#

 2
90075-60056

MCU3#

 2
81555C - SOCKET PLUG, NO.2
90075-60063

MCU3#

 2
81556B - LED, REAR COMBINATION LAMP, RH
81553-48060

MCU3#

FOR STOP

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-48060

MCU3#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-48060

MCU3#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-48060

MCU3#

 1
81566B - LED, REAR COMBINATION LAMP, LH
81563-48060

MCU3#

FOR STOP

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-48050

MCU3#

 1
81584 - PACKING, REAR LAMP RH
81584-48050

MCU3#

 1
81591C - LENS, REAR LAMP, LH
81591-48050

MCU3#

 1
81594A - GASKET, REAR LAMP LH
81594-48050

MCU3#

 1
Common parts
76112-16010
90176-05018
90179-05102
90467-09115
