MCU35L-AWAGKW (2003)
Toyota Lexus Rx300/330/350

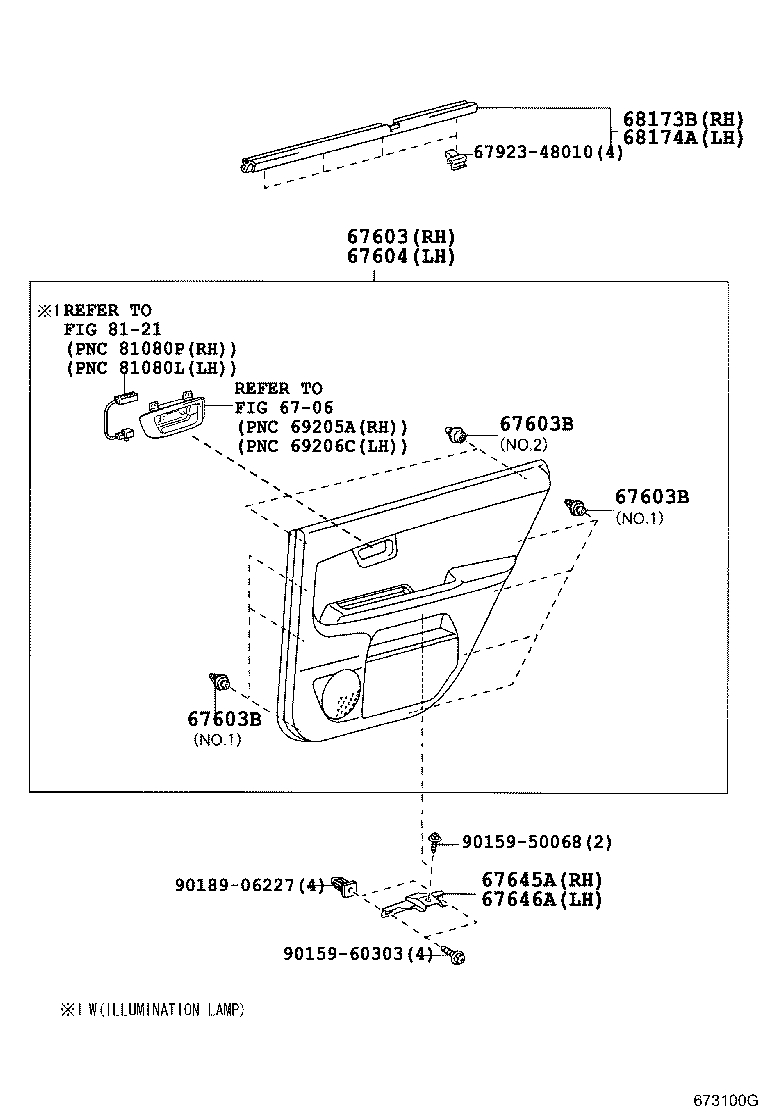

ILLUST NO. 2 OF 2(0302- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-48250A1 |
MCU3#..EUR,GCC LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 67630-48250C1 |
MCU3#..EUR,GCC LUXURY PACKAGE,BLACK,TRIM2# |
1 | ||
| 67630-48250B1 |
MCU3#..EUR,GCC LUXURY PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 67630-48240C1 |
MCU3#..EUR,GCC BLACK,TRIM2# |
1 | ||
| 67630-48240B1 |
MCU3#..EUR,GCC LT.GRAY,TRIM1# |
1 | ||
| 67630-48240A1 |
MCU3#..EUR,GCC IVORY,TRIM0# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10162 |
MCU3# NO.2 |
4 | ||
| 90467-09206 |
MCU3# NO.1 |
14 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10162 |
MCU3# NO.2 |
4 | ||
| 90467-09206 |
MCU3# NO.1 |
14 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10162 |
MCU3# NO.2 |
4 | ||
| 90467-09206 |
MCU3# NO.1 |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-48240A1 |
MCU3#..EUR,GCC IVORY,TRIM0# |
1 | ||
| 67640-48250A1 |
MCU3#..EUR,GCC LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 67640-48240C1 |
MCU3#..EUR,GCC BLACK,TRIM2# |
1 | ||
| 67640-48250B1 |
MCU3#..EUR,GCC LUXURY PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 67640-48240B1 |
MCU3#..EUR,GCC LT.GRAY,TRIM1# |
1 | ||
| 67640-48250C1 |
MCU3#..EUR,GCC LUXURY PACKAGE,BLACK,TRIM2# |
1 | ||
| 67645A - BRACKET, REAR DOOR ARMREST SET, RH | ||||
| 67646-48010 |
MCU3# |
1 | ||
| 67646A - BRACKET, REAR DOOR ARMREST SET, LH | ||||
| 67646-48010 |
MCU3# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-48031 |
MCU3# |
1 | ||
| 68173-48030 |
MCU3# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-48031 |
MCU3# |
1 | ||
| 68174-48030 |
MCU3# |
1 | ||
| Common parts | ||||
| 67923-48010 | ||||
| 90159-50068 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 8121 | ||||

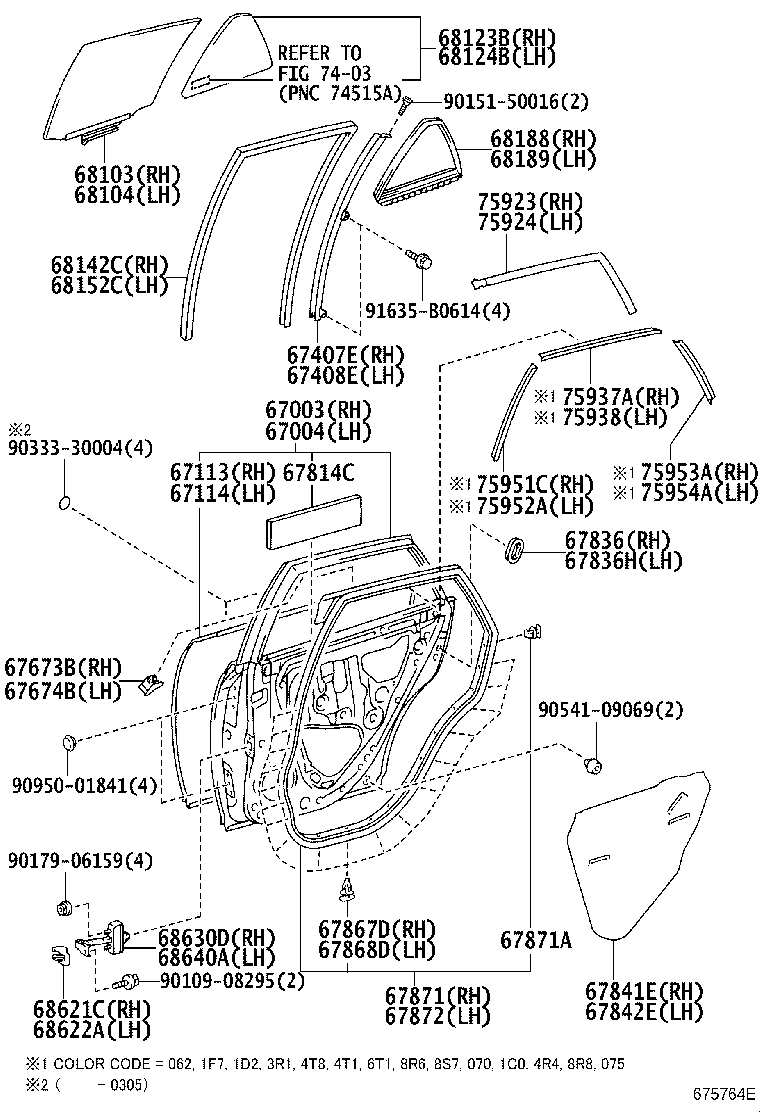

ILLUST NO. 1 OF 2(0302- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-48080 |
MCU3# |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-48080 |
MCU3# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-48040 |
MCU3# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-48040 |
MCU3# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-48030 |
MCU3# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-48030 |
MCU3# |
1 | ||
| 67673B - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
MCU3# |
1 | ||
| 67674B - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
MCU3# |
1 | ||
| 67814C - PACKING, DOOR PROTECTOR | ||||
| 67813-44010 |
MCU3# |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
MCU3# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
MCU3# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-48030 |
MCU3# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-48030 |
MCU3# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MCU3# |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MCU3# |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-48030 |
MCU3# |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 90467-04034 |
MCU3# |
2 | ||
| 67867-48010 |
MCU3# |
2 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-48030 |
MCU3# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-48140 |
MCU35..LHD *UVCTT,T=4.0,GREEN,MOSCOW SPEC |
1 | ||
| 68103-48130 |
MCU3#..ARL,EUR *SERT,T=4.0,DK.GRAY |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-48110 |
MCU3#..ARL,EUR *SERT,T=4.0,DK.GRAY |
1 | ||
| 68104-48120 |
MCU35..LHD *UVCTT,T=4.0,GREEN,MOSCOW SPEC |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-48110 |
MCU3#..ARL,EUR *SERT,T=4.0,DK.GRAY |
1 | ||
| 68123-48120 |
MCU35..LHD *UVCTT,T=4.0,GREEN,MOSCOW SPEC |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-48120 |
MCU35..LHD *UVCTT,T=4.0,GREEN,MOSCOW SPEC |
1 | ||
| 68124-48110 |
MCU3#..ARL,EUR *SERT,T=4.0,DK.GRAY |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-48030 |
MCU3# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-48030 |
MCU3# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-48030 |
MCU3# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-48030 |
MCU3# |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-53010 |
MCU3# |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68622-53010 |
MCU3# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-48030 |
MCU3# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-48020 |
MCU3# |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-48020 |
MCU3# |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-48020 |
MCU3# |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75987-48020 |
MCU3# |
1 | ||
| 75987-48020 |
MCU3# |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75988-48020 |
MCU3# |
1 | ||
| 75988-48020 |
MCU3# |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75977-48020 |
MCU3# |
1 | ||
| 75977-48020 |
MCU3# |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75978-48020 |
MCU3# |
1 | ||
| 75978-48020 |
MCU3# |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75979-48010 |
MCU3# |
1 | ||
| 75979-48010 |
MCU3# |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75989-48010 |
MCU3# |
1 | ||
| 75989-48010 |
MCU3# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90179-06159 | ||||
| 90333-30004 | ||||
| 90541-09069 | ||||
| 90950-01841 | ||||
| 91635-B0614 | ||||
| Linked diagrams | ||||
| 7403 | ||||
