MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )

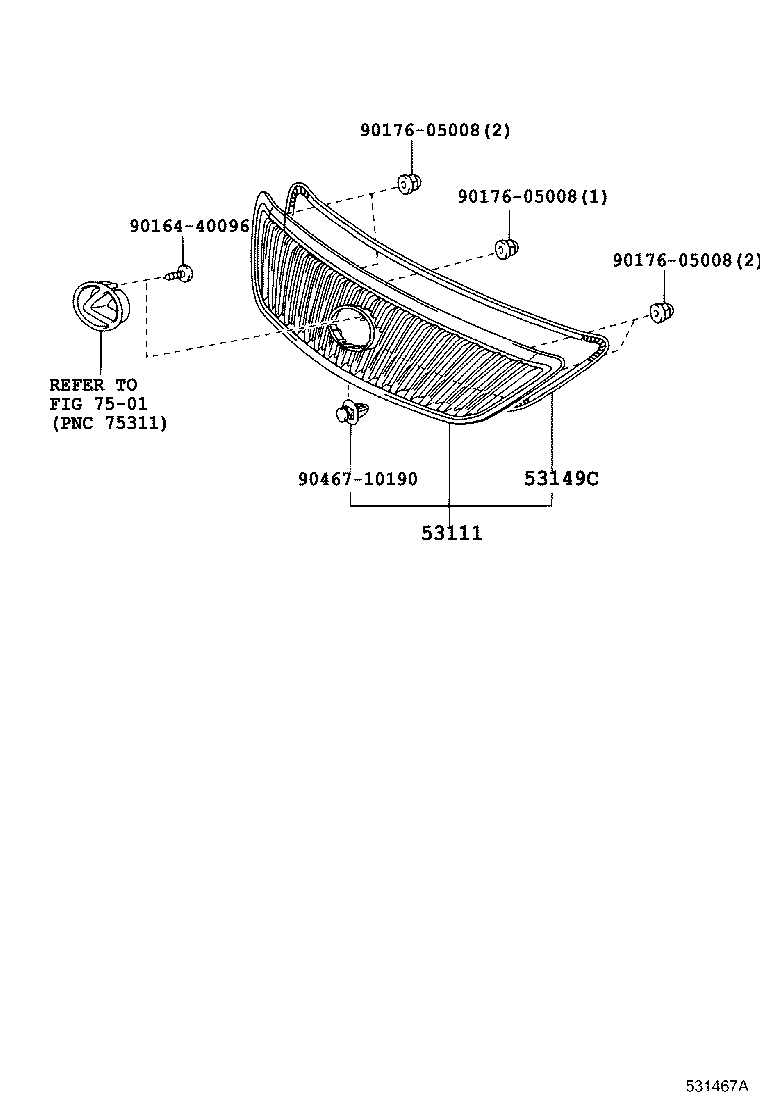

Click highlighted areas on diagram

diagram 53111 53149C 7501 9016440096 9017605008 9017605008 9017605008 9046710190
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-48071

MCU3#

 1
53101-48070

MCU3#

 1
53149C - PROTECTOR, RADIATOR GRILLE, NO.2
53149-48010

MCU3#

 1
Common parts
90164-40096
90176-05008
90467-10190
Linked diagrams
7501
