MCU35L-AWAGKW (2003)
Toyota Lexus Rx300/330/350

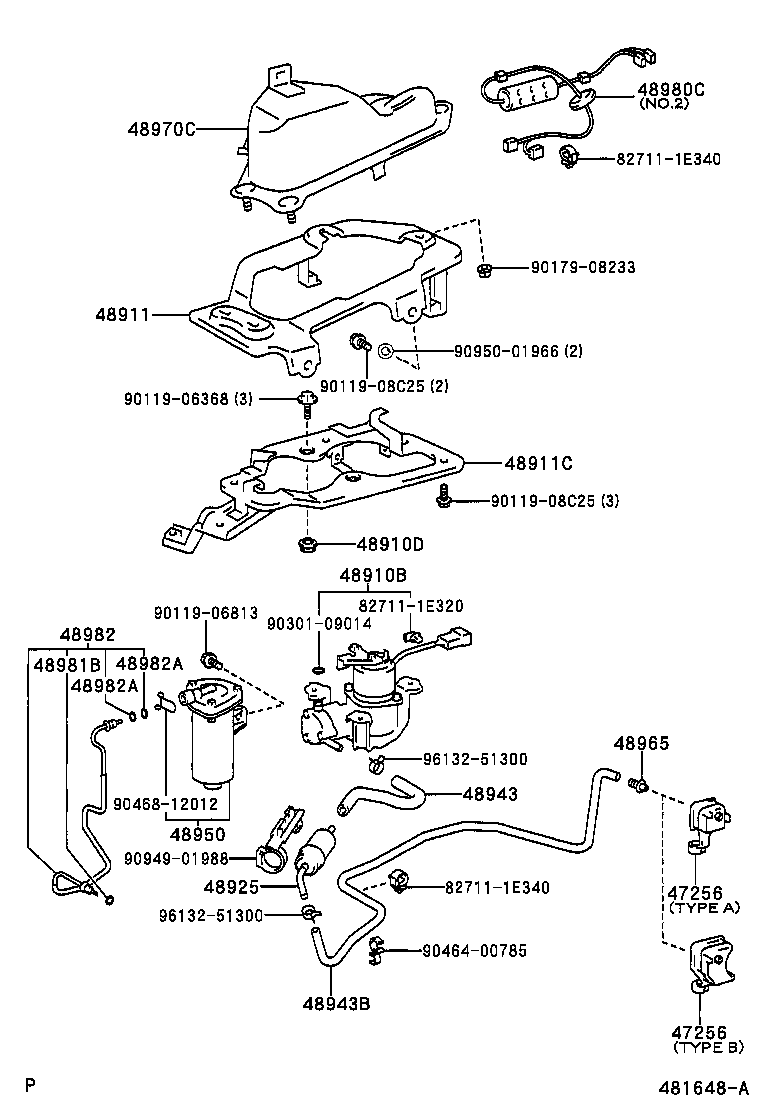

ILLUST NO. 4 OF 4(0302-0601)MCU35 ; (0601- )EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47256 - GROMMET, CAP | ||||
| 47256-48020 |
MCU35 SUSPENSION-AIR SUSPENSION,TYPE B |
1 | ||
| 47256 - GROMMET, CAP | ||||
| 47256-48020 |
MCU35 SUSPENSION-AIR SUSPENSION,TYPE B |
1 | ||
| 48910B - COMPRESSOR ASSY, HEIGHT CONTROL | ||||
| 48910-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90389-06033 |
MCU35 SUSPENSION-AIR SUSPENSION |
3 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48911C - BRACKET, REAR HEIGHT CONTROL COMPRESSOR | ||||
| 48911-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48925 - FILTER, HEIGHT CONTROL | ||||
| 48925-50030 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48943B - HOSE, HEIGHT CONTROL, NO.2 | ||||
| 48943-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48950 - DRYER ASSY, HEIGHT CONTROL | ||||
| 48950-50030 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48970C - CAP(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 48970-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48980C - HARNESS ASSY, HEIGHT CONTROL VALVE | ||||
| 48980-48010 |
MCU35 SUSPENSION-AIR SUSPENSION,NO.1 |
1 | ||
| 48980-48021 |
MCU35 SUSPENSION-AIR SUSPENSION,NO.2 |
1 | ||
| 48980-48020 |
MCU35 SUSPENSION-AIR SUSPENSION,NO.2 |
1 | ||
| 48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1) | ||||
| 90301-04006 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82711-1E340 | ||||
| 90119-06368 | ||||
| 90119-06813 | ||||
| 90119-08C25 | ||||
| 90179-08233 | ||||
| 90301-09014 | ||||
| 90464-00785 | ||||
| 90468-12012 | ||||
| 90949-01988 | ||||
| 90950-01966 | ||||
| 96132-51300 | ||||

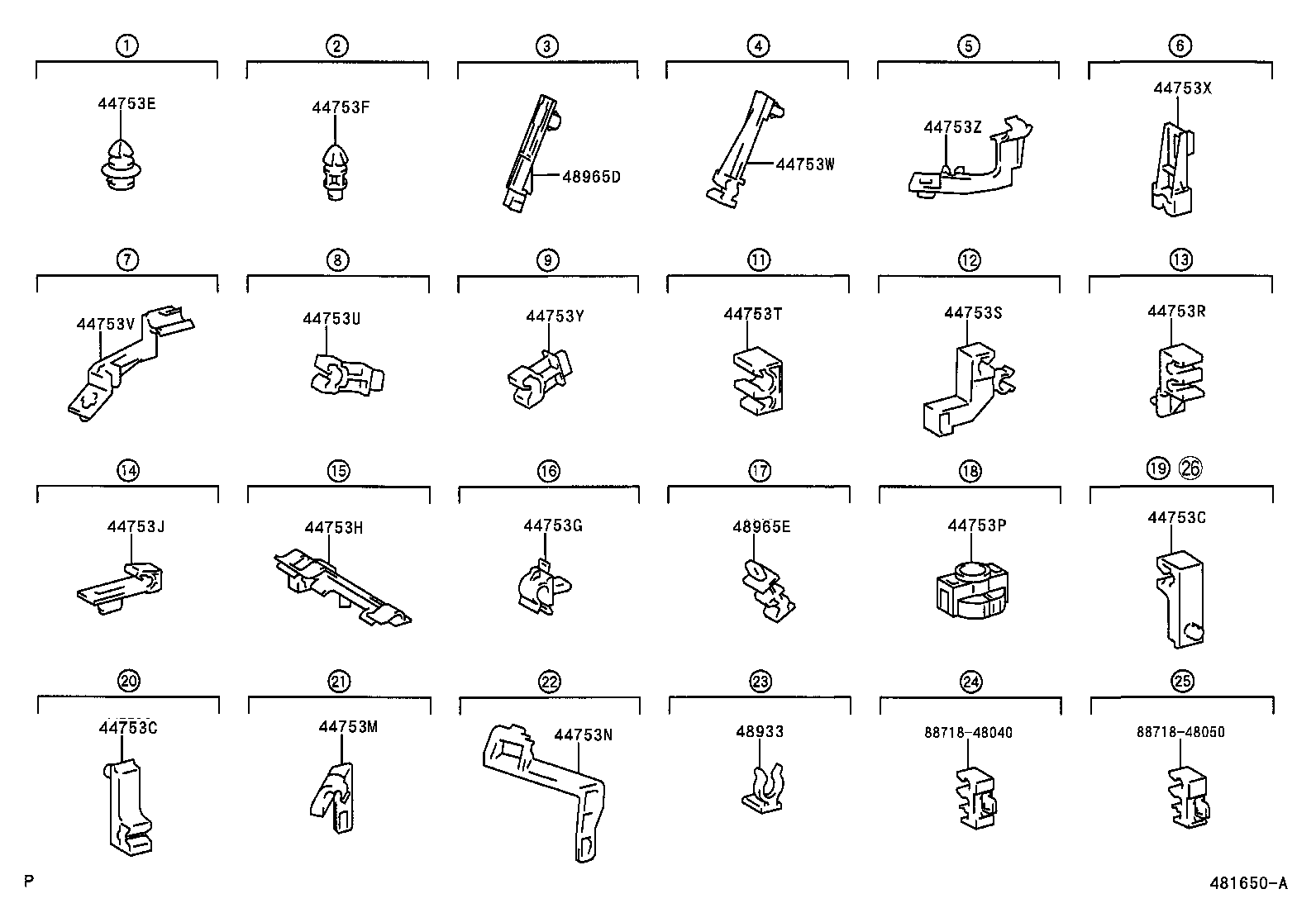

ILLUST NO. 3 OF 4(0302-0601)MCU35..LHD ; (0601- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753C - CLAMP, HEIGHT CONTROL TUBE, NO.2 | ||||
| 44753-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 44753C - CLAMP, HEIGHT CONTROL TUBE, NO.2 | ||||
| 44753-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 44753E - CLAMP, HEIGHT CONTROL TUBE, NO.3 | ||||
| 44753-48030 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753F - CLAMP, HEIGHT CONTROL TUBE, NO.4 | ||||
| 44753-48040 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753G - CLAMP, HEIGHT CONTROL TUBE NO.5 | ||||
| 44753-30190 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753H - CLAMP, HEIGHT CONTROL TUBE NO.6 | ||||
| 44753-48050 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753J - CLAMP, HEIGHT CONTROL TUBE NO.7 | ||||
| 44753-48060 |
MCU35 SUSPENSION-AIR SUSPENSION |
3 | ||
| 44753M - CLAMP, HEIGHT CONTROL TUBE NO.10 | ||||
| 44753-48070 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753N - CLAMP, HEIGHT CONTROL TUBE NO.11 | ||||
| 44753-48080 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753P - CLAMP, HEIGHT CONTROL TUBE NO.12 | ||||
| 44753-48090 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 44753R - CLAMP, HEIGHT CONTROL TUBE NO.14 | ||||
| 44753-48110 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753S - CLAMP, HEIGHT CONTROL TUBE NO.15 | ||||
| 44753-48120 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753T - CLAMP, HEIGHT CONTROL TUBE NO.16 | ||||
| 44753-48130 |
MCU35 SUSPENSION-AIR SUSPENSION |
3 | ||
| 44753U - CLAMP, HEIGHT CONTROL TUBE NO.17 | ||||
| 44753-48140 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753V - CLAMP, HEIGHT CONTROL TUBE NO.18 | ||||
| 44753-48150 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753W - CLAMP, HEIGHT CONTROL TUBE NO.19 | ||||
| 44753-48160 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753X - CLAMP, HEIGHT CONTROL TUBE NO.20 | ||||
| 44753-48170 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753Y - CLAMP, HEIGHT CONTROL TUBE NO.21 | ||||
| 44753-48180 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753Z - CLAMP, HEIGHT CONTROL TUBE NO.22 | ||||
| 44753-48190 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
6 | ||
| 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 | ||||
| 44753-48220 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 48965E - CLAMP, HAIGHT CONTROL TUBE, NO.3 | ||||
| 44753-48230 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| Common parts | ||||
| 88718-48040 | ||||
| 88718-48050 | ||||
ILLUST NO. 1 OF 4(0302-0601)MCU35..LHD ; (0601- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753K - CLAMP, HEIGHT CONTROL TUBE NO.8 | ||||
| 44753-50060 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 44753Q - CLAMP, HEIGHT CONTROL TUBE NO.13 | ||||
| 44753-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 44753Q - CLAMP, HEIGHT CONTROL TUBE NO.13 | ||||
| 44753-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48095C - BUSH(FOR HEIGHT CONTROL VALVE NO.1) | ||||
| 90385-09010 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
3 | ||
| 48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
3 | ||
| 48976 - WAY, HEIGHT CONTROL | ||||
| 48976-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48983B - WAY, NO.3(FOR FRONT HEIGHT CONTROL TUBE) | ||||
| 48976-48040 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48983C - TUBE, HEIGHT CONTROL, FRONT NO.3 | ||||
| 48983-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-48020 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 48985-48021 |
MCU35..LHD SUSPENSION-AIR SUSPENSION |
1 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
MCU35 SUSPENSION-AIR SUSPENSION |
8 | ||
| 48998B - TUBE, HEIGHT CONTROL, REAR NO.11 | ||||
| 48989-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48998C - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.11) | ||||
| 90301-04006 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| 48998C - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.11) | ||||
| 90301-04006 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| Common parts | ||||
| 90178-06006 | ||||
| 90301-04011 | ||||
| 90468-12012 | ||||
| 91651-40618 | ||||
| 91651-60818 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 5701 | ||||

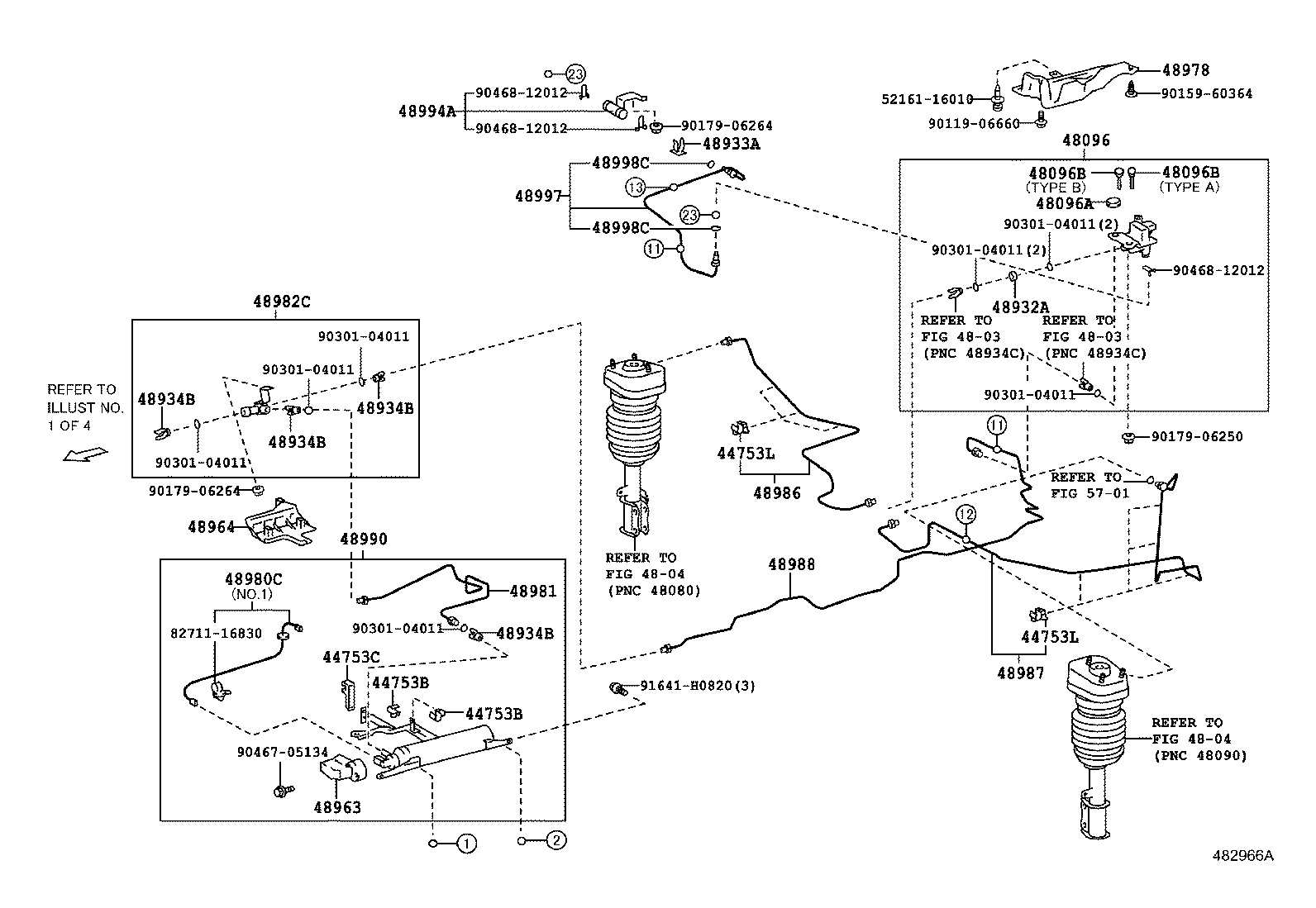

ILLUST NO. 2 OF 4(0302-0601)MCU35..LHD ; (0601- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753B - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 44753-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 44753B - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 44753-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 44753C - CLAMP, HEIGHT CONTROL TUBE, NO.2 | ||||
| 44753-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 44753L - CLAMP, HEIGHT CONTROL TUBE NO.9 | ||||
| 44753-48100 |
MCU35 SUSPENSION-AIR SUSPENSION |
7 | ||
| 44753L - CLAMP, HEIGHT CONTROL TUBE NO.9 | ||||
| 44753-48100 |
MCU35 SUSPENSION-AIR SUSPENSION |
7 | ||
| 48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48096-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90389-06054 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90541-05023 |
MCU35 SUSPENSION-AIR SUSPENSION,TYPE A |
1 | ||
| 90541-07039 |
MCU35 SUSPENSION-AIR SUSPENSION,TYPE B |
1 | ||
| 48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90541-05023 |
MCU35 SUSPENSION-AIR SUSPENSION,TYPE A |
1 | ||
| 90541-07039 |
MCU35 SUSPENSION-AIR SUSPENSION,TYPE B |
1 | ||
| 48932A - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
2 | ||
| 48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
3 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| 48963 - COVER, HEIGHT CONTROL TANK | ||||
| 48963-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48964 - COVER, HEIGHT CONTROL CASE | ||||
| 48964-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48978 - COVER, HEIGHT CONTROL COMPRESSOR | ||||
| 48978-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48980C - HARNESS ASSY, HEIGHT CONTROL VALVE | ||||
| 48980-48010 |
MCU35 SUSPENSION-AIR SUSPENSION,NO.1 |
1 | ||
| 48980-48021 |
MCU35 SUSPENSION-AIR SUSPENSION,NO.2 |
1 | ||
| 48980-48020 |
MCU35 SUSPENSION-AIR SUSPENSION,NO.2 |
1 | ||
| 48981 - TUBE, HEIGHT CONTROL, NO.1 | ||||
| 48981-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48982C - WAY, NO.2(FOR HEIGHT CONTROL TUBE) | ||||
| 48976-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48988 - TUBE, HEIGHT CONTROL, NO.8 | ||||
| 48988-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48990 - TANK ASSY, PNEUMATIC W/TUBE | ||||
| 48990-48010 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48994A - WAY, NO.1(FOR REAR HEIGHT CONTROL TUBE) | ||||
| 48976-48030 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48997 - TUBE, HEIGHT CONTROL, REAR NO.4 | ||||
| 48982-48020 |
MCU35 SUSPENSION-AIR SUSPENSION |
1 | ||
| 48998C - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.11) | ||||
| 90301-04006 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| 48998C - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.11) | ||||
| 90301-04006 |
MCU35 SUSPENSION-AIR SUSPENSION |
4 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 82711-16830 | ||||
| 90119-06660 | ||||
| 90159-60364 | ||||
| 90179-06250 | ||||
| 90179-06264 | ||||
| 90301-04011 | ||||
| 90467-05134 | ||||
| 90468-12012 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 4804 | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
