MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302-0812)

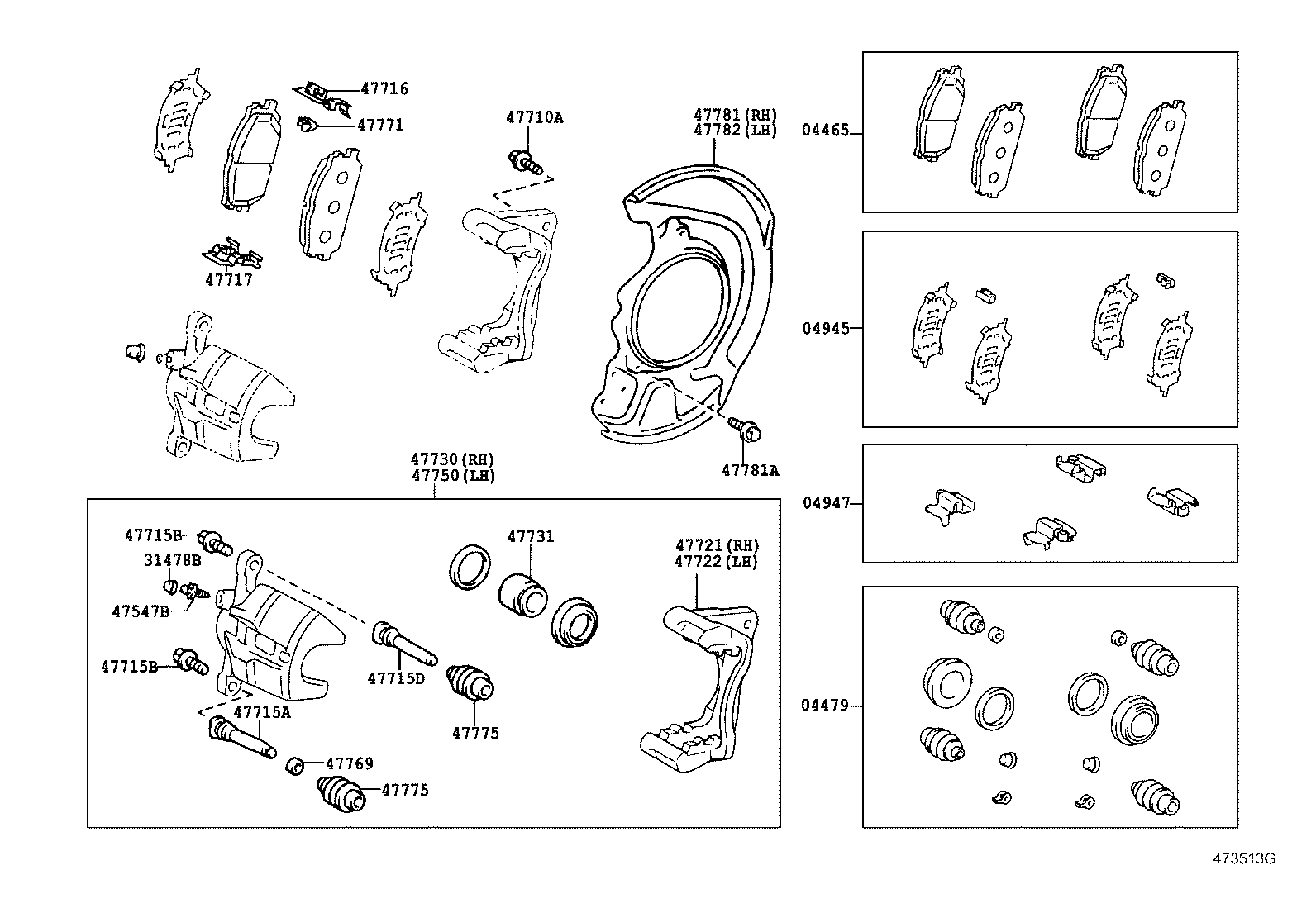

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715B 47715B 47715D 47716 47717 47721 47722 47730 47731 47750 47769 47771 47775 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-48080

MCU3#..ARL,EUR

MARK NBK PN532H

 1
04465-0W070

MCU35

TEXTAR T4146

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-48040

MCU3#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-48051

MCU3#

 1
04945-48080

MCU3#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-48050

MCU3#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

MCU3#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

MCU3#..ARL,EUR

 2
47547-20010

MCU3#..ARL,EUR

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

MCU3#

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-48050

MCU3#..ARL,EUR

 2
47714-48050

MCU3#..ARL,EUR

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08346

MCU3#..ARL,EUR

 4
90105-08346

MCU3#..ARL,EUR

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08346

MCU3#..ARL,EUR

 4
90105-08346

MCU3#..ARL,EUR

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-48050

MCU3#..ARL,EUR

 2
47715-48050

MCU3#..ARL,EUR

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-48120

MCU3#..ARL,EUR

 2
47716-48120

MCU3#..ARL,EUR

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-48050

MCU3#..ARL,EUR

 2
47717-48050

MCU3#..ARL,EUR

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-48140

MCU3#..ARL,EUR

 1
47721-48120

MCU3#..ARL,EUR

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-48140

MCU3#..ARL,EUR

 1
47721-48120

MCU3#..ARL,EUR

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-48140

MCU3#..ARL,EUR

 1
47730-48120

MCU3#..ARL,EUR

 1
47731 - PISTON, FRONT DISC BRAKE
47731-28080

MCU3#..ARL,EUR

 2
47731-28080

MCU3#..ARL,EUR

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-48120

MCU3#..ARL,EUR

 1
47750-48140

MCU3#..ARL,EUR

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-33020

MCU3#..ARL,EUR

 2
47769-33020

MCU3#..ARL,EUR

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-48010

MCU3#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-48050

MCU3#..ARL,EUR

 4
47775-48050

MCU3#..ARL,EUR

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-48050

MCU3#..ARL,EUR

 4
47775-48050

MCU3#..ARL,EUR

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-48030

MCU3#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

MCU3#

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-48030

MCU3#

 1
