MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302-0812)LHD

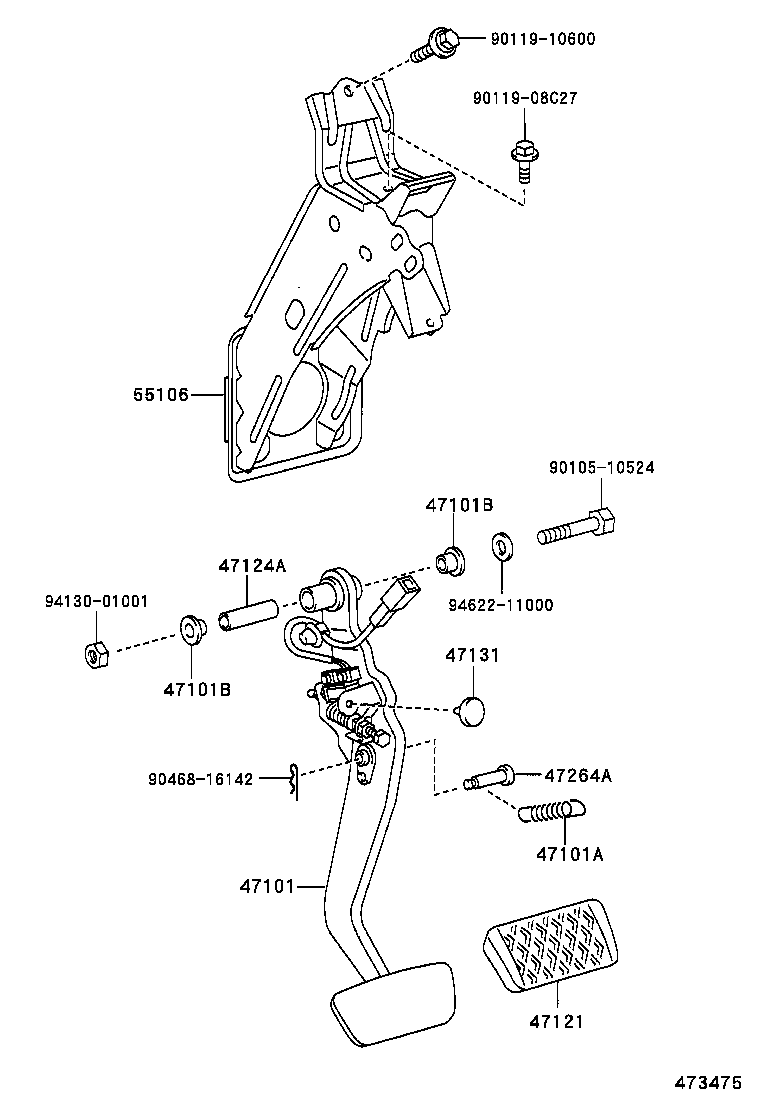

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124A 47131 47264A 55106 9010510524 9011908C27 9011910600 9046816142 9413001001 9462211000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47106-48050

MCU3#..LHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15004

MCU3#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

MCU3#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

MCU3#

 2
47121 - PAD, BRAKE PEDAL
47121-50020

MCU3#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

MCU3#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

MCU3#

 1
47264A - PIN(FOR PUSH ROD)
90249-06180

MCU3#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-48070

MCU3#..LHD

 1
Common parts
90105-10524
90119-08C27
90119-10600
90468-16142
94130-01001
94622-11000
