MCU35L-AWAGKW (2003)

Toyota Lexus Rx300/330/350

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

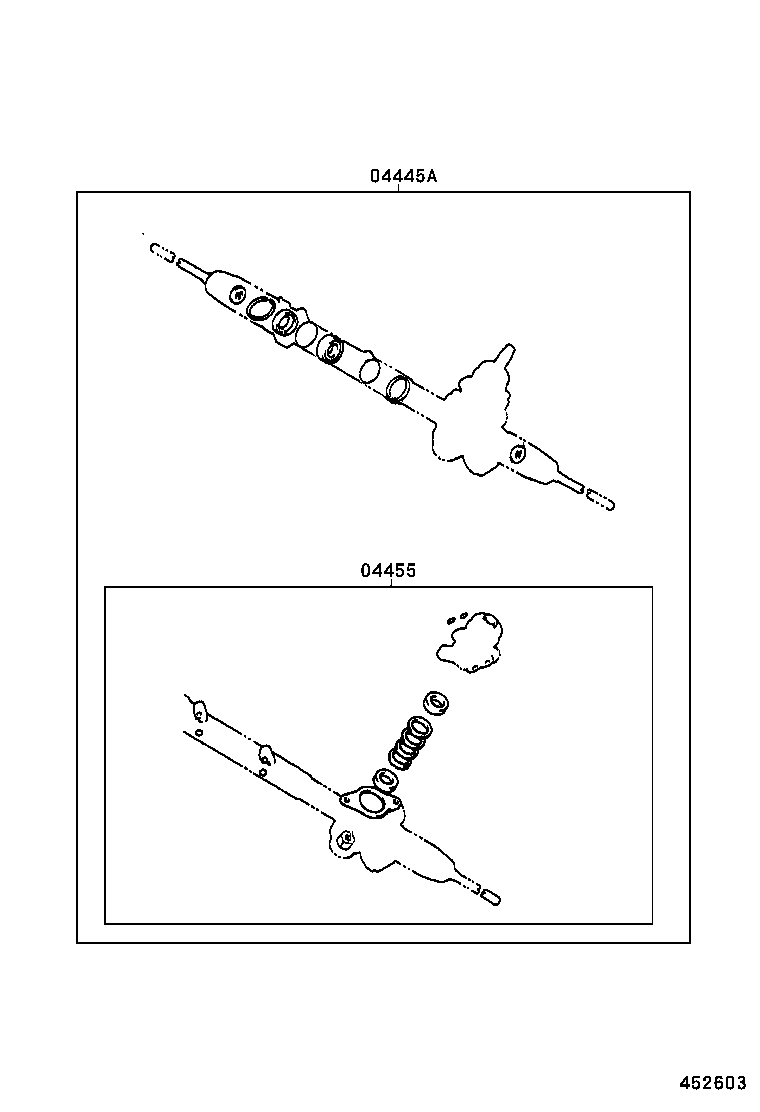

ILLUST NO. 2 OF 2(0302- )LHD

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-48040

MCU3#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-48020

MCU3#

 1

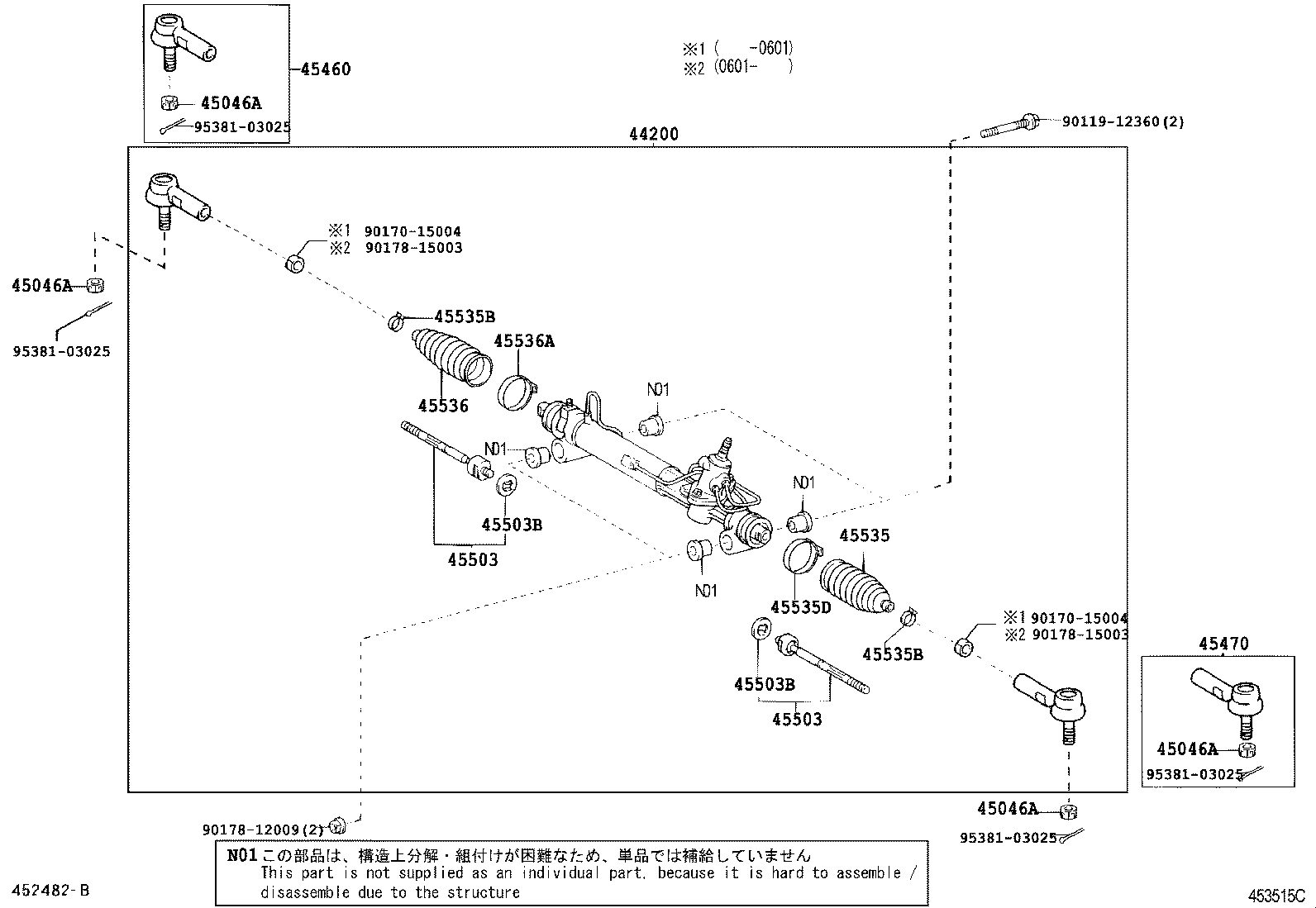

ILLUST NO. 1 OF 2(0302- )LHD

Click highlighted areas on diagram

diagram 44200 45046A 45046A 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45535 45535B 45535B 45535D 45536 45536A 9011912360 9017015004 9017015004 9017812009 9017815003 9017815003 9538103025 9538103025 9538103025 9538103025
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-48090

MCU3#..LHD

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MCU3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MCU3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MCU3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MCU3#

 2
45460 - ROD ASSY, TIE, RH
45460-29435

MCU3#..LHD

 1
45470 - ROD ASSY, TIE, LH
45460-29435

MCU3#..LHD

 1
45503 - END SUB-ASSY, STEERING RACK
45503-49125

MCU3#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-49125

MCU3#

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

MCU3#

OD=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

MCU3#

OD=38

 2
45535 - BOOT, STEERING RACK, NO.1
45535-08010

MCU3#

(L)

 1
45535-48020

MCU3#

(J)

 1
45535-0E010

MCU3#

(L)

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46153

MCU3#

(L)

 2
90467-19017

MCU3#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46153

MCU3#

(L)

 2
90467-19017

MCU3#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-60007

MCU3#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-48020

MCU3#

(J)

 1
45535-08010

MCU3#

(L)

 1
45535-0E010

MCU3#

(L)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-60007

MCU3#

 1
Common parts
90119-12360
90170-15004
90178-12009
90178-15003
95381-03025
