GSU35R-AWAGKQ (2006)

Toyota Lexus Rx300/330/350

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0812)RHD

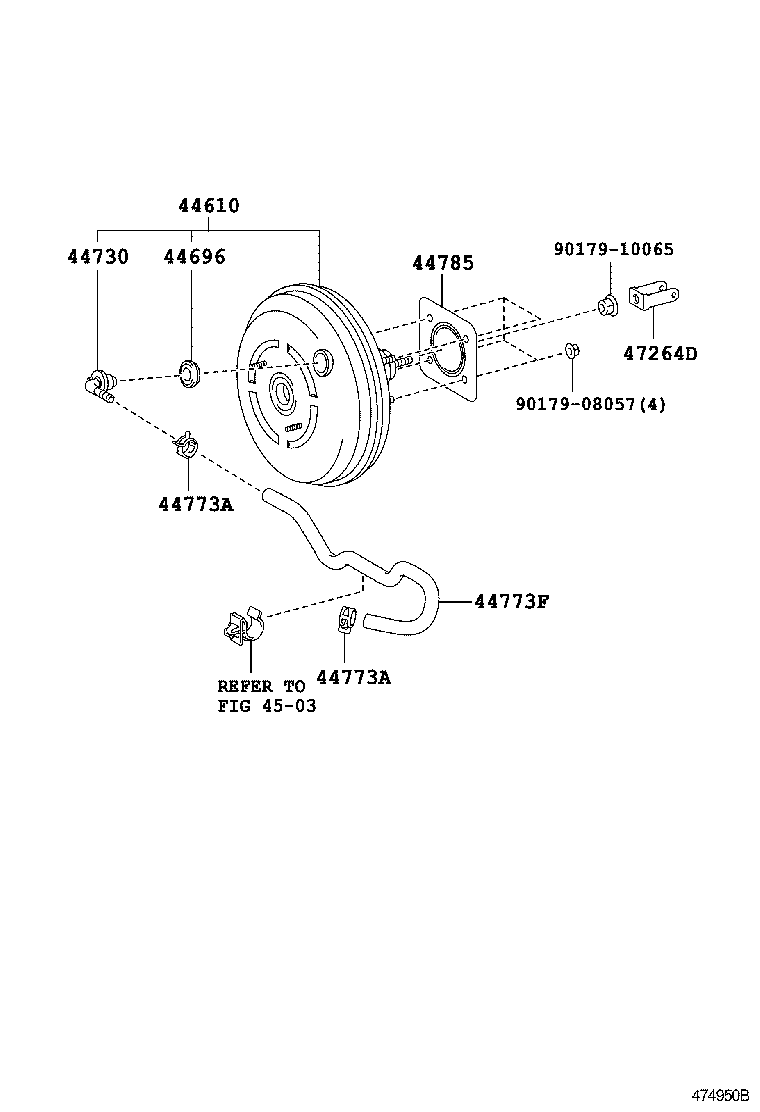

Click highlighted areas on diagram

diagram 44610 44696 44730 44773A 44773A 44773F 44785 4503 47264D 9017908057 9017910065
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-48241

GSU35..ARL

 1
44610-48201

GSU35..ARL

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GSU35

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070

GSU35

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16014

GSU35

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16014

GSU35

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-48140

GSU35..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-10020

GSU35

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

GSU35

 1
Common parts
90179-08057
90179-10065
Linked diagrams
4503
