GYL15R-AWXGKW (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1203)GYL1#..RHD

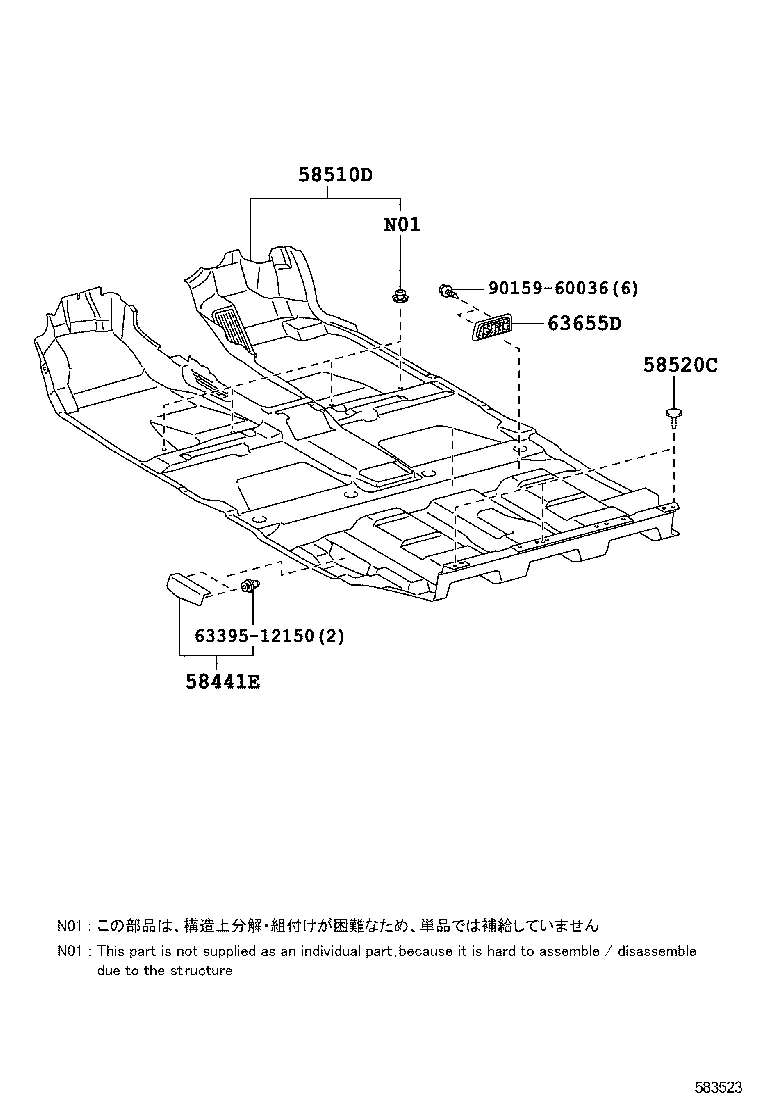

Click highlighted areas on diagram

diagram 58441E 58510D 58520C 6339512150 63655D 9015960036
Part # Description Qty Price
58441E - COVER, BATTERY SERVICE HOLE
58441-48030C0

GYL1#

BLACK,TRIM1#,2#

 1
58441-48030A0

GYL1#

IVORY,TRIM0#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-48300A0

GYL1#..RHD

IVORY,TRIM0#

 1
58510-48300C0

GYL1#..RHD

BLACK,TRIM1#,2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

AGL10,GGL15,GYL1#

BLACK

 3
63655D - COVER, AIR INTAKE
63655-48020C0

GYL1#

BLACK,TRIM1#,2#

 3
63655-48020A0

GYL1#

IVORY,TRIM0#

 3
Common parts
63395-12150
90159-60036
