GYL15R-AWXGKW (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )GYL1#..RHD

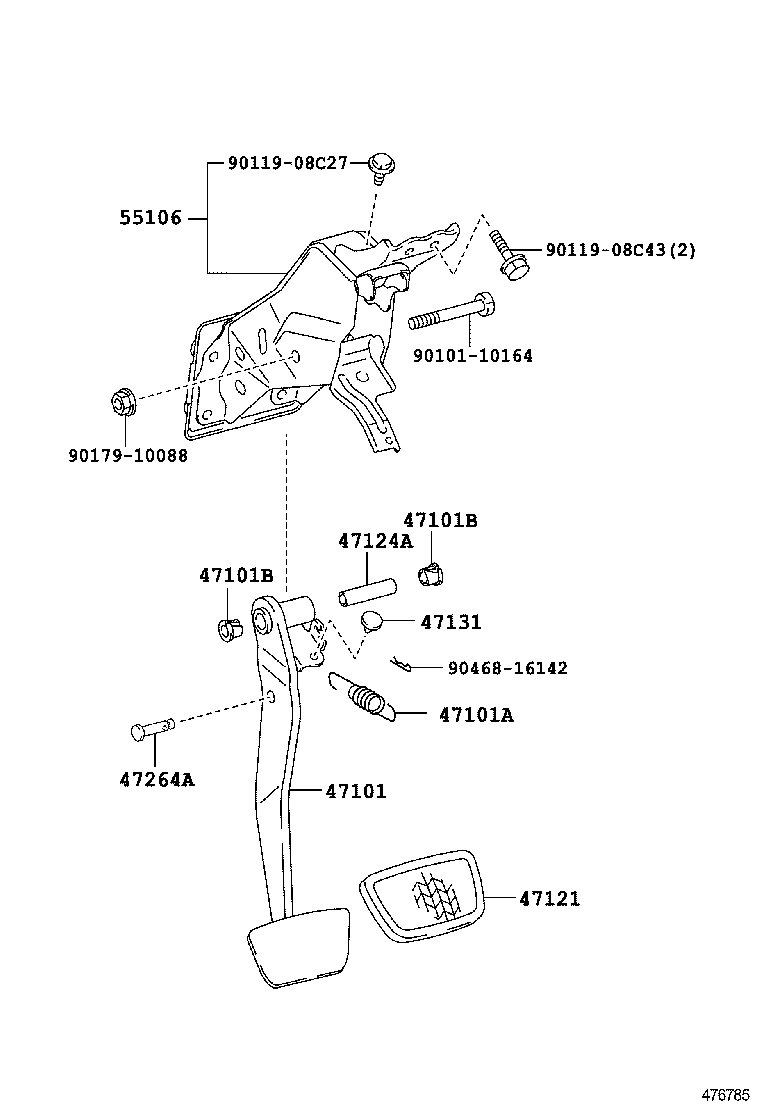

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124A 47131 47264A 55106 9010110164 9011908C27 9011908C43 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-48190

GYL1#..RHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12011

GYL1#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AGL10,GGL15,GYL1#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AGL10,GGL15,GYL1#

 2
47121 - PAD, BRAKE PEDAL
47121-50020

AGL10,GGL15,GYL1#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10105

GYL1#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

AGL10,GGL15,GYL1#

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

GYL1#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-48200

GYL1#..RHD

 1
Common parts
90101-10164
90119-08C27
90119-08C43
90179-10088
90468-16142
