GYL15R-AWXGKW (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )2GRFXE

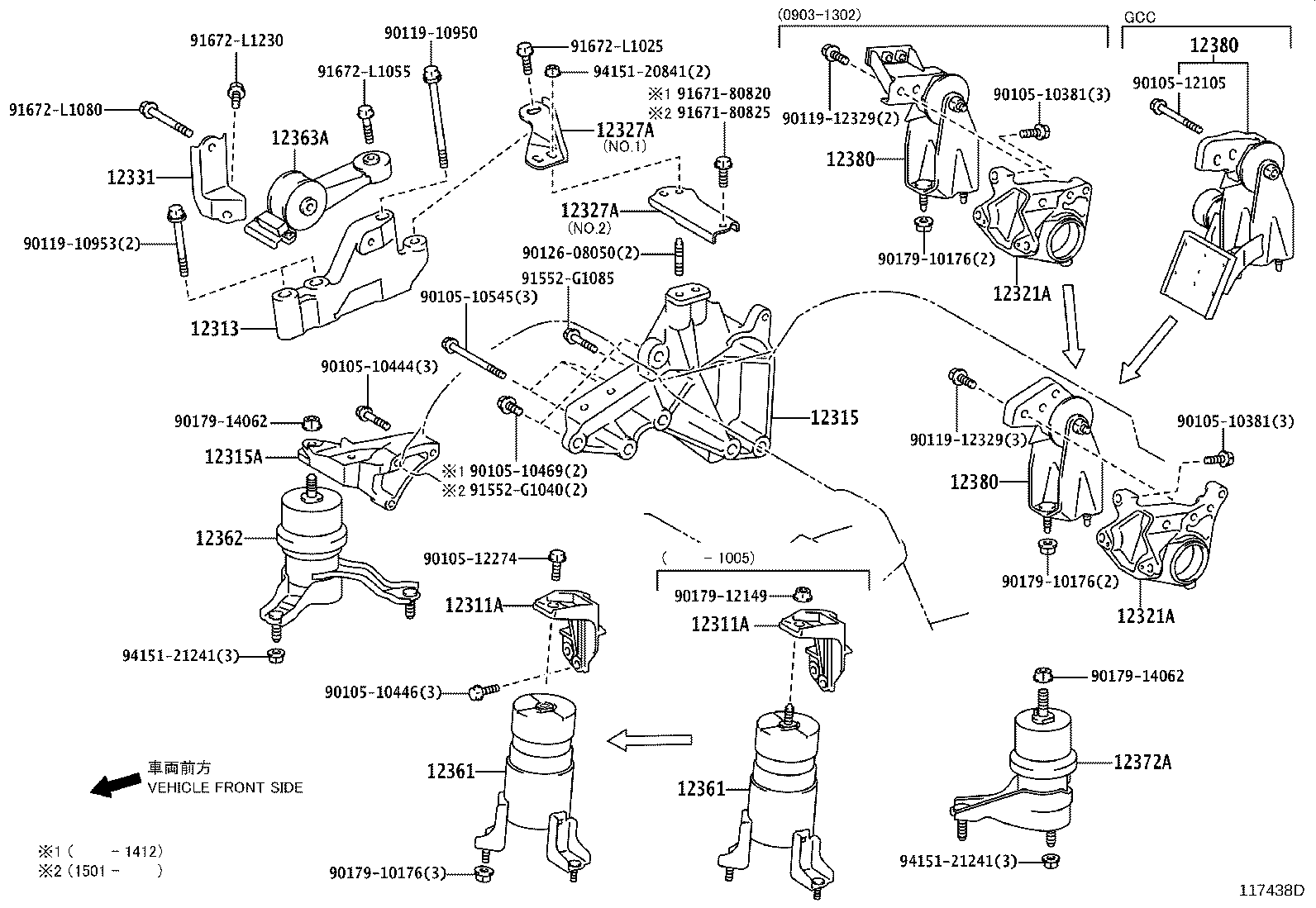

Click highlighted areas on diagram

diagram 12311A 12311A 12313 12315 12315A 12321A 12321A 12327A 12327A 12331 12361 12361 12362 12363A 12372A 12380 12380 12380 9010510381 9010510381 9010510444 9010510446 9010510469 9010510545 9010512105 9010512274 9011910950 9011910953 9011912329 9011912329 9012608050 9017910176 9017910176 9017910176 9017912149 9017914062 9017914062 91552G1040 91552G1085 9167180820 9167180825 91672L1025 91672L1055 91672L1080 91672L1230 9415120841 9415121241 9415121241
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-31110

2GRFXE..GYL1#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-31110

2GRFXE..GYL1#

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-31050

2GR#..GGL15,GYL1#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31091

2GR#..GGL15,GYL1#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12319-31010

2GR#..GGL15,GYL1#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31140

2GRFXE..GYL1#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31140

2GRFXE..GYL1#

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31020

2GRFXE..GYL1#

NO.1

 1
12327-31010

2GRFXE..GYL1#

NO.2

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31020

2GRFXE..GYL1#

NO.1

 1
12327-31010

2GRFXE..GYL1#

NO.2

 1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-31010

2GR#..GGL15,GYL1#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-20231

2GRFXE..GYL1#

 1
12361-20232

2GRFXE..GYL1#

 1
12361-20230

2GRFXE..GYL1#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-20231

2GRFXE..GYL1#

 1
12361-20232

2GRFXE..GYL1#

 1
12361-20230

2GRFXE..GYL1#

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-31040

2GR#..GGL15,GYL1#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-31070

2GRFXE..GYL1#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-31050

2GRFXE..GYL1#

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-31060

2GRFXE..GYL1#

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-31060

2GRFXE..GYL1#

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-31060

2GRFXE..GYL1#

 1
Common parts
90105-10381
90105-10444
90105-10446
90105-10469
90105-10545
90105-12105
90105-12274
90119-10950
90119-10953
90119-12329
90126-08050
90179-10176
90179-12149
90179-14062
91552-G1040
91552-G1085
91671-80820
91671-80825
91672-L1025
91672-L1055
91672-L1080
91672-L1230
94151-20841
94151-21241
