GYL15L-AWXGKW (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )GYL1#..LHD

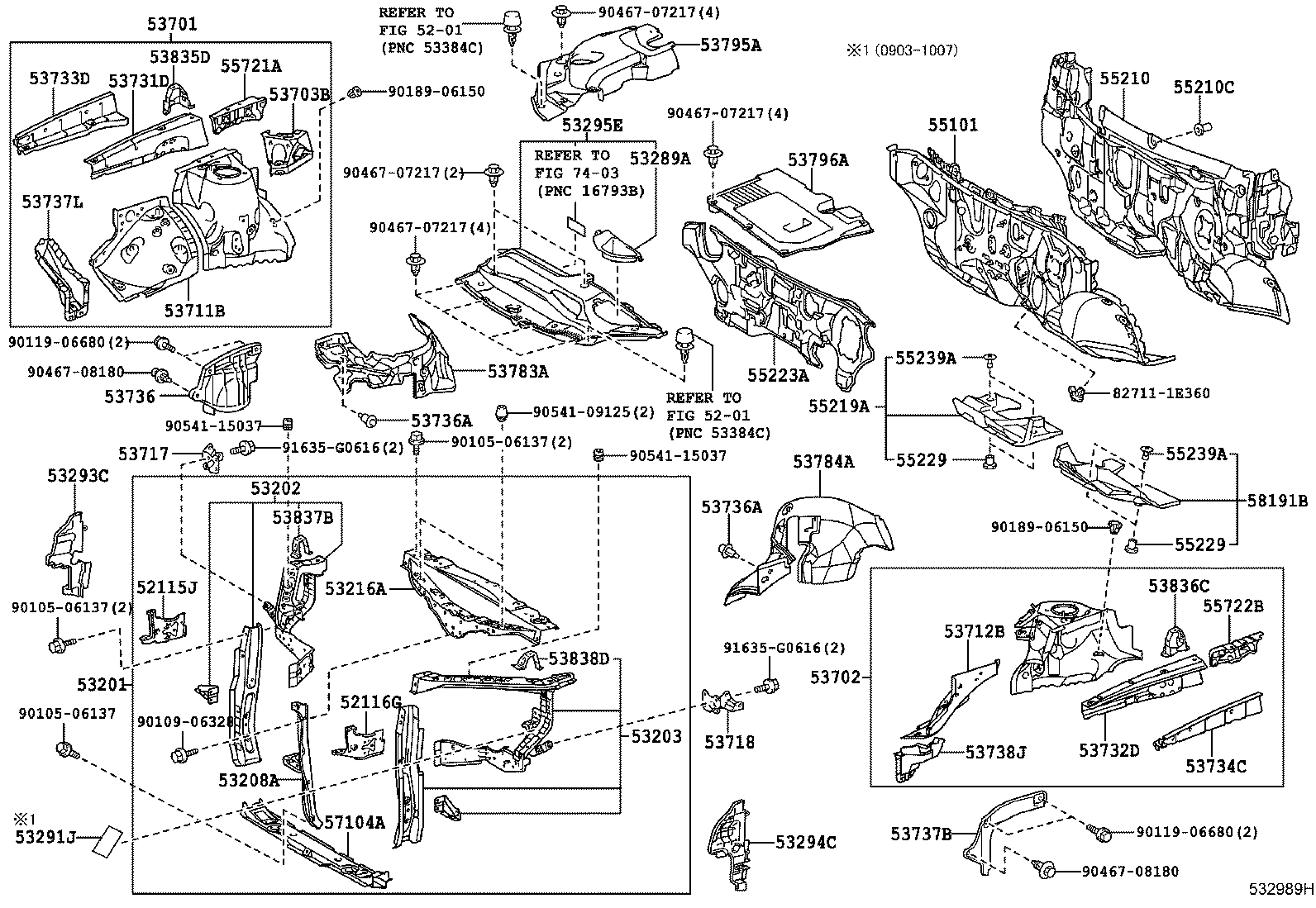

Click highlighted areas on diagram

diagram 5201 5201 52115J 52116G 53201 53202 53203 53208A 53216A 53289A 53291J 53293C 53294C 53295E 53701 53702 53703B 53711B 53712B 53717 53718 53731D 53732D 53733D 53734C 53736 53736A 53736A 53737B 53737L 53738J 53783A 53784A 53795A 53796A 53835D 53836C 53837B 53838D 55101 55210 55210C 55219A 55223A 55229 55229 55239A 55239A 55721A 55722B 57104A 58191B 7403 827111E360 9010506137 9010506137 9010506137 9010906328 9011906680 9011906680 9018906150 9018906150 9046707217 9046707217 9046707217 9046707217 9046708180 9046708180 9054109125 9054115037 9054115037 91635G0616 91635G0616
Part # Description Qty Price
52115J - SUPPORT, FRONT BUMPER SIDE, RH
52115-48080

AGL10,GGL15,GYL1#

 1
52116G - SUPPORT, FRONT BUMPER SIDE, LH
52116-48060

AGL10,GGL15,GYL1#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-48110

GYL1#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-48070

AGL10,GGL15,GYL1#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-48090

GYL1#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-48060

AGL10,GGL15,GYL1#

 1
53216A - SUPPORT, RADIATOR, UPPER
53216-48070

AGL10,GGL15,GYL1#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-48011

AGL10,GGL15,GYL1#

 1
53291J - SEAL, RADIATOR SUPPORT
53291-48010

GYL1#

 1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-48080

AGL10,GGL15,GYL1#

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-48080

AGL10,GGL15,GYL1#

 1
53295E - SEAL, COOL AIR INTAKE DUCT
53295-48042

AGL10,GGL15,GYL1#

 1
53295-48041

AGL10,GGL15,GYL1#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-48080

AGL10,GGL15,GYL1#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-48040

AGL10,GGL15,GYL1#

 1
53703B - RETAINER SUB-ASSY, FENDER APRON, RH
53703-48040

AGL10,GGL15,GYL1#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-48040

AGL10,GGL15,GYL1#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-48050

AGL10,GGL15,GYL1#

 1
53717 - PLATE, FENDER APRON, RH
53717-48050

AGL10,GGL15,GYL1#

 1
53718 - PLATE, FENDER APRON, LH
53718-48040

AGL10,GGL15,GYL1#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-48040

AGL10,GGL15,GYL1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-48050

AGL10,GGL15,GYL1#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-48030

AGL10,GGL15,GYL1#

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-48030

AGL10,GGL15,GYL1#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-33040

AGL10,GGL15,GYL1#

 1
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10170C0

AGL10,GGL15,GYL1#

BLACK

 2
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10170C0

AGL10,GGL15,GYL1#

BLACK

 2
53737B - SEAL, FRONT FENDER APRON, LH
53737-48060

GYL1#

 1
53737L - GUSSET, FRONT FENDER APRON WIND GUIDE, RH
53707-48020

AGL10,GGL15,GYL1#

 1
53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH
53738-48030

AGL10,GGL15,GYL1#

 1
53783A - INSULATOR, APRON FRONT FENDER, RH
53783-48010

AGL10,GGL15,GYL1#

 1
53784A - INSULATOR, APRON FRONT FENDER, LH
53784-48010

AGL10,GGL15,GYL1#

 1
53795A - COVER, ENGINE ROOM, SIDE
53795-48091

GYL1#

 1
53796A - COVER, ENGINE ROOM SIDE, LH
53796-48091

GYL1#

 1
53835D - BRACKET, FRONT SIDE PANEL, RH
53835-48040

AGL10,GGL15,GYL1#

 1
53836C - BRACKET, FRONT SIDE PANEL, LH
53836-48030

AGL10,GGL15,GYL1#

 1
53837B - BRACKET, FRONT SIDE PANEL, NO.2
53837-48030

AGL10,GGL15,GYL1#

 1
53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH
53838-48030

AGL10,GGL15,GYL1#

 1
55101 - PANEL SUB-ASSY, DASH
55101-48140

GYL1#..LHD

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-48170

AGL10,GGL15,GYL1#..LHD

 1
55210C - CLIP
90467-06197

AGL10,GGL15,GYL1#

 8
55219A - PACKING, DASH PANEL HOLE COVER
55219-48020

AGL10,GGL15,GYL1#..LHD

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-48160

AGL10,GGL15,GYL1#..LHD

 1
55229 - PLATE, DASH PANEL INSULATOR, NO.4
55229-48020

AGL10,GGL15,GYL1#..LHD

 4
55229 - PLATE, DASH PANEL INSULATOR, NO.4
55229-48020

AGL10,GGL15,GYL1#..LHD

 4
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-48020

AGL10,GGL15,GYL1#..LHD

 4
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-48020

AGL10,GGL15,GYL1#..LHD

 4
55721A - BRACE, COWL TOP TO COWL, INNER NO.1
55721-48020

AGL10,GGL15,GYL1#

 1
55722B - BRACE, COWL TOP TO COWL, INNER NO.2
55722-48040

AGL10,GGL15,GYL1#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-48050

AGL10,GGL15,GYL1#

 1
58191B - FOOTREST, FRONT FLOOR
58191-48080

AGL10,GGL15,GYL1#..LHD

 1
58191-48081

AGL10,GGL15,GYL1#..LHD

 1
Common parts
82711-1E360
90105-06137
90109-06328
90119-06680
90189-06150
90467-07217
90467-08180
90541-09125
90541-15037
91635-G0616
