GYL15L-AWXGKW (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )2GRFXE

Click highlighted areas on diagram

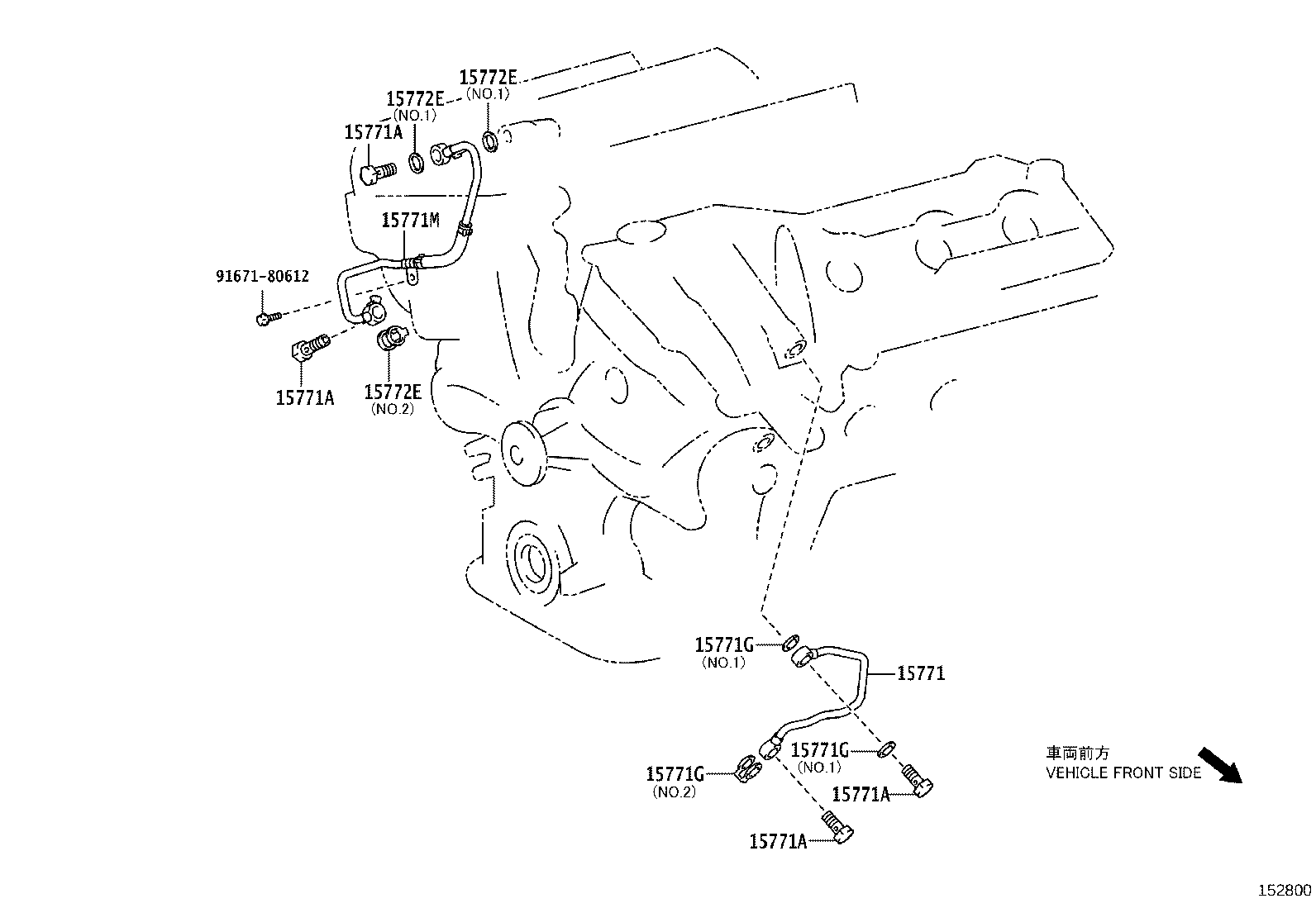

diagram 15771 15771A 15771A 15771A 15771A 15771G 15771G 15771G 15771M 15772E 15772E 15772E 9167180612
Part # Description Qty Price
15771 - PIPE, OIL, NO.1
15771-31010

2GR#..GGL15,GYL1#

 1
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GGL15,GYL1#

 4
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GGL15,GYL1#

 4
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GGL15,GYL1#

 4
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GGL15,GYL1#

 4
15771G - GASKET
90430-16016

2GR#..GGL15,GYL1#

NO.2

 1
90430-16017

2GR#..GGL15,GYL1#

NO.1

 2
15771G - GASKET
90430-16016

2GR#..GGL15,GYL1#

NO.2

 1
90430-16017

2GR#..GGL15,GYL1#

NO.1

 2
15771G - GASKET
90430-16016

2GR#..GGL15,GYL1#

NO.2

 1
90430-16017

2GR#..GGL15,GYL1#

NO.1

 2
15771M - PIPE, OIL
15772-31030

2GR#..GGL15,GYL1#

 1
15772E - GASKET(FOR OIL PIPE)
90430-16017

2GR#..GGL15,GYL1#

NO.1

 2
90430-16016

2GR#..GGL15,GYL1#

NO.2

 1
15772E - GASKET(FOR OIL PIPE)
90430-16017

2GR#..GGL15,GYL1#

NO.1

 2
90430-16016

2GR#..GGL15,GYL1#

NO.2

 1
15772E - GASKET(FOR OIL PIPE)
90430-16017

2GR#..GGL15,GYL1#

NO.1

 2
90430-16016

2GR#..GGL15,GYL1#

NO.2

 1
Common parts
91671-80612
