GYL10R-AWXGKW (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )GYL1#..RHD

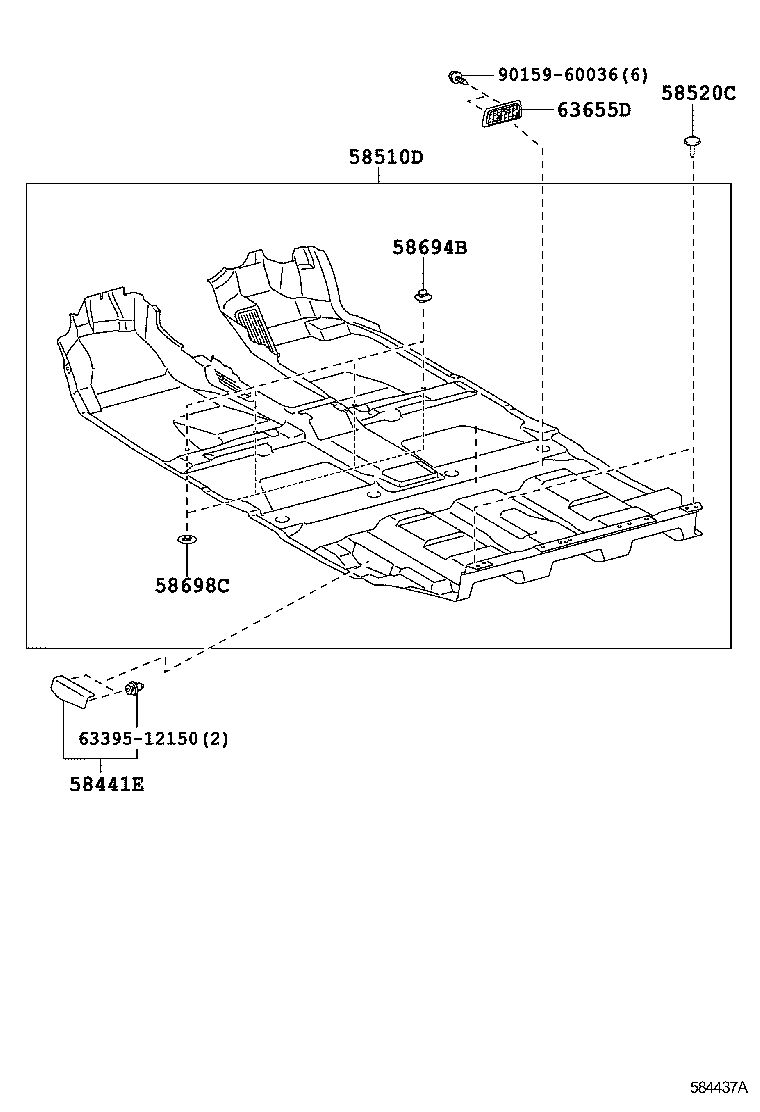

Click highlighted areas on diagram

diagram 58441E 58510D 58520C 58694B 58698C 6339512150 63655D 9015960036
Part # Description Qty Price
58441E - COVER, BATTERY SERVICE HOLE
58441-48031A0

GYL1#

IVORY,TRIM0#

 1
58441-48030B0

GYL1#

LT.GRAY,TRIM1#

 1
58441-48030A0

GYL1#

IVORY,TRIM0#

 1
58441-48030C0

GYL1#

BLACK,TRIM2#,3#,4#

 1
58441-48031C0

GYL10

BLACK,TRIM2#,4#

 1
58441-48031B0

GYL1#..EUR

LT.GRAY,TRIM1#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-48301C0

GYL1#..RHD

BLACK,TRIM2#,3#,4#

 1
58510-48301B0

GYL1#..RHD

LT.GRAY,TRIM1#

 1
58510-48301A0

GYL1#..RHD

IVORY,TRIM0#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

AGL10,GGL15,GYL1#

BLACK

 3
90467-07049C0

AGL10,GGL15,GYL1#

BLACK

 3
58694B - PLATE, MAT SET, UPPER
58694-76010

AGL10,GGL15,GYL1#

 4
58698C - PLATE, MAT SET, LOWER
58698-76010

AGL10,GGL15,GYL1#

 4
63655D - COVER, AIR INTAKE
63655-48020A0

GYL1#

IVORY,TRIM0#

 3
63655-48020B0

GYL1#

LT.GRAY,TRIM1#

 3
63655-48020C0

GYL1#

BLACK,TRIM2#,3#,4#

 3
Common parts
63395-12150
90159-60036
