GGL15R-AWTGKW (2012)
Toyota Lexus Rx270/350/450h

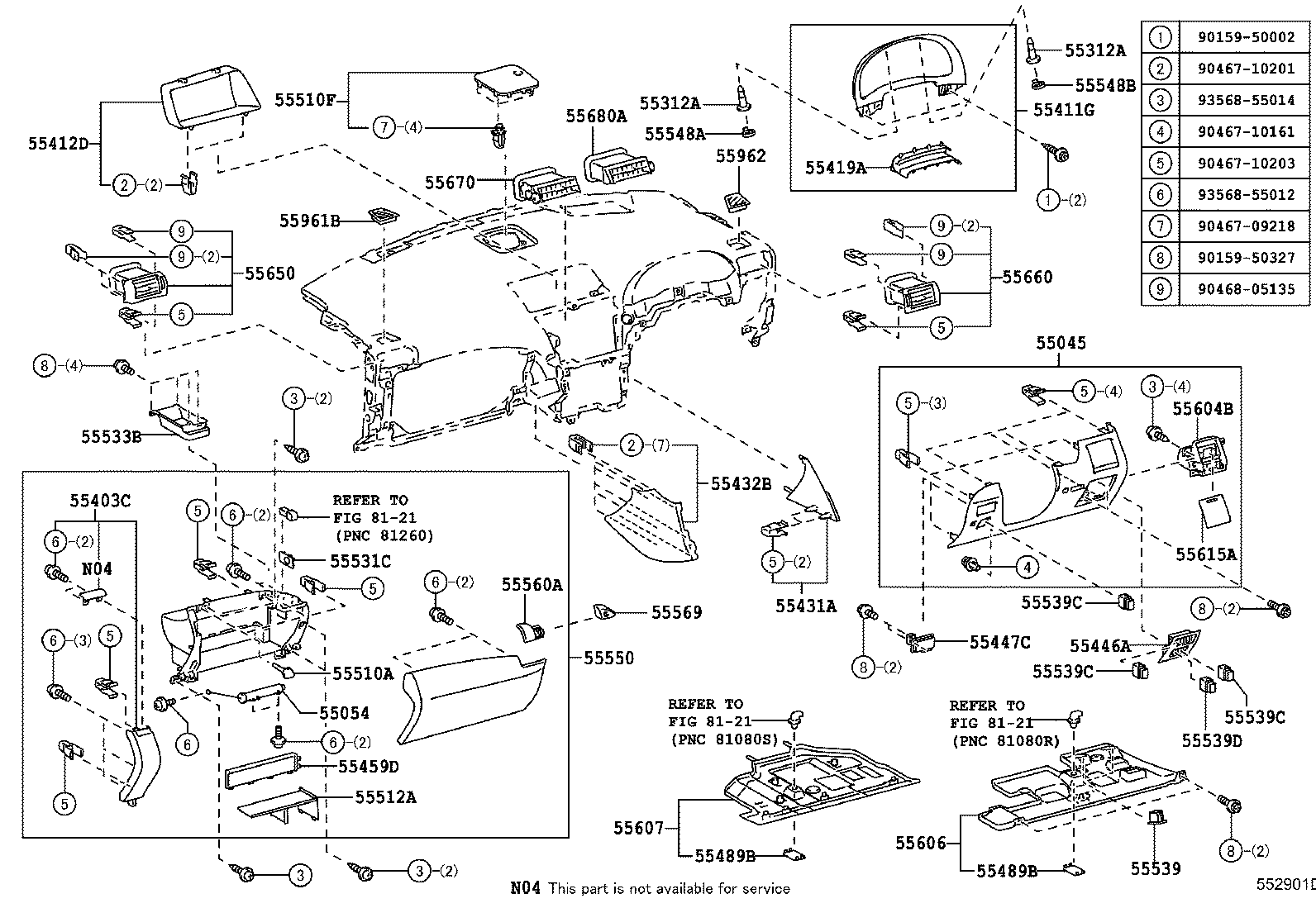

ILLUST NO. 2 OF 2(1203- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-48150C0 |
AGL10,GGL15,GYL10..RHD BLACK,TRIM2# |
1 | ||
| 55045-48150B0 |
AGL10,GGL15,GYL10..RHD LT.GRAY,TRIM1# |
1 | ||
| 55045-48150C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55045-48150A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55045-48150A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 55054-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 55054-48051 |
AGL10,GGL15,GYL1# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-0707122 |
AGL10,GGL15,GYL1# BLACK |
2 | ||
| 90467-0707122 |
AGL10,GGL15,GYL1# BLACK |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-0707122 |
AGL10,GGL15,GYL1# BLACK |
2 | ||
| 90467-0707122 |
AGL10,GGL15,GYL1# BLACK |
2 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-48030A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55403-48030C0 |
AGL10,GGL15,GYL10..RHD BLACK,TRIM2# |
1 | ||
| 55403-48050C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55403-48050A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55403-48030B0 |
AGL10,GGL15,GYL10..RHD LT.GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55404-48050E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55404-48050C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55404-48050E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55404-48050C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-48180C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55405-48180C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55405-48180E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55405-48180E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-48010C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 55419-48010C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55419-48010E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55419-48010E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-48010E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55431-48010C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55431-48010C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55431-48010E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-48390C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55432-48390E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55432-48390C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55432-48390E0 |
AGL10,GGL15,GYL1#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-48040C0 |
AGL10,GGL15,GYL10..RHD BLACK,TRIM2# |
1 | ||
| 55446-48040B0 |
AGL10,GGL15,GYL10..RHD LT.GRAY,TRIM1# |
1 | ||
| 55446-48040A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55446-48040A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55446-48040C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-48060C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM2# |
1 | ||
| 55447-48060B0 |
AGL10,GGL15,GYL1#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55447-48060A0 |
AGL10,GGL15,GYL1#..RHD HEAD UP DISPLAY-WITH,IVORY,TRIM0# |
1 | ||
| 55447-48060A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55447-48060A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55447-48060B0 |
AGL10,GGL15,GYL1#..RHD HEAD UP DISPLAY-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55447-48060C0 |
AGL10,GGL15,GYL1#..RHD HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55447-48060C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55447-48060A0 |
AGL10,GGL15,GYL1#..RHD HEAD UP DISPLAY-WITH,IVORY,TRIM0# |
1 | ||
| 55447-48060C0 |
AGL10,GGL15,GYL1#..RHD HEAD UP DISPLAY-WITH,BLACK,TRIM2# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48030 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55459-48030 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
AGL10,GGL15,GYL1# |
1 | ||
| 55489-50010 |
AGL10,GGL15,GYL1# |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
AGL10,GGL15,GYL1# |
1 | ||
| 55489-50010 |
AGL10,GGL15,GYL1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
AGL10,GGL15,GYL1# |
2 | ||
| 90541-04002 |
AGL10,GGL15,GYL1# |
2 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-48030E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55510-48040C0 |
AGL10,GGL15,GYL1#..EUR AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55510-48040C0 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55510-48030C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 55510-48040E0 |
AGL10,GGL15,GYL1#..EUR AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,DK. BROWN,TRIM0# |
1 | ||
| 55510-48040E0 |
AGL10,GGL15,GYL15 AUDIO-DVD,15SPEAKER,MARK LEVINSON,DK. BROWN,TRIM0# |
1 | ||
| 55510-48040C0 |
AGL10,GGL15,GYL15 AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55510-48040C0 |
AGL10,GGL15,GYL1#..EUR AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55510-48030C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55510-48040E0 |
AGL10,GGL15,GYL1#..EUR AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,DK. BROWN,TRIM0# |
1 | ||
| 55510-48040E0 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR,DK. BROWN,TRIM0# |
1 | ||
| 55510-48030E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-48030 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55512-48030 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55531C - PIN, GLOVE DOOR STOPPER | ||||
| 55531-48020 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55531-48020 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55533B - PANEL, GLOVE COMPARTMENT SIDE, RH | ||||
| 55533-48010 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55533-48010 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 55539-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-48020C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55548-48020E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55548-48020E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55548-48020C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55549-48010C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 55549-48010E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55549-48010C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55549-48010E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-48010A0 |
AGL10,GGL15,GYL10..RHD IVORY,TRIM0# |
1 | ||
| 55550-48010B0 |
AGL10,GGL15,GYL10..RHD LT.GRAY,TRIM1# |
1 | ||
| 55550-48010C0 |
AGL10,GGL15,GYL10..RHD BLACK,TRIM2# |
1 | ||
| 55550-48050C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55550-48050A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-48030A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55560-48030B0 |
AGL10,GGL15,GYL10..RHD LT.GRAY,TRIM1# |
1 | ||
| 55560-48030C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55560-48030C0 |
AGL10,GGL15,GYL10..RHD BLACK,TRIM2# |
1 | ||
| 55560-48030A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-48010B0 |
AGL10,GGL15,GYL10..RHD LT.GRAY,TRIM1# |
1 | ||
| 55569-48010A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55569-48010A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55569-48010C0 |
AGL10,GGL15,GYL10..RHD BLACK,TRIM2# |
1 | ||
| 55569-48010C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-48190 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55618-48190 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-48010 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55606-48010 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55606-48040 |
AGL10,GGL15,GYL1#..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48190 |
AGL10,GGL15..RHD |
1 | ||
| 55607-48190 |
AGL10,GGL15..RHD |
1 | ||
| 55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER | ||||
| 55615-48080A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55615-48080B0 |
AGL10,GGL15,GYL10..RHD LT.GRAY,TRIM1# |
1 | ||
| 55615-48080C0 |
AGL10,GGL15,GYL10..RHD BLACK,TRIM2# |
1 | ||
| 55615-48080A0 |
AGL10,GGL15,GYL1#..RHD IVORY,TRIM0# |
1 | ||
| 55615-48080C0 |
AGL10,GGL15,GYL1#..RHD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-48070E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55650-48070C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 55650-48070E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55650-48070C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-48070C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 55660-48070E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55660-48070C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55660-48070E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-48070 |
AGL10,GGL15,GYL1# |
1 | ||
| 55670-48110 |
AGL10,GGL15,GYL1# |
1 | ||
| 55670-48111 |
AGL10,GGL15,GYL1# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-48070 |
AGL10,GGL15,GYL1# |
1 | ||
| 55680-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 55680-48071 |
AGL10,GGL15,GYL1# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-48030E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55961-48030E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55961-48030C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55961-48030C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-48030C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55962-48030E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55962-48030E0 |
AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 55962-48030C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90159-50327 | ||||
| 90467-09218 | ||||
| 90467-10161 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
