GGL15R-AWTGKW (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0812- )

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550C 46550E 46550G 46550H 46580 46590 46612 47405A 47406A 47447C 47447D 47447D 47449A 47449A 47456A 47459B 47611 47612 47613D 9017816001
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-48040

AGL10,GGL15,GYL1#

 1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-48040

AGL10,GGL15,GYL1#

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-48050

AGL10,GGL15,GYL1#

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-48050

AGL10,GGL15,GYL1#

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90507-23014

AGL10,GGL15,GYL1#

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-07018

AGL10,GGL15,GYL1#

 2
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90015-DY008

AGL10,GGL15,GYL1#

 2
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
90507-20016

AGL10,GGL15,GYL1#

 2
46550H - SHIM(FOR PARKING BRAKE SHOE)
90564-09185

AGL10,GGL15,GYL1#

T=0.6

 1
90564-09184

AGL10,GGL15,GYL1#

T=0.3

 1
90564-09186

AGL10,GGL15,GYL1#

T=0.9

 1
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-48050

AGL10,GGL15,GYL1#

 1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46590-48050

AGL10,GGL15,GYL1#

 1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-48040

AGL10,GGL15,GYL1#

 2
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-60010

AGL10,GGL15,GYL1#

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-60010

AGL10,GGL15,GYL1#

 1
47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447-11010

AGL10,GGL15,GYL1#

 4
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
90501-16053

AGL10,GGL15,GYL1#

 4
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
90501-16053

AGL10,GGL15,GYL1#

 4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030

AGL10,GGL15,GYL1#

 4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030

AGL10,GGL15,GYL1#

 4
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-35010

AGL10,GGL15,GYL1#

 2
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010

AGL10,GGL15,GYL1#

 2
47611 - LEVER, PARKING BRAKE SHOE, RH
46611-48040

AGL10,GGL15,GYL1#

 1
47612 - LEVER, PARKING BRAKE SHOE, LH
46621-48040

AGL10,GGL15,GYL1#

 1
47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-14002

AGL10,GGL15,GYL1#

 2
Common parts
90178-16001

ILLUST NO. 1 OF 2(0812- )AGL10,GGL15..RHD

Click highlighted areas on diagram

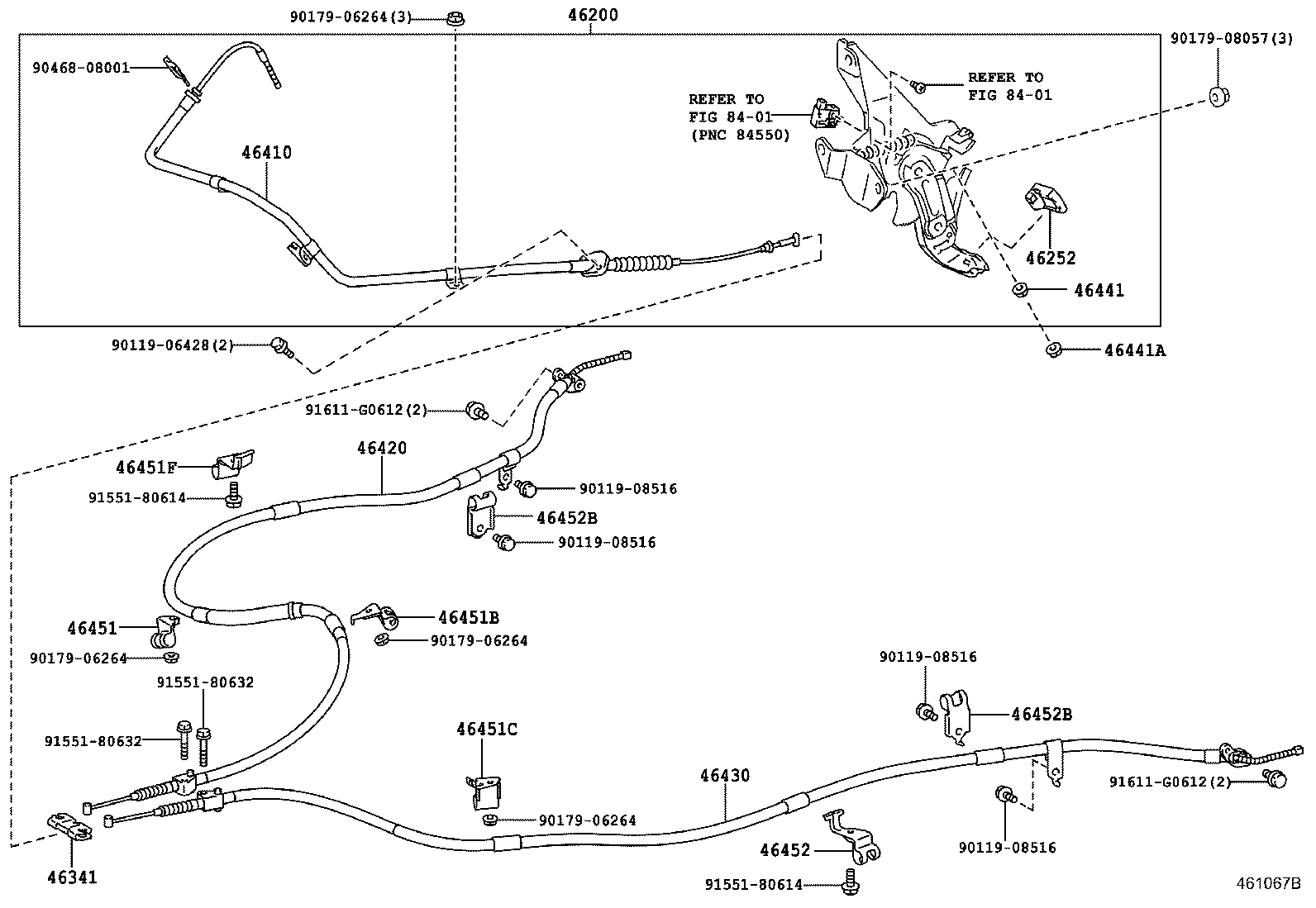

diagram 46200 46252 46341 46410 46420 46430 46441 46441A 46451 46451B 46451C 46451F 46452 46452B 46452B 8401 8401 9011906428 9011908516 9011908516 9011908516 9011908516 9017906264 9017906264 9017906264 9017906264 9017908057 9046808001 9155180614 9155180614 9155180632 9155180632 91611G0612 91611G0612
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-48140

AGL10,GGL15..RHD

 1
46252 - PAD, PARKING PEDAL
46252-22010

AGL10,GGL15,GYL1#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-48010

AGL10,GGL15,GYL1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-48140

AGL10,GGL15..RHD

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-48110

AGL10,GGL15

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-48110

AGL10,GGL15

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

AGL10,GGL15,GYL1#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
94151-80600

AGL10,GGL15,GYL1#

 1
46451 - BRACKET, CABLE SUPPORT
46451-48190

AGL10,GGL15

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-48270

AGL10,GGL15

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-48070

AGL10,GGL15

 1
46451F - BRACKET, CABLE SUPPORT
46451-48150

AGL10,GGL15,GYL1#

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-48160

AGL10,GGL15,GYL1#

 1
46452B - BRACKET, CABLE SUPPORT, NO.2
46451-48170

AGL10,GGL15,GYL1#

 2
46452B - BRACKET, CABLE SUPPORT, NO.2
46451-48170

AGL10,GGL15,GYL1#

 2
Common parts
90119-06428
90119-08516
90179-06264
90179-08057
90468-08001
91551-80614
91551-80632
91611-G0612
Linked diagrams
8401
