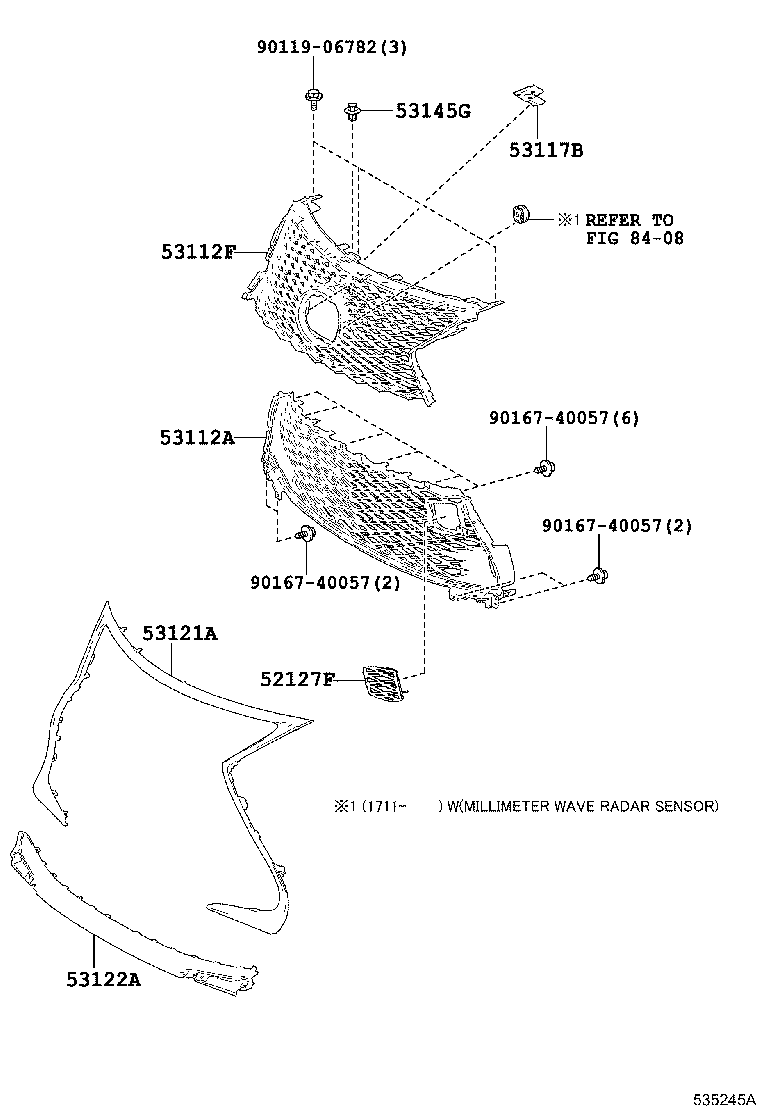

Toyota Lexus rc f USC10 RADIATOR GRILLE

Part #	Description	Period	Qty
52127F - COVER, FRONT BUMPER HOLE
52128-24080	USC10	09/2014 - 02/2019	1
53112A - GRILLE, RADIATOR, LOWER
52112-24040	USC10	09/2014 - 02/2019	1
53112F - GRILLE, RADIATOR, INSIDE
53112-24100	USC10	09/2014 - 11/2017	1
53112-24220	USC10	11/2017 - 02/2019	1
53117B - BRACKET, RADIATOR GRILLE, LOWER
52147-24050	USC10	09/2014 - 02/2019	1
53121A - MOULDING, RADIATOR GRILLE
53121-24040	USC10	09/2014 - 02/2019	1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-24020	USC10	09/2014 - 02/2019	1
53145G - CLIP, RADIATOR GRILLE
90467-05063C0	USC10 BLACK	09/2014 - 02/2019	1
Common parts
90119-06782
90167-40057
Linked diagrams
8408

USC10R-FCZRHW (2014)
