USC10R-FCZRHW (2014)
Toyota Lexus Rc F
Production
Sep 2014
-
Feb 2019
Engine
2URGSE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1409-1711)RHD
Click highlighted areas on diagram

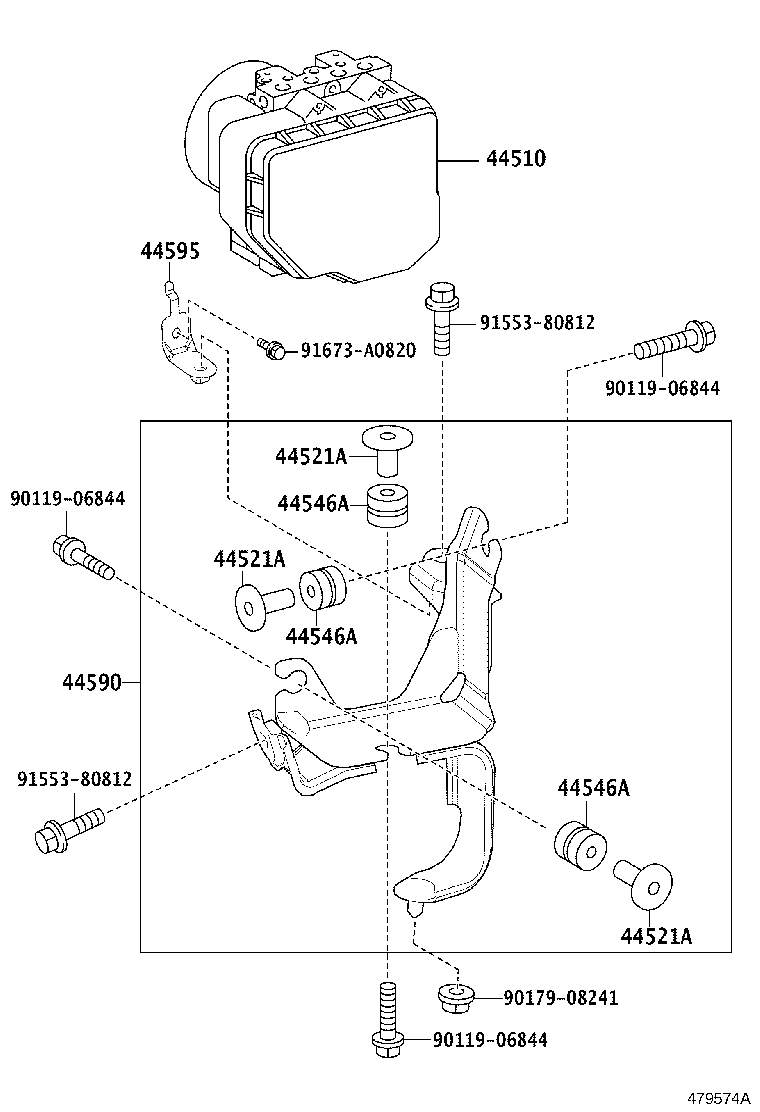

BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-24290 |
USC10 |
1 | ||
| 44050-24091 |
USC10 |
1 | ||
| 44050-24310 |
USC10 |
1 | ||
| 44050-24090 |
USC10 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
USC10 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
USC10 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
USC10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
USC10 |
3 | ||
| 44546-12120 |
USC10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
USC10 |
3 | ||
| 44546-12120 |
USC10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
USC10 |
3 | ||
| 44546-12120 |
USC10 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-24060 |
USC10..RHD |
1 | ||
| 44590-24010 |
USC10..RHD |
1 | ||
| 44595 - BRACKET, BRAKE ACTUATOR, NO.5 | ||||
| 44595-24010 |
USC10 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90179-08241 | ||||
| 91553-80812 | ||||
| 91673-A0820 | ||||
ILLUST NO. 1 OF 2(1409-1711)RHD
Click highlighted areas on diagram

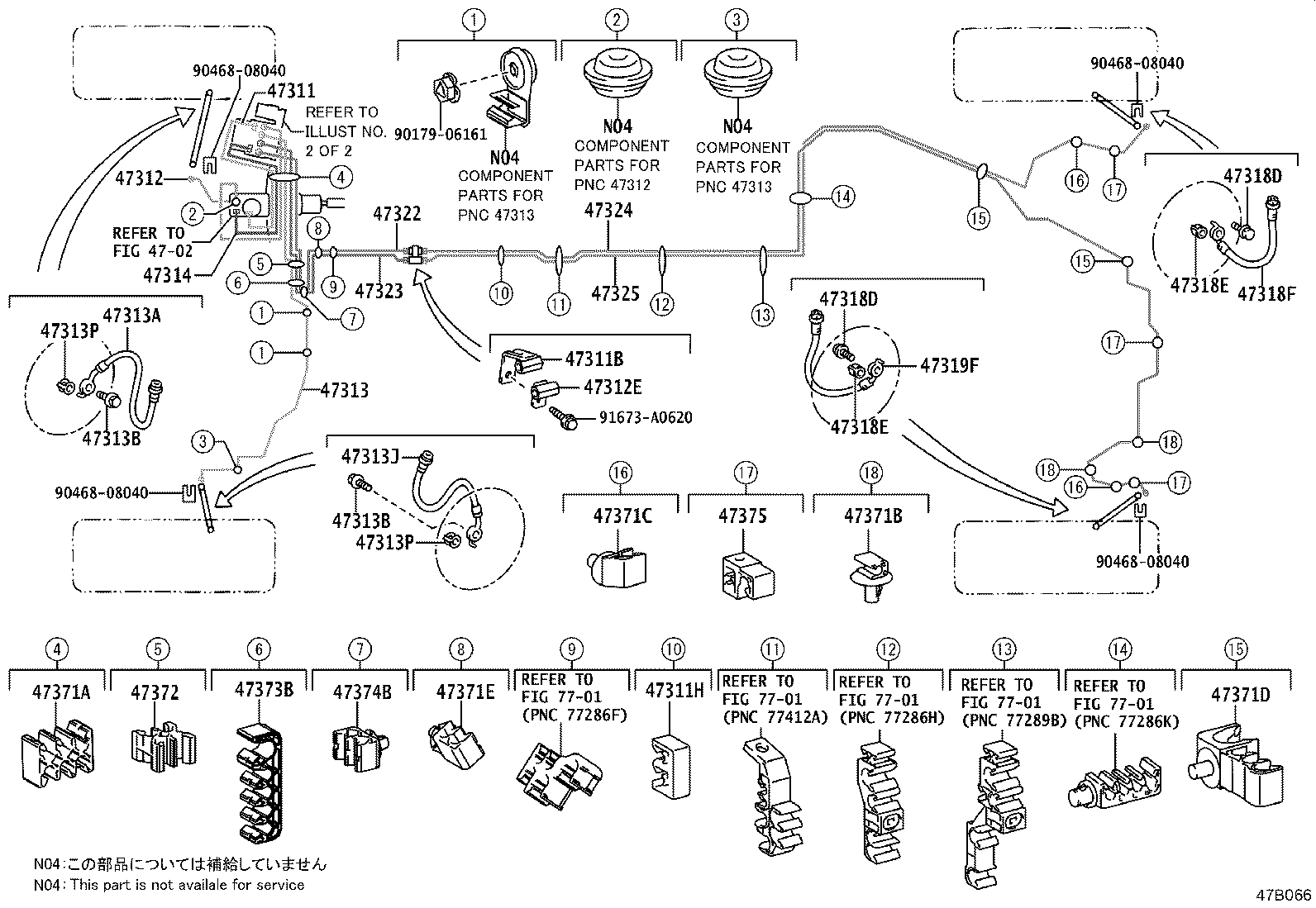

BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-24150 |
USC10..RHD |
1 | ||
| 47311-30730 |
USC10..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10297 |
USC10 |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01621 |
USC10 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30A40 |
USC10..RHD |
1 | ||
| 47312-24190 |
USC10..RHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10292 |
USC10 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-24190 |
USC10..RHD |
1 | ||
| 47313-30A60 |
USC10..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G57 |
USC10 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02G57 |
USC10 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47321-30480 |
USC10..RHD |
1 | ||
| 47321-24140 |
USC10..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H28 |
USC10 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H28 |
USC10 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-24180 |
USC10..RHD |
1 | ||
| 47322-30640 |
USC10..RHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-24090 |
USC10..RHD |
1 | ||
| 47323-30580 |
USC10..RHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-24051 |
USC10 |
1 | ||
| 47324-24050 |
USC10 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-24030 |
USC10 |
1 | ||
| 47325-24031 |
USC10 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01D52 |
USC10..RHD |
1 | ||
| 90464-00880 |
USC10..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D17 |
USC10 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D46 |
USC10 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 77286-30190 |
USC10 |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D13 |
USC10..RHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00876 |
USC10..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00910 |
USC10..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D12 |
USC10..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01C82 |
USC10 |
3 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90468-08040 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(1711- )RHD
Click highlighted areas on diagram

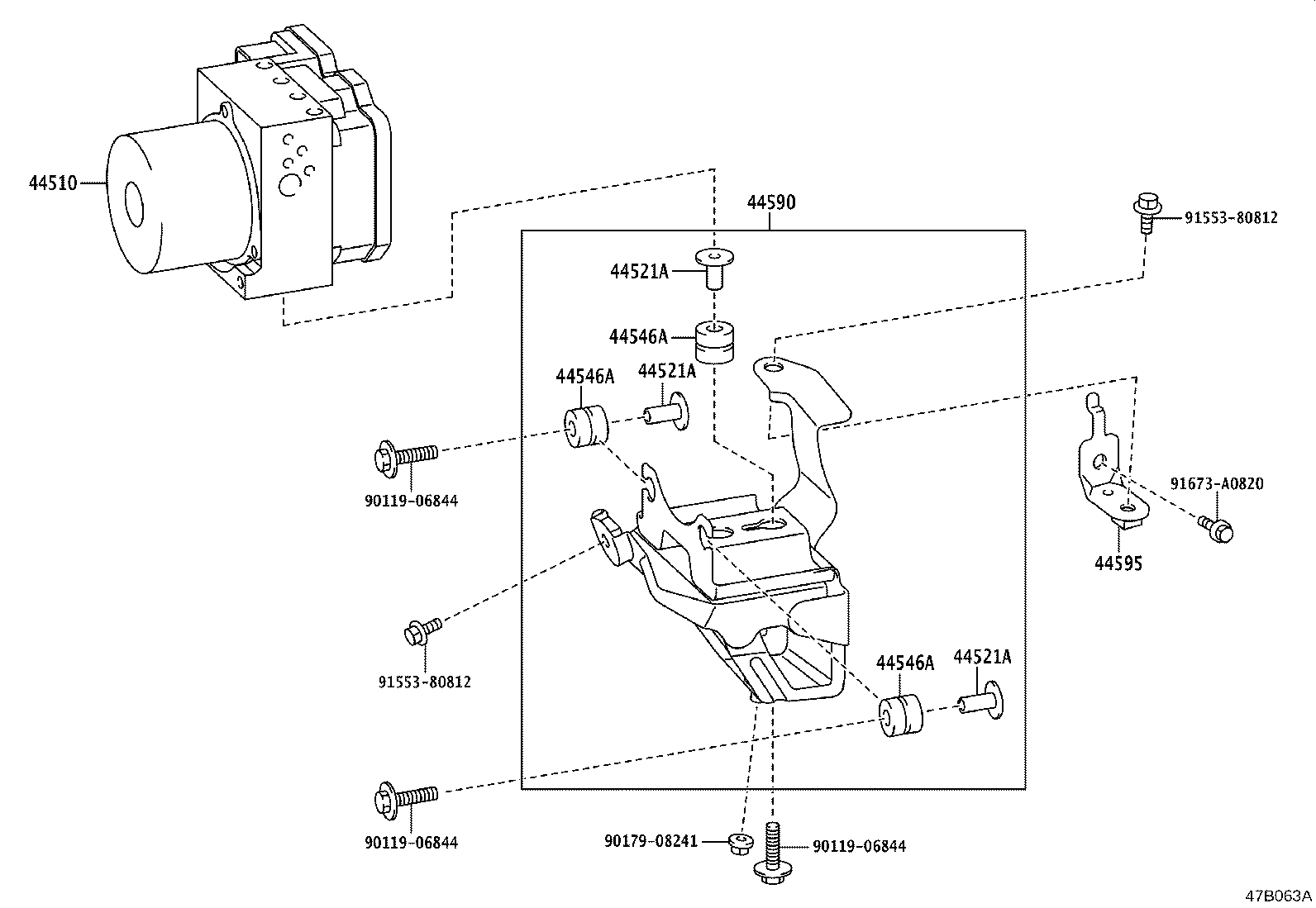

BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-24290 |
USC10 |
1 | ||
| 44050-24091 |
USC10 |
1 | ||
| 44050-24310 |
USC10 |
1 | ||
| 44050-24090 |
USC10 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
USC10 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
USC10 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
USC10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
USC10 |
3 | ||
| 44546-12120 |
USC10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
USC10 |
3 | ||
| 44546-12120 |
USC10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
USC10 |
3 | ||
| 44546-12120 |
USC10 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-24060 |
USC10..RHD |
1 | ||
| 44590-24010 |
USC10..RHD |
1 | ||
| 44595 - BRACKET, BRAKE ACTUATOR, NO.5 | ||||
| 44595-24010 |
USC10 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90179-08241 | ||||
| 91553-80812 | ||||
| 91673-A0820 | ||||
ILLUST NO. 1 OF 2(1711- )RHD
Click highlighted areas on diagram

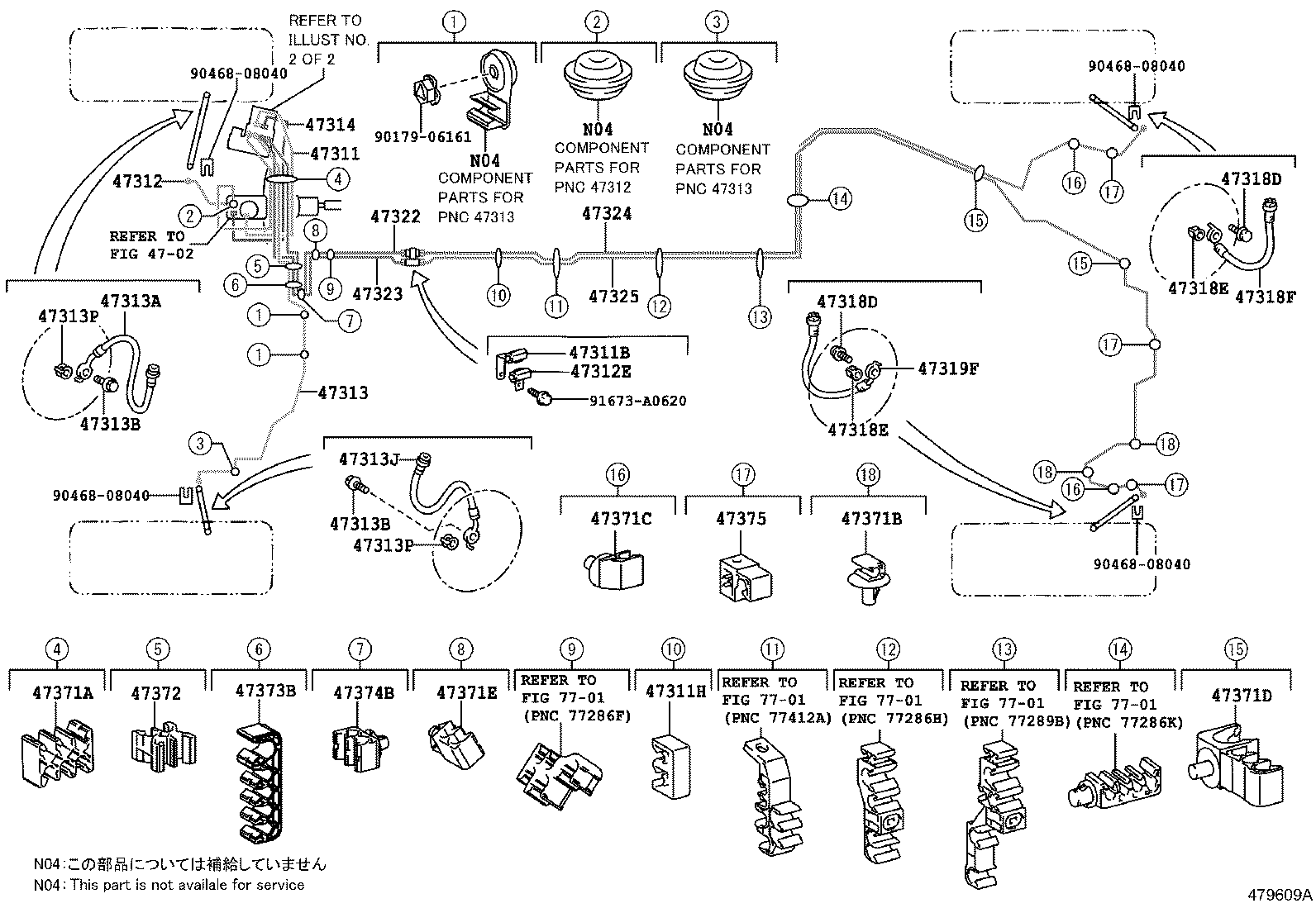

BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-24150 |
USC10..RHD |
1 | ||
| 47311-30730 |
USC10..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10297 |
USC10 |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01621 |
USC10 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30A40 |
USC10..RHD |
1 | ||
| 47312-24190 |
USC10..RHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10292 |
USC10 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-24190 |
USC10..RHD |
1 | ||
| 47313-30A60 |
USC10..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G57 |
USC10 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02G57 |
USC10 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47321-30480 |
USC10..RHD |
1 | ||
| 47321-24140 |
USC10..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
USC10 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
USC10 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H28 |
USC10 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H28 |
USC10 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-24180 |
USC10..RHD |
1 | ||
| 47322-30640 |
USC10..RHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-24090 |
USC10..RHD |
1 | ||
| 47323-30580 |
USC10..RHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-24051 |
USC10 |
1 | ||
| 47324-24050 |
USC10 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-24030 |
USC10 |
1 | ||
| 47325-24031 |
USC10 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01D52 |
USC10..RHD |
1 | ||
| 90464-00880 |
USC10..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D17 |
USC10 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D46 |
USC10 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 77286-30190 |
USC10 |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D13 |
USC10..RHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00876 |
USC10..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00910 |
USC10..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D12 |
USC10..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01C82 |
USC10 |
3 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90468-08040 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
