Toyota Lexus rc f USC10 VALVE BODY & OIL STRAINER (ATM)

Part #	Description	Period	Qty

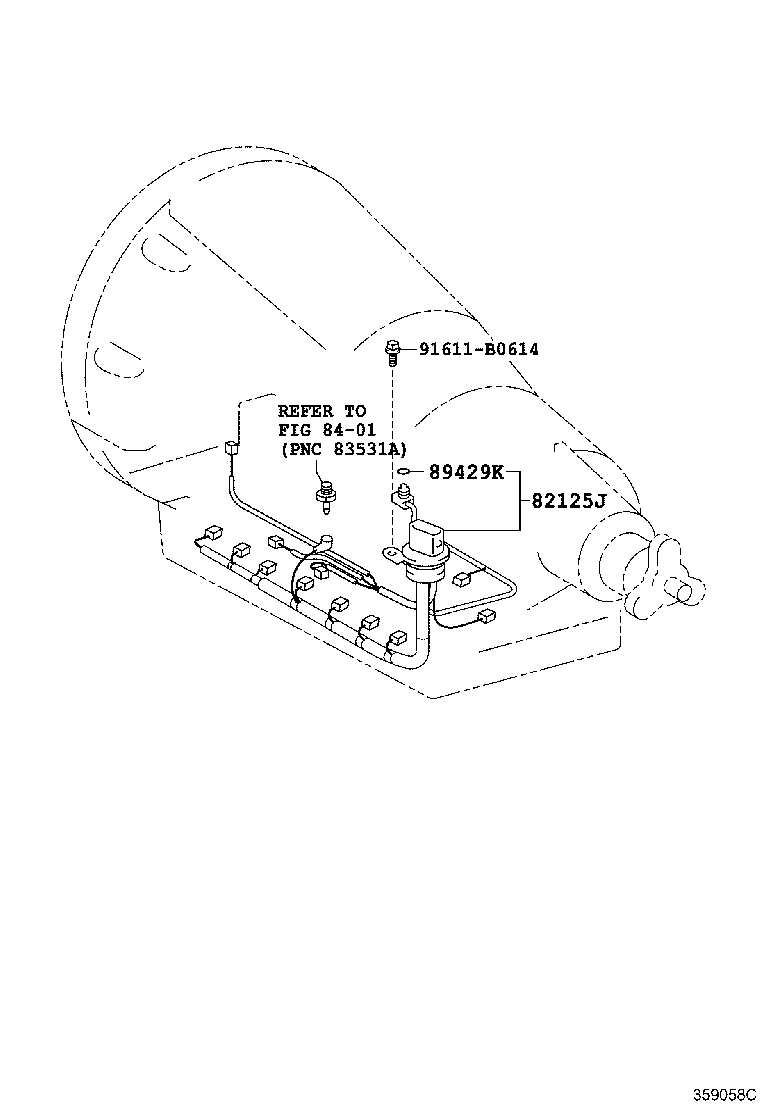

82125J - WIRE, TRANSMISSION
82125-50061	USC10	08/2018 - 02/2019	1
82125-50060	USC10	09/2014 - 07/2018	1
89429K - RING, O(FOR OIL TEMPERATURE SENSOR)
90301-06004	USC10	09/2014 - 02/2019	1
Common parts
91611-B0614
Linked diagrams
8401

Part #	Description	Period	Qty

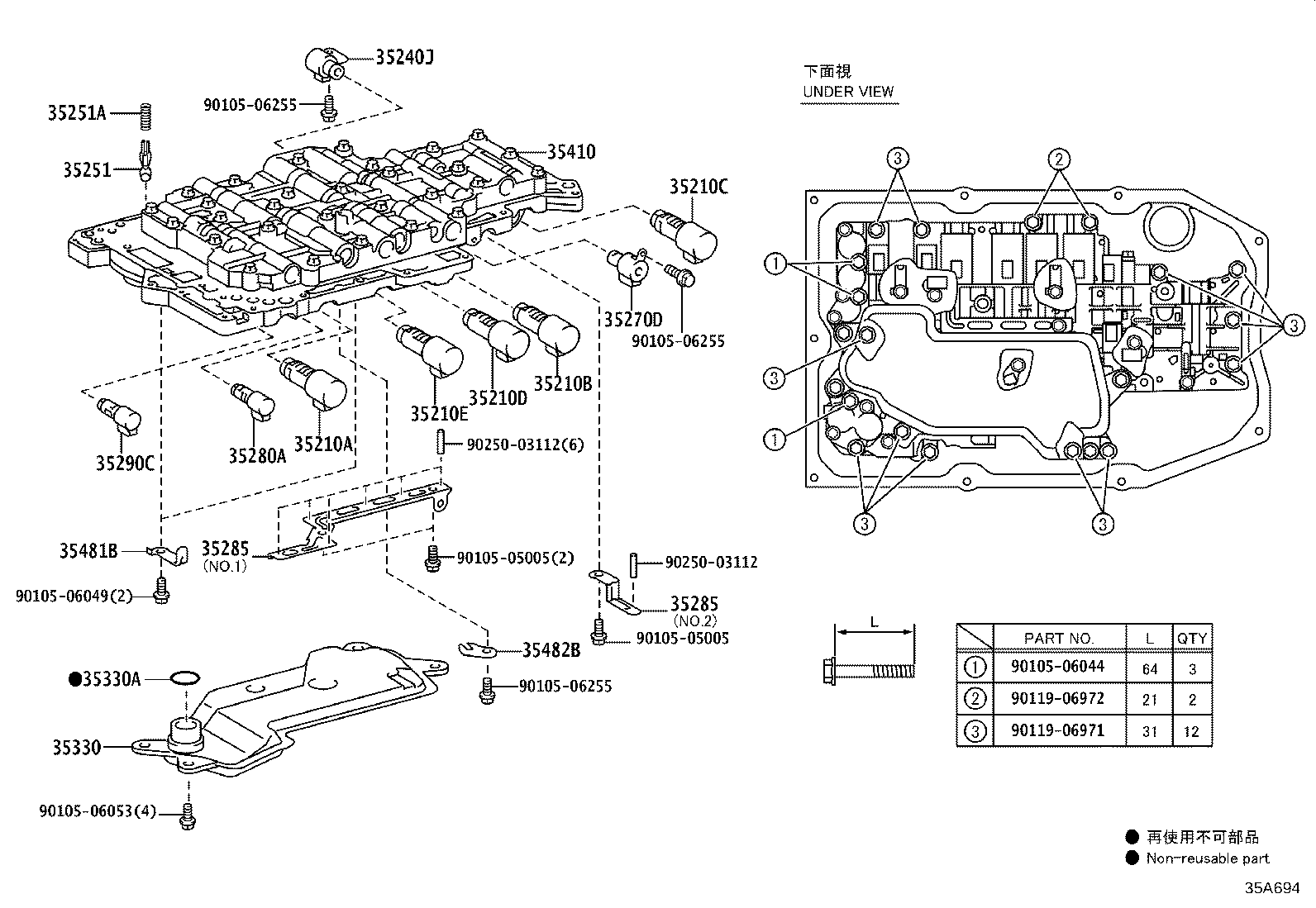

35210A - VALVE, SOLENOID(SL1)
35210-50040	USC10	09/2014 - 02/2019	1
35210B - VALVE, SOLENOID(SL3)
35210-50040	USC10	09/2014 - 02/2019	1
35210C - VALVE, SOLENOID(SL2)
35210-50070	USC10	09/2014 - 02/2019	1
35210D - VALVE, SOLENOID(SL4)
35210-50050	USC10	09/2014 - 02/2019	1
35210E - VALVE, SOLENOID(SL5)
35210-50060	USC10	09/2014 - 02/2019	1
35240J - VALVE, SOLENOID(SR)
35240-50090	USC10	09/2014 - 02/2019	1
35251 - BODY, CHECK BALL
35251-30020	USC10	09/2014 - 02/2019	1
35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005	USC10	09/2014 - 02/2019	1
35270D - VALVE, SOLENOID(SL)
35270-50020	USC10	09/2014 - 02/2019	1
35280A - VALVE, SOLENOID(SLU)
35280-50030	USC10	09/2014 - 02/2019	1
35285 - PLATE, SOLENOID LOCK
35285-50040	USC10 NO.1:REFER ILLUST.	09/2014 - 02/2019	1
35285-50050	USC10 NO.2:REFER ILLUST.	09/2014 - 02/2019	1
35285 - PLATE, SOLENOID LOCK
35285-50040	USC10 NO.1:REFER ILLUST.	09/2014 - 02/2019	1
35285-50050	USC10 NO.2:REFER ILLUST.	09/2014 - 02/2019	1
35290C - VALVE, SOLENOID(SLT)
35290-50020	USC10	09/2014 - 02/2019	1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-50030	USC10	09/2014 - 02/2019	1
35330A - RING, O (FOR OIL STRAINER)
90301-31014	USC10	09/2014 - 02/2019	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-24240	USC10	09/2014 - 02/2019	1
35481B - CLAMP, VALVE BODY WIRE HARNESS
35481-50050	USC10	09/2014 - 02/2019	2
35482B - CLAMP, TEMPERATURE SENSOR
35482-50020	USC10	09/2014 - 02/2019	1
Common parts
90105-05005
90105-06044
90105-06049
90105-06053
90105-06255
90119-06971
90119-06972
90250-03112

USC10R-FCZRHW (2014)
